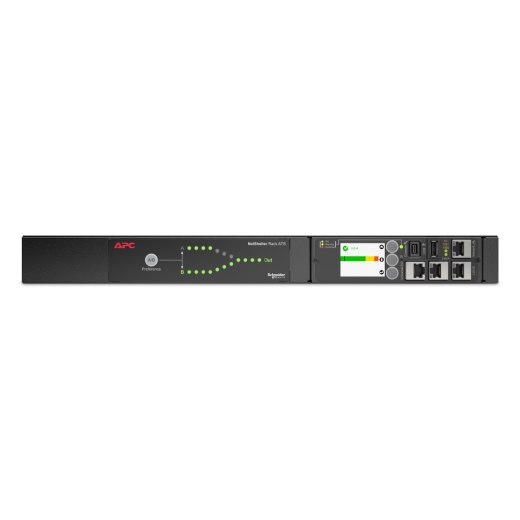

APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz

Favorite
Compara
Pretul afisat contine TVA (19%).

Compara

Rack Height

1U

Input Connections

IEC 60320 C14 10 A 2P + E
APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz
Intelligent and cyber-secure transfer switch for seamless power switching
Includes: Mounting hardware, Rack mounting brackets, Serial configuration cable

NetShelter Rack Transfer Switches Features & Benefits

Marketing features

Rack-Mountable

Occupys only 1U of valuable rack space. Puts the power where it is needed most – in the rack near the equipment.

Information Displays

Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.

Agility

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

Availability

Transfer time <10ms

Industry leading transfer time to ensure seamless ride through in the event of a primary power source failure.

Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

Protection

10 kAIC Overcurrent Protection

Provides protection in the event of a significant overcurrent event.

Manageability

Color LCD display

Provides more robust and intuitive local control and manageability.

Network Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web and SNMP. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.
SKU: AP4421A Categorii: ,

Output

Always on Outlets

12

Overload Protection

No

Input

Input frequency

50/60 Hz

Acceptable Input Voltage

207 – 253VAC

Load Capacity

2000VA

Maximum Line Current

10A

Regulatory Derated Input Current (North America)

10A

Physical

Maximum Height

44MM, 4.4CM

Maximum Width

432MM, 43.2CM

Maximum Depth

236MM, 23.6CM

Net Weight

3.93KG

Shipping weight

5.7KG

Shipping Height

114MM, 11.4CM

Shipping Width

600MM, 60.0CM

Shipping Depth

349MM, 34.9CM

Color

Black

Environmental

Operating Temperature

-5 – 45 °C

Operating Relative Humidity

5 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-25 – 65 °C

Storage Relative Humidity

5 – 95 %

Storage Elevation

0 – 15240meters

Conformance

Approvals

EN 55022 class A, FCC part 15 class A

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

Other Environmental Compliance

China RoHS
