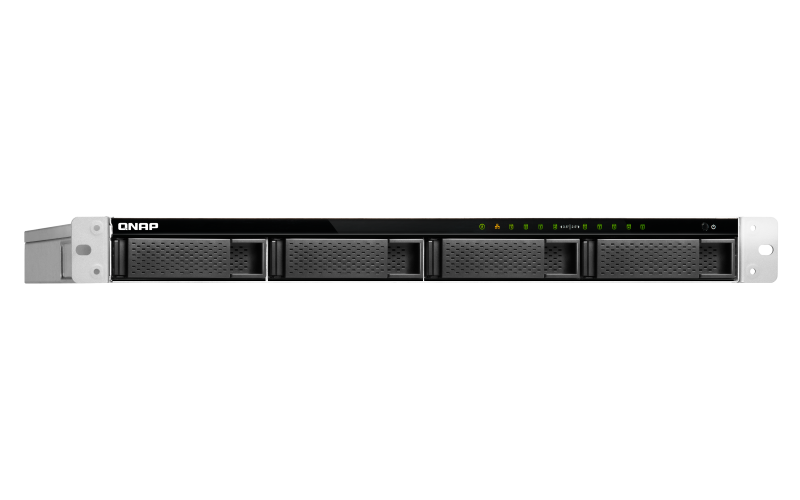

QNAP TS-983XU-E2124-8G

The Intel® Xeon® E based TS-983XU enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features Mellanox® ConnectX®-4 Lx 10GbE controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-983XU provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.

ECC memory forestalls data corruption to assure reliability.

The Intel® Xeon® E based TS-983XU uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-983XU supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-983XU can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64 GB RAM) of the TS-983XU for greater performance to tackle dynamically-changing workloads such as virtualization.

Server-grade hardware: Sturdy and expandable.

The TS-983XU features outstanding hardware and expandable architecture, enabling optimum performance and flexibility to fulfill business needs in performance and application diversification.

Dual 10GbE connectivity optimizes high-speed data transfer and VMware virtualization with iSER.

The TS-983XU provides two 10GbE SFP+ ports that use the Mellanox® ConnectX®-4 Lx SmartNIC controller. They support the iSCSI Extensions for RDMA (iSER) protocol, allowing data to bypass general network drivers, the socket layer, and to directly enter memory buffers of the ESXi server and storage to offload CPU workloads. When both the VMware® server and the TS-983XU support iSER, it can provide up to 60% increased random read/write performance and 50% decreased latency, providing an essential tool to optimize demanding virtualization applications.

Abundant I/O capability with PCIe expansion

The TS-983XU features 1 PCIe Gen3 slot that allows for the usage of various expansion cards to expand application potential.

Empower GPU-accelerated computing with graphics cards

Graphics cards are optimized for graphical calculations and transformations. The TS-983XU provides PCIe slots for installing an AMD Radeon™ or NVIDIA® graphics card to boost data-intensive AI machine learning, while also providing benefits for imaging processing and virtual machine performance (via GPU passthrough).

SSD caching and auto tiering enable 24/7 optimized storage efficiency.

By enabling Qtier™ auto-tiering on the TS-983XU, organizations can just buy the amount of SSDs needed, and attain the highest value/performance and optimal storage efficiency for data storage and sharing.

Improve random data access speeds with an SSD cache

SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. The TS-983XU also supports write-only SSD caches to greatly boost write-intensive applications and also RAID 5/6 SSD caches for higher performance and caching space.

Maximize the value of SSDs with Qtier Technology

Qtier™ Technology empowers the TS-983XU with auto tiering that helps continuously optimize storage efficiency by automatically moving data between 2.5-inch SSDs and high-capacity HDDs based on the data’s access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

SSD cache

Attain enterprise-grade SSD performance levels from affordable consumer SSDs

The TS-983XU supports software-defined SSD extra over-provisioning (OP) that allows you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TS-983XU, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs to enjoy faster file backups, smoother multimedia experiences, and optimized virtualization applications.

Seamlessly connect local storage with cloud object storage to easily backup local application data to the cloud.

Enabling local caching on NAS for low-latency access to the connected cloud services.

Integrated AI algorithm for auto photo organization and a powerful search tool for more intuitive and streamlined photo management.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell®, ATTO® or QNAP Fibre Channel card has been installed in the TS-983XU, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

Up to 128 monitoring channels in QVR Pro for well-rounded security surveillance

The TS-983XU supports QVR Pro surveillance solution with 8 license-free channels for surveillance monitoring, which can be expanded up to 128 channels* with additional channel license purchase for a more extensive security deployment. QVR Pro supports over 5,000 IP cameras, including all of the standard fisheye cameras available on the market. There are more advanced features for fully unleashing the potential of fisheye cameras: allowing a single fisheye camera’s image to be simultaneously viewed in nine channels from different angles, and cross-platform hardware-accelerated decoding for fisheye camera images. QVR Pro ensures higher surveillance performance for greater security while providing deployment flexibility and budget-savings.

Flexibly allocate physical and virtual network resources to simplify network deployment

The Network & Virtual Switch application allows you to leverage limited physical network resources for unlimited virtual applications and centrally manage the entire network structure with a brilliantly-visualized network topology map. Flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TS-983XU, virtual machines and containers whenever needed. The network deployment is greatly simplified while your network management efficiency is greatly improved.

Complete backup planning

The TS-983XU provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

Snapshots for Volume & LUN

Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable method for protecting data in the face of the growing threat of ransomware. The TS-983XU supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.

Hybrid Backup Sync

Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

VM backup

With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-983XU is perfect for backing up virtual machines.

Windows and Mac backup

Use the license-free QNAP NetBak Replicator utility to back up/restore files from Windows® computers. Time Machine® is fully supported for backing up Mac® computers.

Data backup & Disaster recovery

Block-based iSCSI LUN: Ideal choice for virtualization storage

The TS-983XU supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-983XU provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

Complete control over system status and data security

In open network environments, data on connected devices may be exposed in a potential hack. The TS-983XU provides numerous security options, such as encrypted access, IP blocking, 2-step verification, and more. Administrators can also control the access rights of each user to different folders, and use the following tools to enhance security management.

Security Counselor

Checks for NAS weaknesses and offers recommendations to secure your data against multiple attack methods. It also integrates anti-virus and anti-malware solutions to assist you in protecting your NAS.

Flexible and economical storage expansion

QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.

Attach Expansion Enclosures

Connect up to eight REXP-1620U-RP, REXP-1220U-RP, or other expansion enclosures.

Storage Expansion Compatibility

Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-983XU.

Upgrade RAID Capacity

Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.

Online RAID Capacity Upgrade

Migrate to a New NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Migrating from an old NAS

More productivity applications

A full-text search engine that helps quickly find specific images, music, videos, documents, and emails by using keywords and search conditions.

QmailAgent

Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.

Browser Station

Enable remote access through NAS browsers to access local LAN resources without requiring complex VPN settings.
