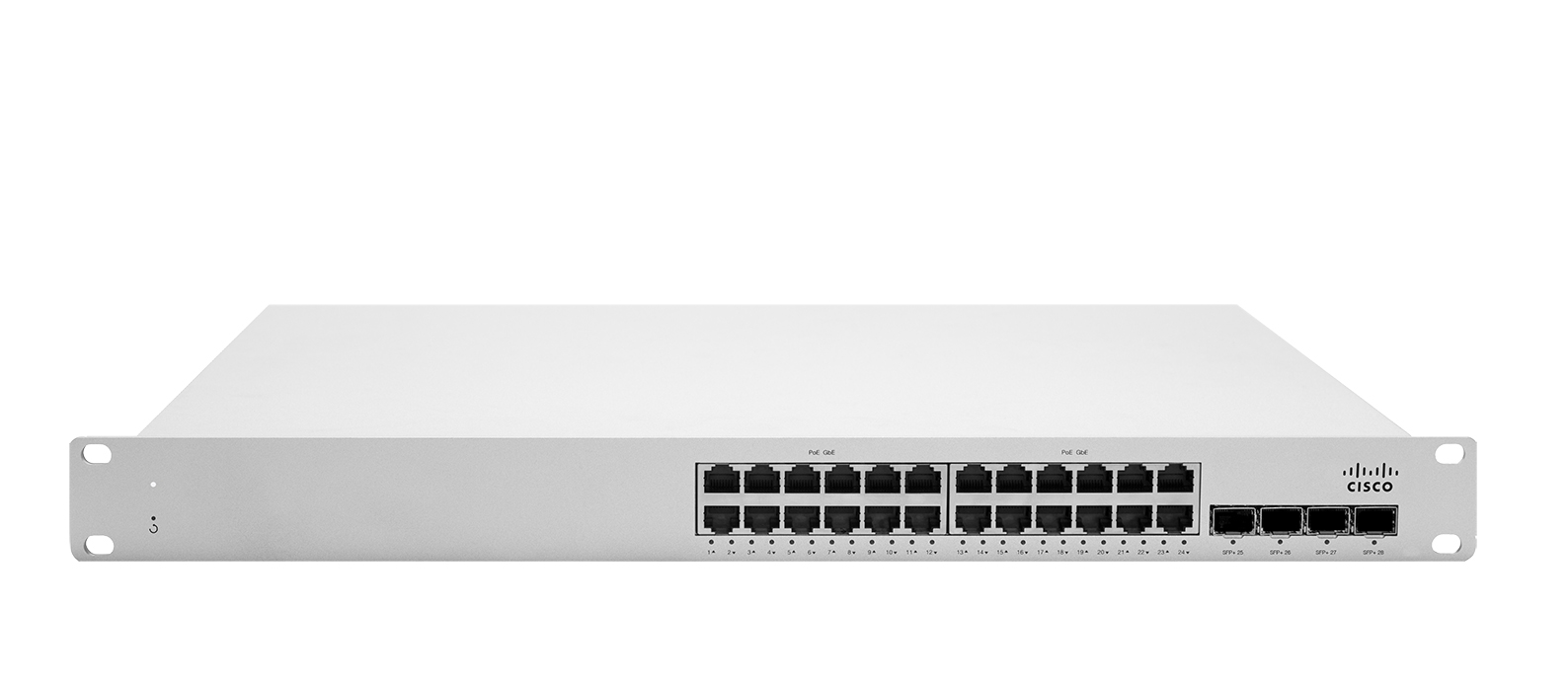

Meraki MS250-24


Cloud-Managed Stackable Switching Designed for the Branch & Campus

Stackable access switches with 10G SFP+ uplinks, designed for the branch and campus

The Cisco Meraki MS250 series provides 10G SFP+ uplinks for medium-size enterprises and campus networks. The switch includes optional PoE/PoE+ support, Layer 3 routing, and modular power for mission-critical networks. Our switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Pretul afisat contine TVA (19%).

23.240,85 lei

Compara

Meraki MS250-24 – stackable access switches with 10G SFP+ uplinks

Cloud management has a number of benefits that make it easier to build networks large and small:

  • Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
  • Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
  • Role-based administration
  • Firmware upgrades and enhancements from the Meraki cloud
  • Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
  • Incredible network transparency with application, operating system, client, and hostname visibility
  • Zero-touch provisioning for rapid deployment across sites.

Product Highlights

  • Gigabit access switching with 24- and 48- port models and optional PoE+ support
  • 4 x 10G SFP+ uplink interfaces on all models
  • Dual stacking interfaces with up to 80 Gbps of bandwidth
  • Support for field replaceable, redundant power supplies
  • Non-blocking switch backplane with up to 176 Gbps of switching capacity
  • 6 configurable QoS queues for converged voice, video, and data applications
  • Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE-enabled devices
  • Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
  • Integrated mounting brackets for rack mounting
  • Lifetime hardware warranty and advanced replacement at no additional cost.

Access Switching

  • High-bandwidth physical stacking with support for up to 8 stack members for built-in redundancy and performance
  • Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multichassis (MLAG) support on stacked switches
  • Static and dynamic routing support with DHCP relay and server capabilities
  • Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
  • Voice VLAN support for simplified VoIP deployments
  • CDP, LLDP advertisement and snooping, with detailed neighbor visibility and discovery
  • Port Mirroring to monitor network traffic
  • IGMP Snooping to optimize network performance for multicast applications

Network Security

  • IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
  • ACL support (IPv4 & IPv6) and MAC whitelisting
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Change of Authorization (CoA) and RADIUS accounting support
  • DHCP snooping to protect against rogue DHCP servers on the network
  • Dynamic ARP Inspection to prevent man-in-the-middle attacks
  • Rapid Spanning Tree, BPDU guard, root guard, loop guard, and other safeguards to help prevent misconfigurations and reduce convergence time
  • Per port VLAN configuration
  • Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

  • Virtual Stacking helps IT admins make configuration changes to hundreds of switch ports in seconds with our intuitive dashboard interface
  • Configuration templates for rapid, zero-touch provisioning and auditing of all sites
  • Network Topology for automatic and interactive network mapping
  • Remote cable testing, packet capture and client discovery
  • Automatic and scheduled firmware upgrades for the complete network.

Converged Voice, Video and Data Environments

The Meraki switch family is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality-of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.PoE models provide power to VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. Using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

Application Layer Visibility

Meraki switches include integrated Layer 7 fingerprinting without the need to purchase additional modules or services. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting allows administrators to quickly identify individual users by device and tune network resources for optimum performance.

Unified Software

Architecture

Meraki switches run the same operating system used by all of our products. The use of a common operating system allows us to deliver a consistent experience across all product lines, from our security appliances to cameras. When connected, new MS250 switches automatically reach out to the Meraki cloud and download the most current network configuration. Future updates can be user-scheduled. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.

Switch ports/stacking ports
  • 24 × 1G port models
  • 4 × 10G SFP+ uplinks
  • Stack up to 8 units
  • 80 Gbps of physical stacking
Power/PoE
  • Unpowered model
  • MS250-24P includes 370W
  • Up to 30W per port
  • Modular power supply
Hardware platform
  • Reliable platform with 24/7 Meraki Support
  • 1RU rack mountable
  • Non-blocking switch fabric
  • Voice and video QoS
  • Non-blocking switching fabric
Cloud management
  • Email alerts for switch management
  • Remote troubleshooting tools
  • Manage ports from a GUI-based dashboard
  • Zero-touch provisioning
  • Per-port and per-client usage statistics
  • Secure, user-scheduled firmware updates
Switching capabilities
  • Layer 3
  • Warm spare redundancy (VRRP)
  • OSPF Routing
  • MAC forwarding entries, up to 32K
  • DHCP Server, DHCP Relay
  • 802.1X Authentication
  • DHCP Snooping
  • STP Enhancements
  • IPv4 and IPv6 ACLs
SKU: MS250-24-HW Categorii: , ,
  • Interfaces
    • 24 × 10/100/1000BASE-T Ethernet (RJ45)
    • 4 × 10G SFP+ ports for uplinks
    • 2 × stacking interfaces
    • Auto negotiation and crossover detection
  • Management
    • Managed via the Web using the Meraki cloud management platform
    • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
    • Zero-touch remote deployment (no staging needed)
    • Detailed historical per-port and per-client usage statistics
    • Operating system, device, and hostname fingerprinting
    • SNMP and SYSLOG support for integration with other network management solutions
    • Automatic firmware upgrades with scheduling control
  • Remote Diagnostics
    • Email, SMS and Mobile push notification alerts
    • Ping, traceroute, cable testing, and link failure detection with alerting
    • Remote packet capture
    • Dynamic and interactive network discovery and topology
    • Combined event and configuration change logs with instant search
  • Stacking
    • Physical stacking of up to 8 switches with 160 Gbps stack bandwidth on all models
    • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
  • Ethernet Switching Capabilities
    • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
    • 802.1Q VLAN and trunking support for up to 4,094 VLANs
    • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
    • STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
    • Broadcast storm control
    • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
    • 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
    • Port mirroring
    • IGMP snooping for multicast filtering
    • MAC forwarding entries: 16K
  • Security
    • Integrated multi-factor authentication for Dashboard management
    • Role-based access control (RBAC) with granular device and configuration control
    • Corporate-wide password policy enforcement
    • IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
    • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
    • Port security: Sticky MAC, MAC whitelisting
    • DHCP snooping, detection and blocking, Dynamic ARP Inspection
    • IPv4 and IPv6 ACLs
  • Performance
    • Switching capacity: 128 Gbps
    • Forwarding rate: 95.24 mpps
    • Jumbo frame support (9600 byte Ethernet frame)
    • Flow control support
  • Layer 3
    • Static routing, OSFPv2
    • Multicast routing
    • Warm Spare (VRRP)2
    • DHCP Relay, DHCP Server
  • Power
    • Power input: 100-240 VAC, 47-63 Hz
    • MS250-24: 14-27 W max
    • MS250-24P: 15-434 W max
    • 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) available on all ports (maximum of 30W per port for PoE+) for powered switches
  • Mounting
    • 1U Rack-mountable with included rack mount hardware
    • 2-post front mounting options available
  • Environment
    • Operating temperature: -5°C to 50°C
    • Humidity: 5 to 95% non-condensing
    • Variable speed fans
  • Regulatory
    • CSA-US (US, Canada)
    • FCC (USA)
    • IC (Canada)
    • CE (Europe)
    • RCM (Australia/New Zealand)
    • RoHS
    • For international availability, please contact sales@meraki.com
  • Warranty
    • Full lifetime hardware warranty with next-day advanced replacement included
  • MTBF at 25°C
    • MS250-24-HW: 633,811
    • MS250-24P-HW: 403,717
  • Physical Specifications (H × W × D)
    • MS250-24-HW
      • 1.72 × 19.08 × 14.89″ (4.38 × 48.46 × 37.8cm)
      • 9.9 lb (4.5 kg)
    • MS250-24P-HW
      • 1.72 × 19.08 × 14.89″ (4.38 × 48.46 × 37.8cm)
      • 10.59 lb (4.8 kg)
