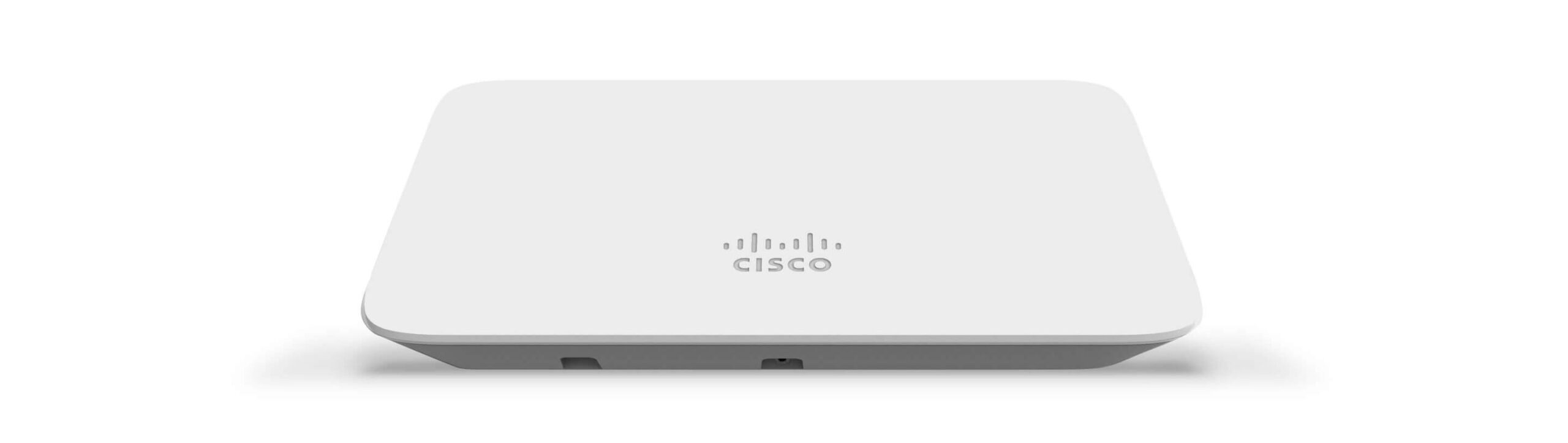

Meraki MR20

Entry-level enterprise wireless

Cloud management, 802.11ac Wave 2 performance for
small businesses and SOHO deployments

The Cisco Meraki MR20 is a dual-radio, cloud-managed 2×2:2 802.11ac Wave 2 access point with MU-MIMO support. Designed for basic, very low-density deployments, the MR20 provides enterprise-grade security and simple management. The MR20 delivers a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios.

Pretul afisat contine TVA (19%).

1.431,09 lei


Meraki MR20 – Dual-band, 802.11ac Wave 2 access point delivering entry-level enterprise wireless for small businesses and SOHO deployments

Ideal use cases

  • Basic wireless LANs
  • Very low-density deployments
  • Small business and SOHO wireless
Hardware features
  • 2 radios: 2.4 GHz and 5 GHz
  • 2-stream 802.11ac Wave 2 (MU-MIMO), up to 1.3 Gbps dual aggregate frame rate
  • No dedicated security and scanning radio
  • No dedicated Bluetooth Low Energy radio
  • 1 × Gigabit Ethernet port
  • PoE: 802.3at (compatible with 802.3af)
  • AC adapter available
Cloud management
  • Network-wide visibility and control
  • Integrated analytics, reporting, and anomaly detection across networks
  • Self-provisioning for rapid deployment
  • Seamless firmware updates
  • Redundancy and security built into cloud architecture
  • Location analytics: measure visitor capture rate, visit length, and repeat visit rate over time and across sites
  • Global L7 traffic analytics reporting per device, network, and application
Enterprise security
  • 802.1X and native Active Directory integration
  • Stateful Layer 3-7 firewall
  • Identity-based group policies
  • Built-in antivirus scan (NAC)
Guest access
  • 1-click secure guest access
  • Guest isolation firewall
  • Customizable splash pages
  • Integrated Facebook and Google login
  • Cisco ISE integration for guest access and BYOD posturing
Layer 7 traffic shaping
  • Classifies hundreds of applications
  • Create per-application bandwidth limits
  • Prioritize productivity apps
  • Restrict or block recreational traffic
Device management
  • Create device-specific firewall rules
  • Monitor and track device inventory
  • Deploy applications and enforce security settings
  • Enterprise Mobility Management (EMM) and Mobility Device Management (MDM) integration
  • The combination of intuitive cloud management, 802.11ac Wave 2 wireless, and enterprise-grade security provide safe, reliable WiFi for small business and home office networks that want basic connectivity.MR20 and Meraki cloud management: a powerful combinationThe MR20 is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Because the access point is monitored 24×7 by the Meraki cloud, the MR20 can deliver real-time alerts if the network encounters problems, and diagnostic tools enable real-time troubleshooting over the web. The MR20’s firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, meaning no manual software updates to download or missing security patches to worry about.Product Highlights• 2×2 MU-MIMO 802.11ac Wave 2 • 1.3 Gbps* aggregate dual-band frame rate• Integrated enterprise security and guest access• Built-in WIPS for threat detection and remediation• Application-aware traffic shaping• Self-configuring, plug-and-play deployment• Integrated location analytics and heat map* Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE 802.11ac-compliant operation.
  • FeaturesAggregate data rate of up to 1.3 Gbps*A 5 GHz 2×2:2 radio supporting 80 MHz channel widths and a 2.4 GHz 2×2:2 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 1.3 Gbps*, with up to 866 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 400 Mbps in the 2.4 GHz band.Multi User Multiple Input Multiple Output (MU-MIMO)With support for the 802.11ac Wave 2 standard, the MR20 offers MU-MIMO for more efficient transmission to multiple clients. This increases the total network performance and the improves the end user experience.Integrated enterprise security and guest accessThe MR20 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control.Secure wireless environments using Air MarshalThe MR20 comes equipped with Air Marshal, a built-in wireless intrusion prevention system (WIPS) for threat detection and attack remediation. MR20 access points will scan their environment opportunistically based on user-defined preferences. Alarms and auto-containment of malicious rogue APs are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.Application-aware traffic shapingThe MR20 includes an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.Self-configuring, self-optimizing, self-healingWhen plugged in, the MR20 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. It self-optimizes, determining the ideal channel, transmit power, and client connection parameters. And it self-heals in the event of a switch or cable failure by meshing with nearby Meraki access points, providing continued gateway.Integrated analyticsDrill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with built-in location analytics that enables you to view visitor numbers, dwell time, repeat visit rates, and track foot traffic trends.
SKU: MR20-HW Categorii: , ,
  • Radios
    • 2.4 GHz 802.11b/g/n/ac client access radio
    • 5 GHz 802.11a/n/ac Wave 2 client access radio
  • Operating Bands
      • 2.412-2.484 GHz
      • 5.150-5.250 GHz (UNII-1)
      • 5.250-5.350 GHZ (UNII-2)
      • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
      • 5.725 -5.825 GHz (UNII-3)
  • 802.11ac & 802.11n Capabilities
    • 2×2 multiple input, multiple output (MIMO) with two spatial streams
    • Maximal ratio combining (MRC)
    • Beamforming
    • 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
    • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
    • Packet aggregation
  • Power
    • Power over Ethernet: 37-57 V (802.3at compatible)
    • Alternative 12 V DC input
    • Power consumption: 15W max (802.3af)
    • Power over Ethernet injector sold separately
  • Mounting
    • All standard mounting hardware included
    • Desktop, ceiling, and wall mount capable
  • Physical Security
    • Two security screw options included
    • Concealed mount plate with anti-tamper cable bay
  • Environment
    • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
    • Humidity: 5 to 95% non-condensing
  • Physical Dimensions
    • 7.95″ × 4.88″ × 1.02″ (202 mm × 124 mm × 25.8 mm), not including deskmount feet or mount plate
    • Weight: 9.6 oz (272 g)
  • Antenna
    • Integrated omni-directional antennas (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)
  • Interfaces
    • 1× 10/100/1000 BASE-T Ethernet (RJ45)
    • 1× DC power connector (5.5 mm × 2.5 mm, center positive)
  • Security
    • Integrated Layer 7 firewall with mobile device policy management
    • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
    • Flexible guest access with device isolation
    • VLAN tagging (802.1Q) and tunneling with IPSec VPN
    • PCI compliance reporting
    • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
    • TKIP and AES encryption
    • Enterprise Mobility Management (EMM) and Mobile Device Management (MDM) integration
  • Quality of Service
    • Advanced Power Save (U-APSD)
    • WMM Access Categories with DSCP and 802.1p support
    • Layer 7 application traffic identification and shaping
  • Mobility
    • PMK, OKC, and 802.11r for fast Layer 2 roaming
    • Distributed or centralized Layer 3 roaming
  • LED Indicators
    • 2 Ethernet status for Ethernet ports
    • 1 power/booting/firmware upgrade status
  • Warranty
    • Lifetime hardware warranty with advanced replacement included
  • Compliance
    • Safety Approvals
      • UL 60950-1
      • CAN/CSA-C22.2 No. 60950-1
      • IEC 60950-1
      • EN 60950-1
    • Radio Approvals
      • Canada: FCC Part 15C, 15E, RSS-247
      • Europe: EN 300 328, EN 301 893
      • Australia/NZ: AS/NZS 4268
      • Mexico: NOM-121
      • For additional country-specific regulatory information, please contact Meraki Sales
    • EMI Approvals (Class B)
      • Canada: FCC Part 15B, ICES-003
      • Europe: EN 301 489-1-17, EN 55032, EN 55024
      • Australia/NZ: CISPR 32
    • Exposure Approvals
      • Canada: FCC Part 2, RSS-102
      • Europe: EN 50385, EN 62311
      • Australia: AS/NZS 2772
  • Ordering Information
    • MR20-HW: Meraki MR20 Cloud Managed 802.11ac AP
    • MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)
    • MA-INJ-4-XX: Cisco Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
    • Note: Meraki Enterprise license required
