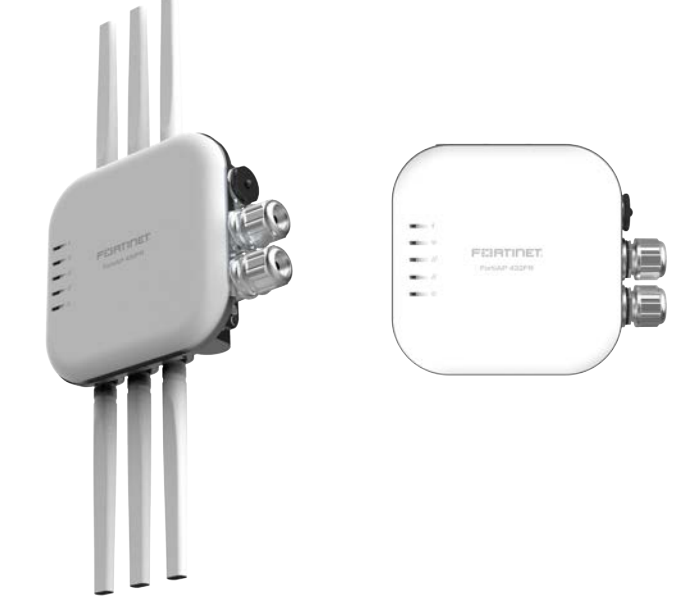

FortiAP 432FR (FAP-432FR)
Access Point wireless securizat Fortinet
FortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiEdge Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
Caracteristici principale
Specificatii tehnice
| Specificatie | FortiAP 432FR |
|---|---|
| Hardware | |
| Hardware Type | Indoor / Outdoor / Industrial AP |
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 4 dual band WiFi + 1 dual band scanning + 1 single band 2.4 GHz BLE/ZigBee |
| Antenna Type Support | N-Type (5 total): Dual Band Antenna (5) |
| Antenna Type and Peak | WiFi and scanning radio dual band antenna: 5.5 dBi in |
| Gain | 2.4 GHz and 7.2 dBi in 5 GHz band BLE antenna: 5.0 dBi in 2.4 GHz band |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | Frequency band: 2.4 GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 4×4 Service |
| Radio 2 Capabilities | Frequency band: 5.0 GHz Channel width: 4×4 20/40/80MHz and 2×2 160 MHz contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 MIMO Chains: 4×4 Service |
| Radio 3 Capabilities | Frequency bands: 2.4 GHz and 5.0 GHz MIMO Chains: 1×1 Frequency Scanning |
| Maximum Data Rate | Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: Frequency scanning only |
| Bluetooth Low Energy | Bluetooth scanning and iBeacon advertisement @ 10 dBm |
| Radio | max TX power |
| Interfaces | 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45 (802.3af PoE PSE), 1x RS-232 RJ45 Serial Port |
| MDI/MDIX | Supported Supported |
| Simultaneous SSIDs | Up to 8 per client serving radio (7 if background scanning is enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, EAP‑TTLS/PAP |
| User/Device Authentication | WPAâ„¢, WPA2â„¢, and WPA3â„¢ with 802.1x or preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
| Maximum Tx Power | Indoor / Outdoor / Industrial: |
| (Conducted) | Radio 1: 2.4 GHz 29 dBm / 794 mW (4 chains combined)* Radio 2: 5 GHz 28 dBm / 630 mW (4 chains combined)* Radio 3: N/A |
| Kensington Lock | No |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11u, 802.11v 802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bt, 802.3bz |
| SSIDs Supported | Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1 and Radio2) |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| OFDMA | Yes (UL and DL) |
| Spatial Reuse (BSS | Yes |
| Coloring) | |
| UL MU-MIMO | Yes |
| DL-MU-MIMO | Yes |
| Enhanced Target Wake | Yes |
| Time (TWT) | |
| ZeroWait DFS | No FortiGate, FortiEdge Cloud, or SASE-managed access p |
