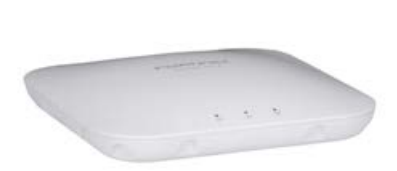

FortiAP 441K (FAP-441K)
Access Point wireless securizat Fortinet
FortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiEdge Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
Caracteristici principale
Specificatii tehnice
| Specificatie | FortiAP 441K |
|---|---|
| Hardware | |
| Type | Indoor AP |
| Number of Radios | 4 + 1 BLE |
| Number of Antennas | Internal: x4 dual band WIFI + External: x4 dual band WI x4 6GHz WIFI + x2 Tri-band x4 6GHz WIFI + x2 Tri‑b scanning + x1 2.4GHz BLE/ scanning ZigBee + x1 GPS Internal: x1 2.4GHz BLE/ ZigBee + x1 GPS |
| Antenna Type Support | RP-SMA (10 total Dual Band Antenna 6Ghz Antenna (4) Triband Antenna ( |

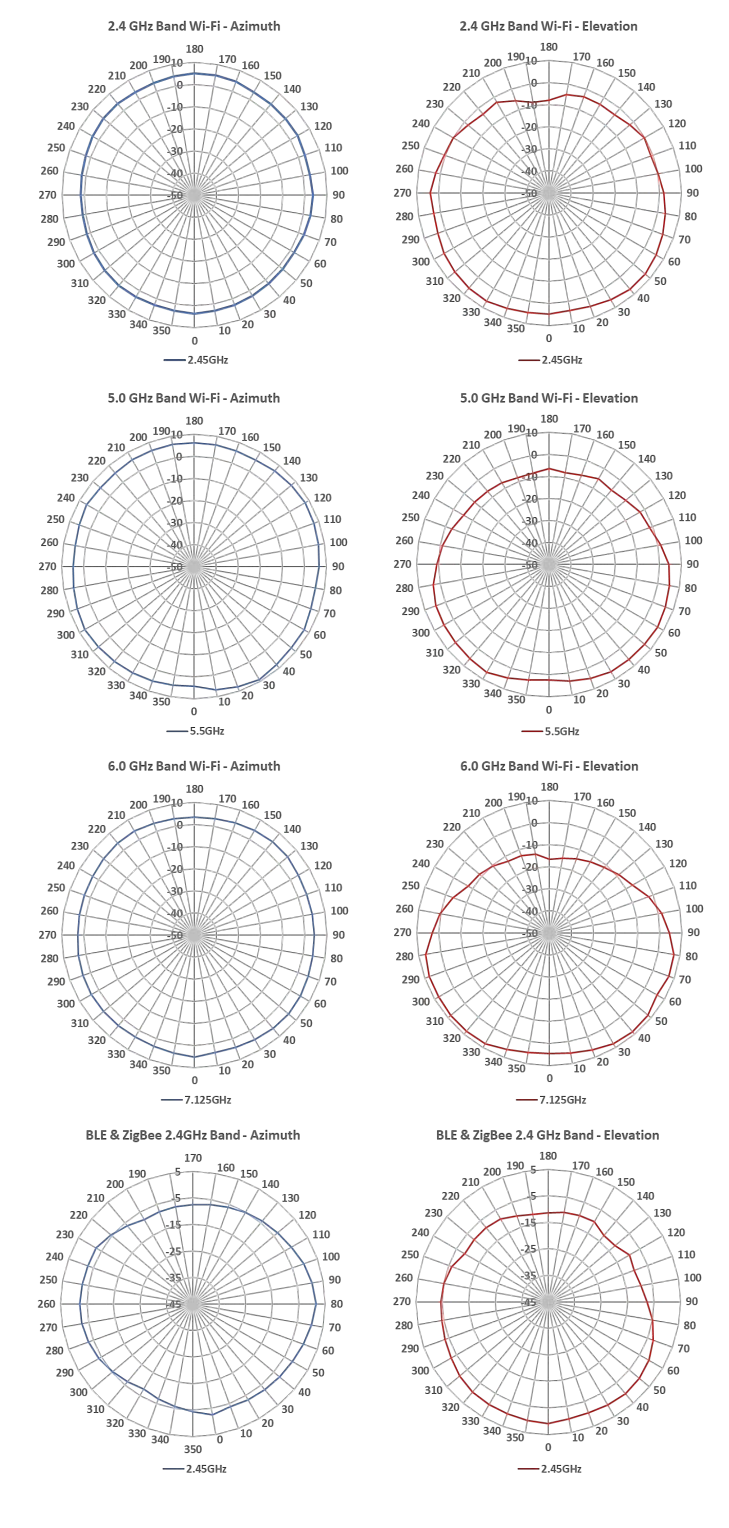

| Antenna Type and Peak Gain | Omni Directional Antenna Omni Directional Antenna Dual band antenna: Dual band antenna: 4.0 dBi for 2.4GHz 5.0 dBi for 2.4GHz 5.6 dBi for 5 GHz 5.0 dBi for 5 GHz 6GHz antenna: 6GHz antenna: 5.4dBi for 6GHz band 5.8dBi for 6GHz band Tri-band antenna: Tri-band antenna: 4.0 dBi for 2.4 GHz, 5.0 dBi for 2.4 GHz, 6.0 dBi for 5 GHz and 5.0 dBi for 5 GHz and 5.7 dBi for 6 GHz band 4.0 dBi for 6 GHz band BLE antenna: BLE antenna: 5.1 dBi for 2.4GHz 5.1 dBi for 2.4GHz GPS active antenna: GPS active antenna: 2.2 dBi antenna 2.2 dBi antenna |
| Frequency Bands (GHz) | . ISM 2.4‑2.484 GHz · U-NII-4 5.850‑5. · U-NII-1 5.15‑5.25 GHz · U-NII-5 5.925‑6 · U-NII-2A 5.25‑5.35 GHz · U-NII-6 6.425‑6 · U-NII-2C 5.47‑5.725 GHz · U-NII-7 6.525‑6 · U-NII-3 5.725‑5.85 GHz · U-NII-8 6.875‑7 |
| Radio 1 Capabilities | Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 4×4 Service |
| Radio 2 Capabilities | Frequency band: 5.0GHz UNII-1 to UNII-4 Channel width: 20/40/80/160/240MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 4×4 Service |
| Radio 3 Capabilities | Frequency band: 6.0GHz UNII-5 to UNII-8 Channel width: 20/40/80/160/320MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 4×4 Service |
| Radio 4 Capabilities | Frequency band: 2.4/5.0/6.0GHz Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2×2 Scanning |
| Maximum Data Rate | 2.4GHz band: up to 1.148 Gbps 5.0GHz band: up to 8.648 Gbps 6.0GHz band: up to 11.530 Gbps |
| Bluetooth Low Energy | Bluetooth scanning and iBeacon advertizement |
| (BT/BLE) Radio | @10 dBm max TX power |
| Trusted Platform Module | Yes Yes |
| (TPM) | |
| GNSS | . Supported Bands GPS L1 C/A, QZSS L1 C/A: . Default constallations 1575.42 MHz, . Number of Tracking Channels GLONASS L1: 1598.0625–1605.375 MHz . Number of Concurrent GNSS BDS B1I : 1561.098 MHz, . SBAS Galileo E1: 1575.42 MHz . Sensitivity (@ Default GPS + GLONASS + BDS + Constallations) Galileo + QZSS 47 5 WAAS, EGNOS, MSAS and GAGAN -147dBm |
| Interfaces | x2 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45) x1 Type 3.0 USB at 4.5W, x1 RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | LAN1:802.3bt, LAN2:802.3bt |
| Hit-less PoE Failover | Yes FortiGate, FortiEdge Cloud, or SASE-managed access points |
