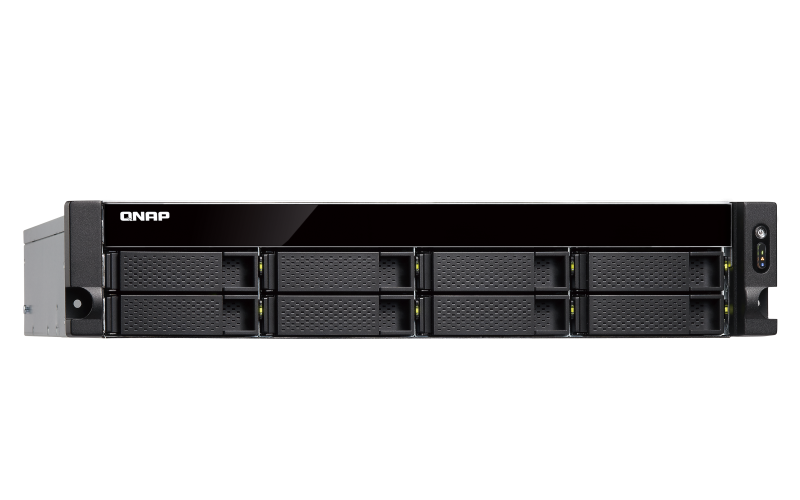

QNAP TVS-872XU-RP-i3-4G


8th Gen Intel® Core™ processors. Built-in Mellanox® ConnectX®-4 Lx 10GbE Controller. iSER supported. Intel® Core™ i3-8100 quad-core 3.6 GHz processor, 4 GB RAM (4 GB x1)

Pretul afisat contine TVA (19%).

15.104,88 lei

Compara

Designed for diversified business IT environments, the TVS-872XU-RP features an 8th generation Intel® Core™ processor, Mellanox® ConnectX®-4 Lx 10GbE controller, and PCIe expansion for 25GbE / 40GbE connectivity to boost intensive large file sharing, heavily-loaded backups, or virtualization applications. PCIe expandability also allows for installing graphics cards to empower AI workflows and video transcoding, and the 4K HDMI 2.0 output can display surveillance videos on a monitor or TV to improve surveillance management. The TVS-872XU-RP also features a redundant power supply to ensure maximum system uptime.

8th Gen Intel® Core™ processors with more cores and power, and up to 64 GB RAM

The TVS-872XU-RP features an 8th Gen Intel® Core™ i3-8100 quad-core 3.6 GHz processor and up to 64 GB DDR4 memory, delivering higher performance to help you accomplish more tasks efficiently. It provides four Gigabit and two 10GbE SFP+ LAN ports, supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data.

Dual-channel memory delivers power-smart performance

The TVS-872XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TVS-872XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64 GB RAM) of the TVS-872XU-RP for greater performance to tackle dynamically-changing workloads such as virtualization.

Robust. Durable. Expandable.

The TVS-872XU-RP features high-quality hardware and expandable architecture, enabling optimum performance and flexibility to fulfill business needs in performance and application diversification.

Dual 10GbE connectivity optimizes high-speed data transfer and VMware virtualization with iSER

The TVS-872XU-RP provides two 10GbE SFP+ ports that use the Mellanox® ConnectX®-4 Lx SmartNIC controller. They support the iSCSI Extensions for RDMA (iSER) protocol, allowing data to bypass general network drivers, the socket layer, and to directly enter memory buffers of the ESXi server and storage to offload CPU workloads. When both the VMware® server and the TVS-872XU-RP support iSER, it can provide up to 60% increased random read/write performance and 50% decreased latency, providing an essential tool to optimize demanding virtualization applications.

Recommended usage of PCIe slots

The TVS-872XU-RP provides multiple PCIe slots. To ensure that the SATA drives have sufficient bandwidth, it is recommended to only use low-end expansion cards, (such as a 1GbE NIC, USB 3.0 card, or Wi-Fi adapter) with the PCIe Gen2 slot (Slot 1) as this slot is connected to the PCH. For high-end expansion cards (including 10GbE/40GbE NICs, SAS cards, Mustang-200 acceleration card, and graphics cards), it is recommended to use PCIe Gen3 slots (Slot 2, 3, 4) as these slots are connected to the CPU.

Abundant I/O capability with PCIe expansion

The TVS-872XU-RP features 4 PCIe slots that allow for the usage of various expansion cards to expand application potential.

Empower GPU-accelerated computing with graphics cards

Graphics cards are optimized for graphical calculations and transformations. The TVS-872XU-RP provides PCIe slots for installing an AMD Radeon™ or NVIDIA® graphics card to boost data-intensive AI machine learning, while also providing benefits for imaging processing and virtual machine performance (via GPU passthrough).

SSD caching and auto tiering enable 24/7 optimized storage efficiency

By enabling Qtier™ auto-tiering on the TVS-872XU-RP, organizations can just buy the amount of SSDs needed, and attain the highest value/performance and optimal storage efficiency for data storage and sharing.

Improve random data access speeds with an SSD cacheSSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. The TVS-872XU-RP also supports write-only SSD caches to greatly boost write-intensive applications and also RAID 5/6 SSD caches for higher performance and caching space.

Maximize the value of SSDs with Qtier Technology

Qtier™ Technology empowers the TVS-872XU-RP with auto tiering that helps continuously optimize storage efficiency by automatically moving data between 2.5-inch SSDs and high-capacity HDDs based on the data’s access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

Up to 128 monitoring channels in QVR Pro, 4K HDMI output, and real-time transcoding

The TVS-872XU-RP has an HDMI 2.0 port which supports 4K (3840 x 2160) 60Hz output, allowing you to directly display surveillance videos* and media files on a monitor or TV via HD Station. Featuring advanced Intel® UHD Graphics 630, the TVS-872XU-RP provides high-quality 4K (H.264) and 1080p video transcoding, and you can easily convert videos to universal file formats that can be smoothly played on multiple devices.

Flexibly allocate physical and virtual network resources to simplify network deployment

Complete backup planning

Optimized collaboration with seamless file sharing and sync

All-in-one server to host virtual machines and containers

Complete control over system status and data security

Flexible and economical storage expansion

QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.







SKU: TVS-872XU-RP-i3-4G Categorii: , , ,

Two 10GbE SFP+ SmartNIC ports with iSER support accelerate large file sharing and intensive data transfer.

PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.

4K media playback and online transcoding. Directly view on a TV/monitor via HDMI 2.0 output (up to 4K @60Hz).

Software-defined SSD RAID extra over-provisioning (from 1% to 60%) optimizes SSD random write speeds and extends SSD lifespan.

Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

Comprehensive security management, providing a security portal for your NAS and helping you to stay informed of NAS status at all times.

  1. 8th Gen Intel® Core™ processor.High-performance Intel® Core™ i3-8100 quad-core 3.6 GHz processor with Intel® UHD Graphics 630.
  2. DDR4 2400 MHz memory .Supports four DDR4 dual-channel Long-DIMM memory modules for a maximum of 64 GB RAM.
  3. 4x Gigabit Ethernet ports.Ideal for service binding, port trunking and MPIO configurations.
  4. USB 3.1 Gen2 ports.Including two Type-C USB 3.1 Gen2 10Gbps ports and four Type-A USB 3.1 Gen2 10Gbps ports to greatly boost data transfer speeds. Supports external hard drives, printers and UPS.
  5. HDMI 2.0 output.Supports 4K (3840 x 2160) @60Hz for an uncompromising visual experience.
  6. 4x PCIe expansion slots.Supports SAS expansion cards, graphics cards, 10GbE/ 25GbE/ 40GbE network cards and QM2 cards for greater application potential (one slot comes with a pre-installed 10GbE adapter).
  7. System fans.Monitors system temperatures and automatically adjusts fan speeds accordingly.
  8. Power supply units.Redundant 300W power supplies ensure continuous system up-time.
  9. 2x 10GbE SFP+ ports.Uses the Mellanox® ConnectX®-4 Lx SmartNIC controller with iSER support; fully supports 10GbE high-speed networks and is ideal for running bandwidth-demanding applications such as virtualization and fast backup/restoration.

10. Recommended PCIe slots for graphics cards and the supported dimensions

TVS-x72XU Series Power Supply PCIe Slot Dimension (W x H x L) mm
TVS-972XU 250W Slot 1 19 x 68.9 x 257
TVS-972XU-RP 300W (x2) Slot 1
TVS-872XU 350W Slot 2 37 x 68.9 x 214
TVS-872XU-RP 300W (x2) Slot 4
TVS-1272XU-RP 300W (x2) Slot 2 37 x 68.9 x 214
Slot 4
TVS-1672XU-RP 500W (x2) Slot 2 38.5 x 111 x 214
Slot 4
TVS-2472XU-RP 800W (x2) Slot 2 55 x 138 x 312
Slot 4
