Ubiquiti UniFi Access Point U7 Industrial (U7-Industrial)


Pretul afisat contine TVA (21%).

3.176,46 lei

Ubiquiti UniFi Access Point U7 Industrial (U7-Industrial)



IP67 industrial WiFi 7 access point with extended-temperature operation, integrated high-gain directional RF system with adjustable isolation and beamwidth control.

Note. Requires UniFi Network 11 RC and Access Point 8.8.12 (expected Oct 12).



SKU: U7-Industrial Categorii: , , , , , ,

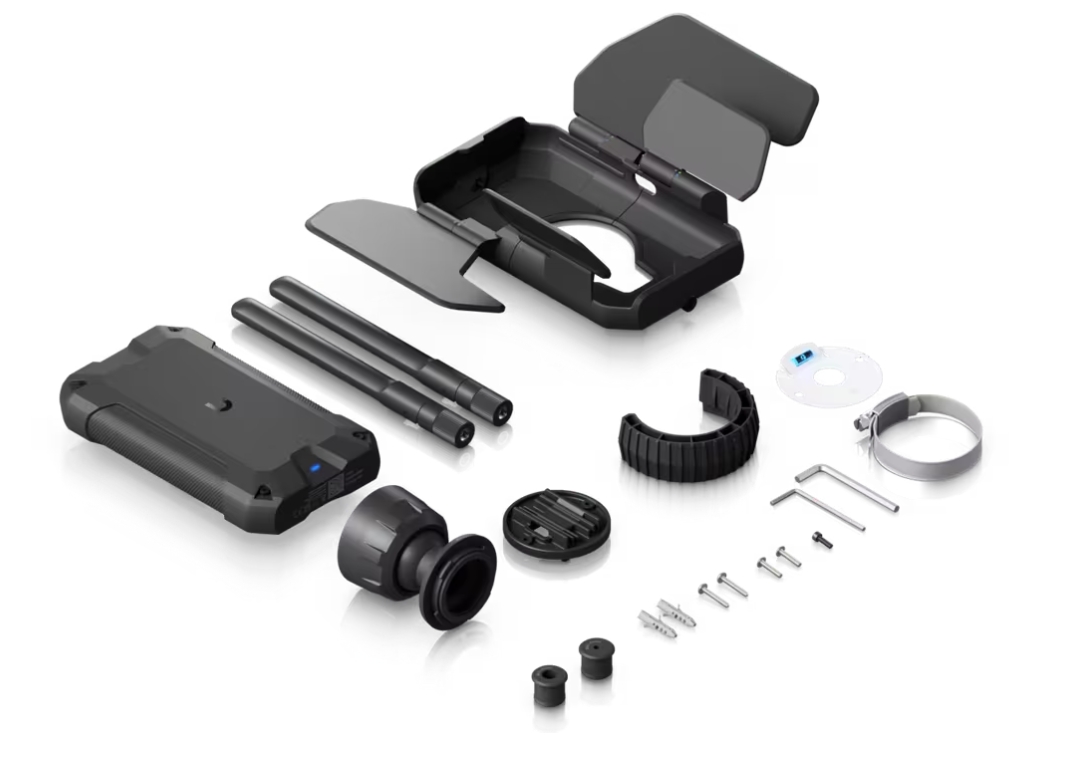

Dimensions

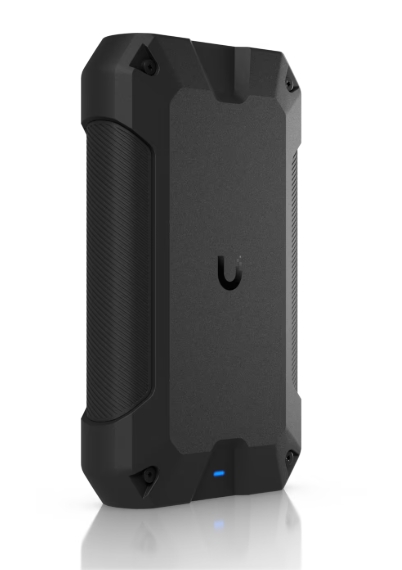

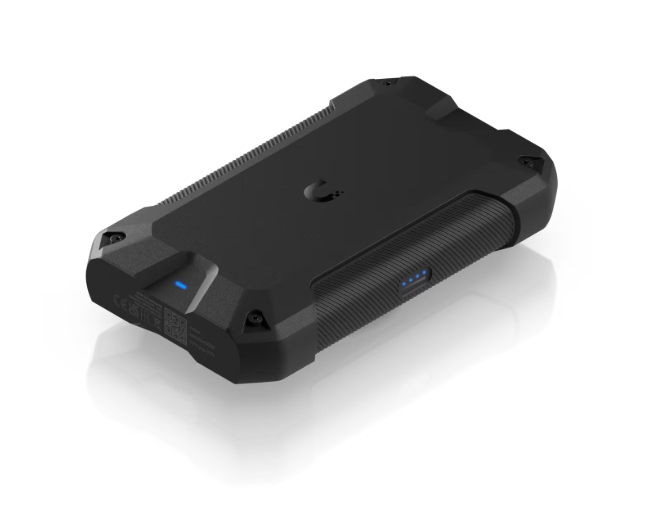

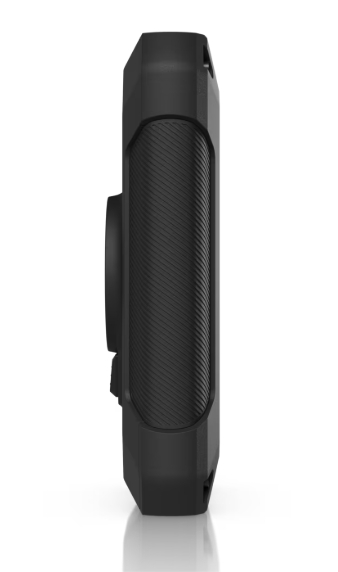

Device: 170 × 103 × 41.2 mm (6.7 × 4.1 × 1.6″)

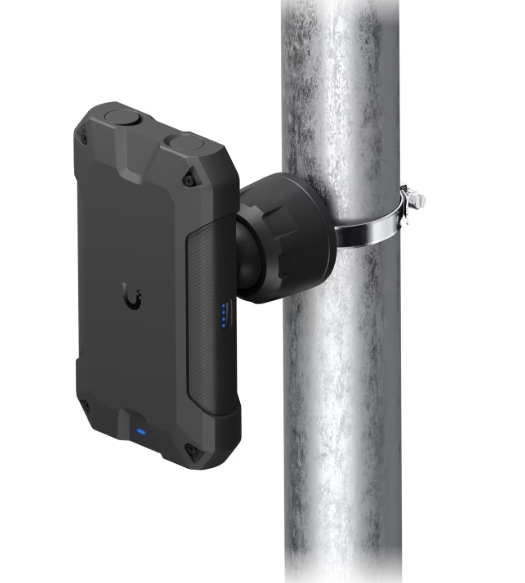

Ball mount installed: 170 × 103 × 107.6 mm (6.7 × 4.1 × 4.2″)

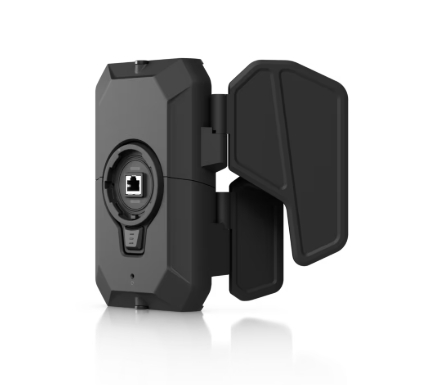

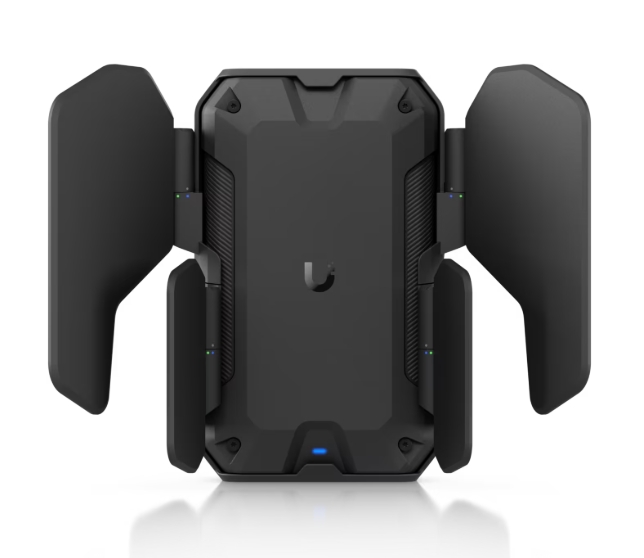

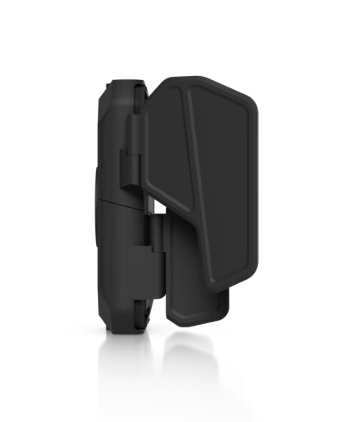

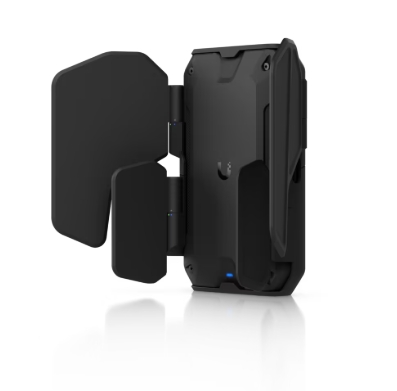

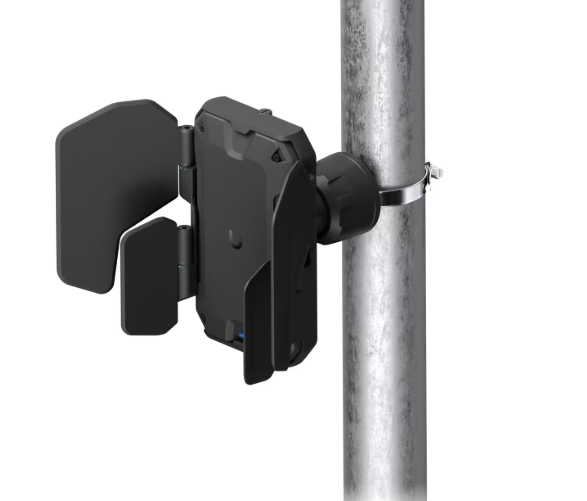

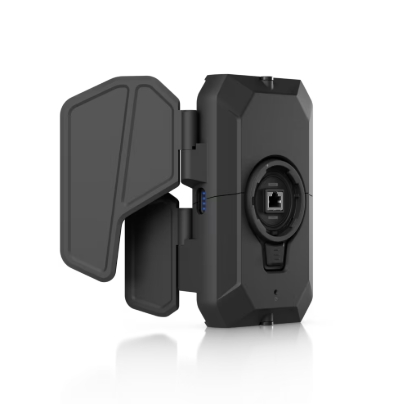

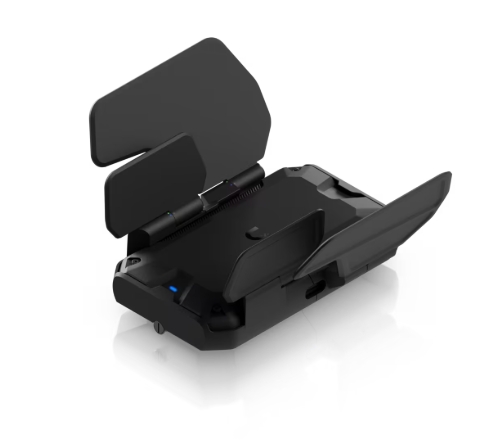

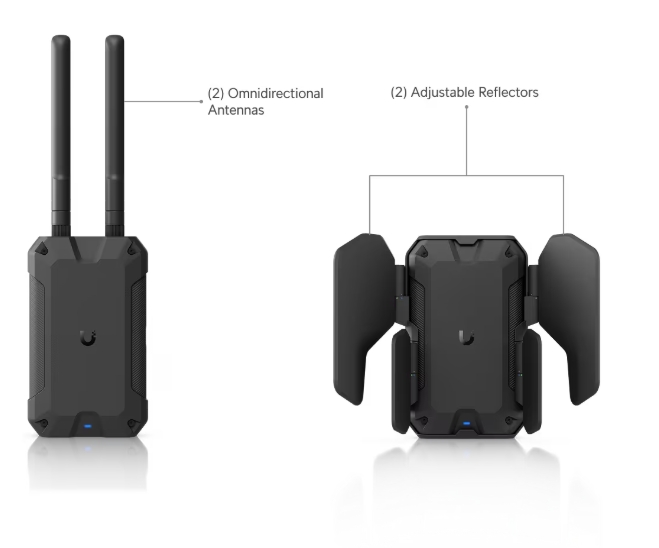

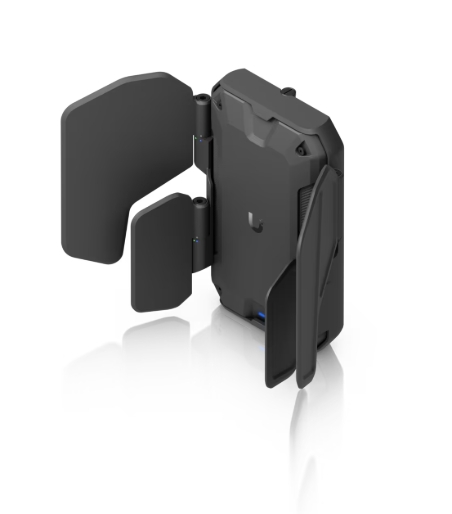

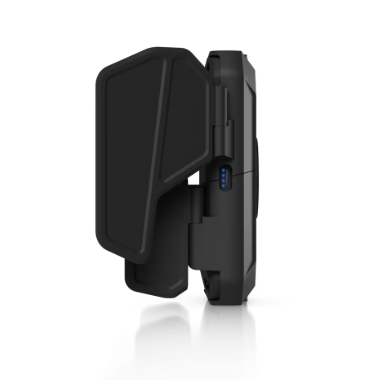

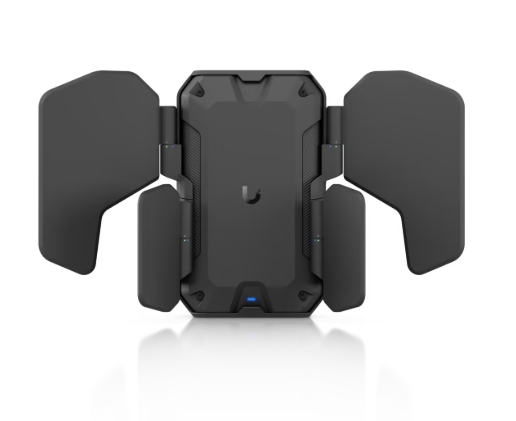

Adjustable reflectors installed: 177.6 x 299.7 × 177.8 mm (7 x 11.8 × 7″)

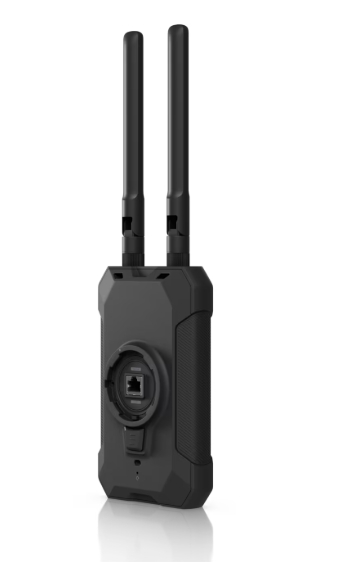

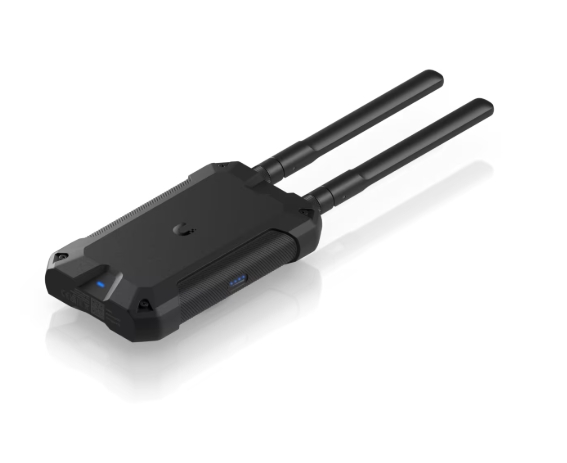

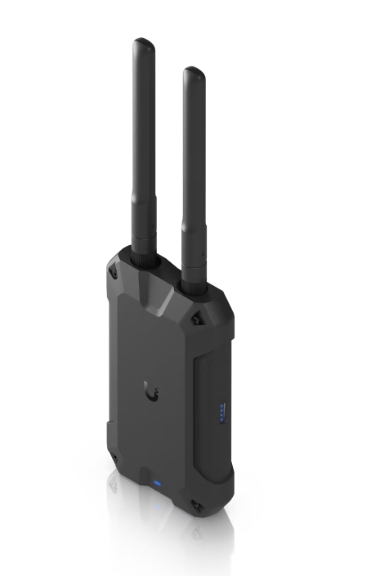

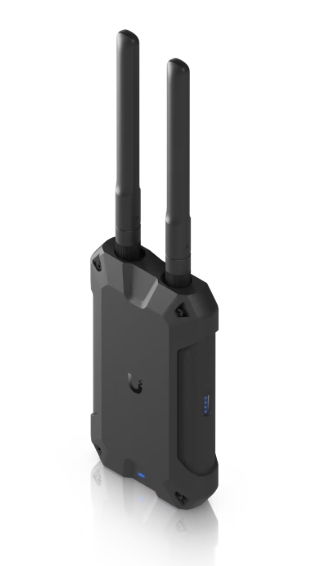

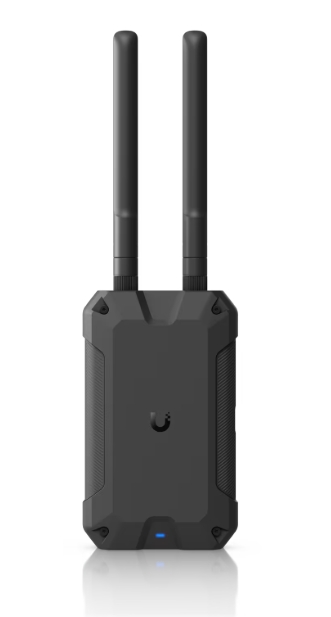

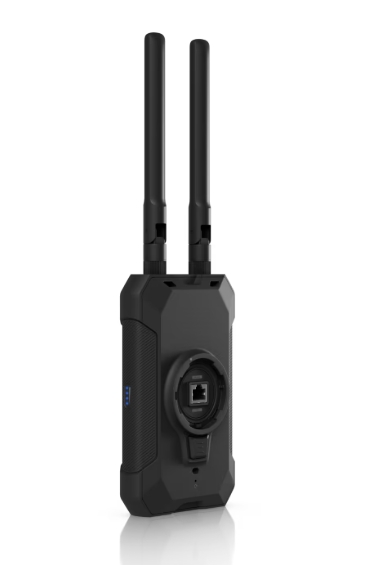

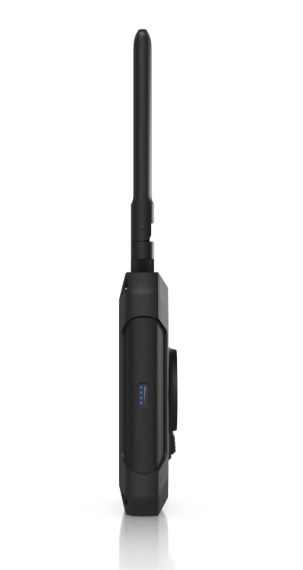

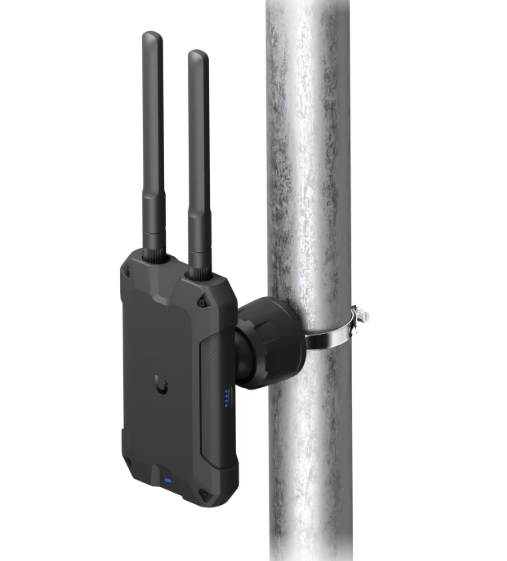

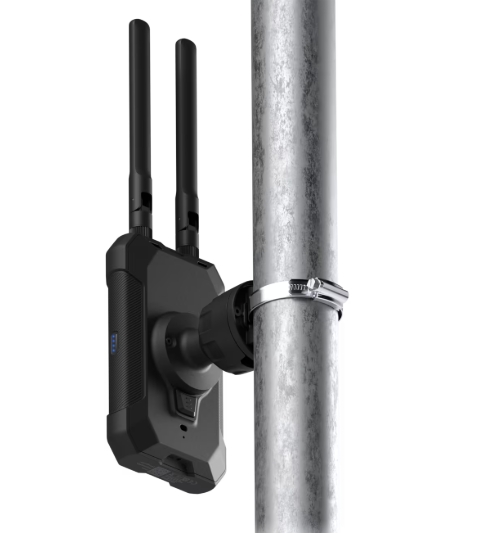

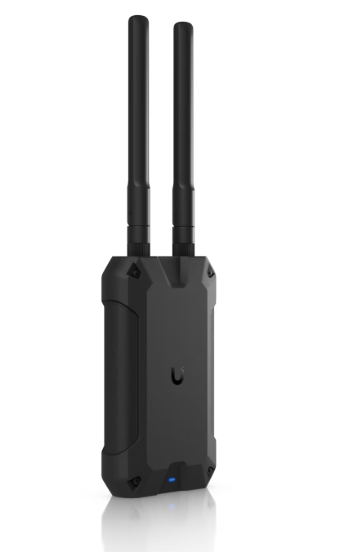

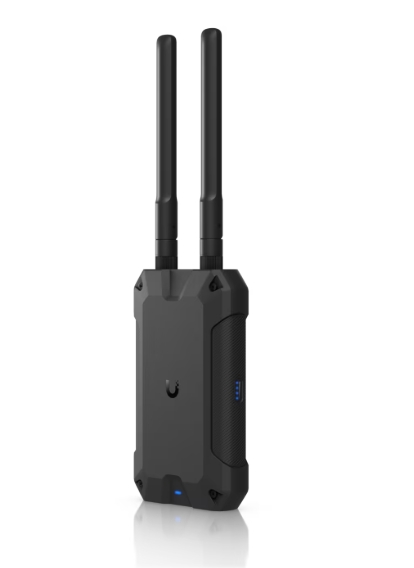

Omnidirectional antennas installed: 341.8 × 103 × 107.6 mm (13.5 × 4.1 × 4.2″)
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
200+
Uplink
2.5 GbE
Mounting

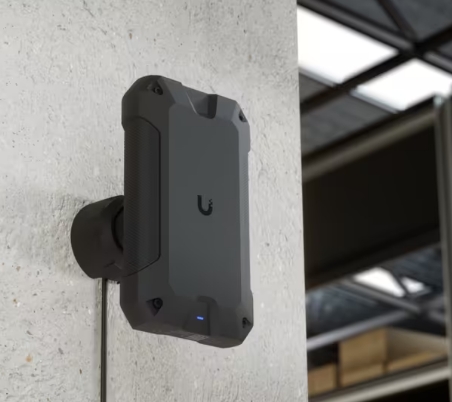

Wall, Pole (Mounts included)
Weatherproofing
IP67
Power Method
PoE

MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
Directional internal (Built-in): 10 dBi, 95° x 45°
Directional internal (Reflector Wide Angle): 11 dBi, 70° x 45°
Directional internal (Reflector Narrow Angle): 12 dBi, 55° x 45°
External omni: 6 dBi, 360° x 45°
2.4 GHz
Directional internal (Built-in): 8 dBi, 100° x 45°
Directional internal (Reflector Wide Angle): 9 dBi, 80° x 45°
Directional internal (Reflector Narrow Angle): 10 dBi, 65° x 45°
External omni: 5 dBi, 360° x 45°
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm

Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Real-Time Spectral Analysis

✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Max. Power Consumption
13W
Supported Voltage Range
42.5–57V DC
Networking Interface

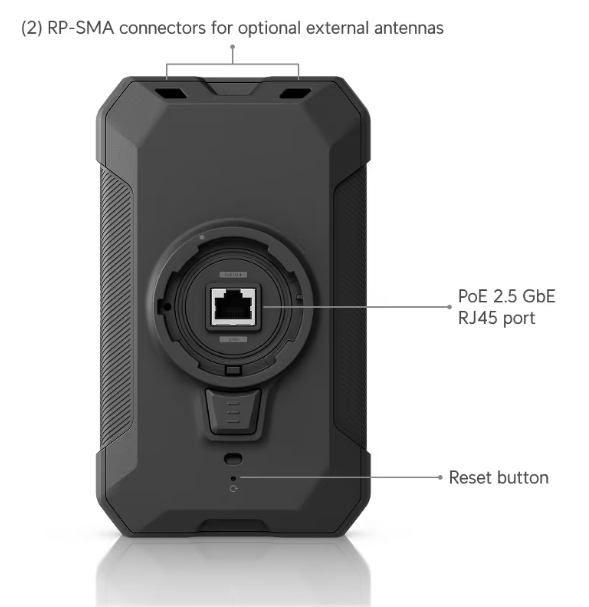

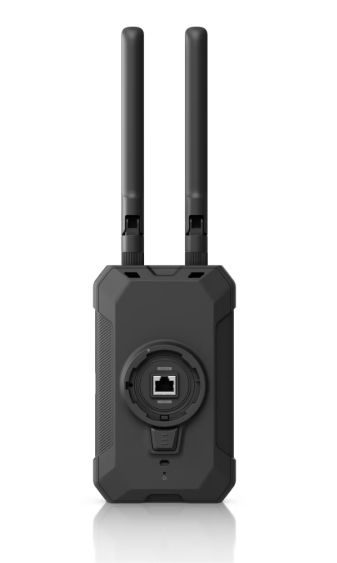

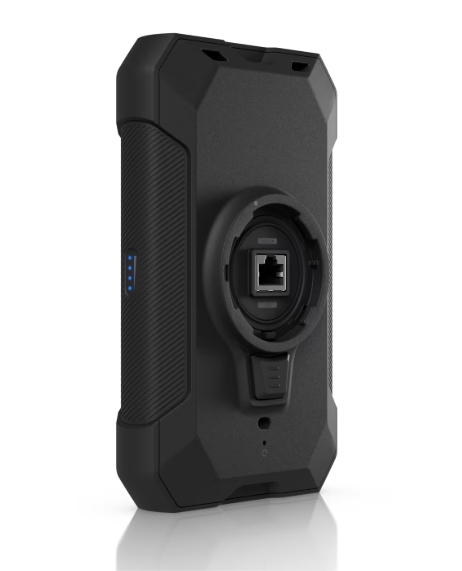

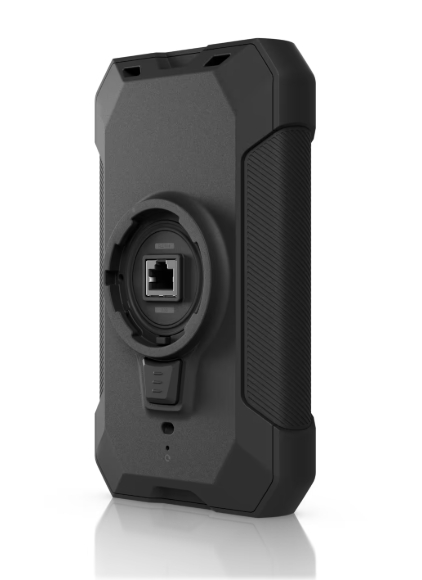

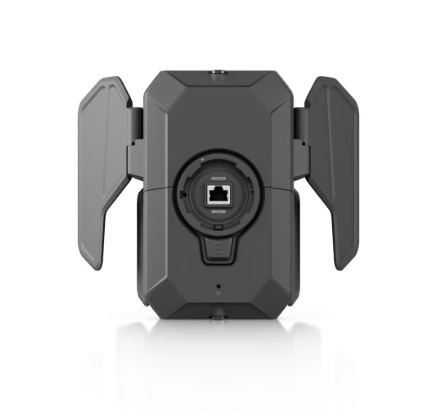

(1) 2.5 GbE RJ45 port
Weight
Device: 577 g (1.3 lb)
Ball mount: 163 g (5.8 oz)
Reflector antenna set: 500 g (1.1 lb)
Omni antenna set: 52 g (1.8 oz)
Wind Loading
97.3 N at 200 km/h (21.9 lbf at 125 mph)

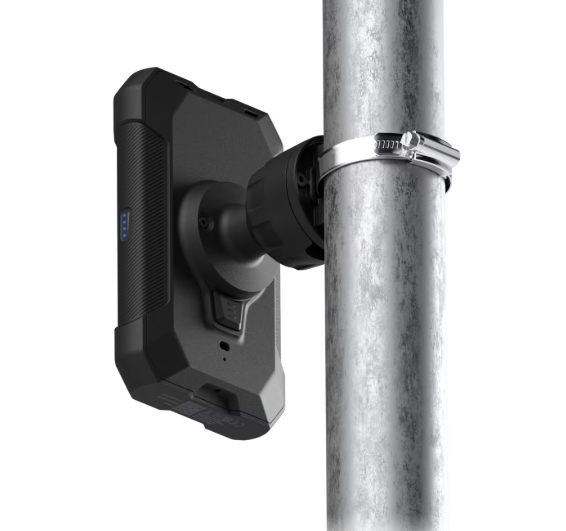

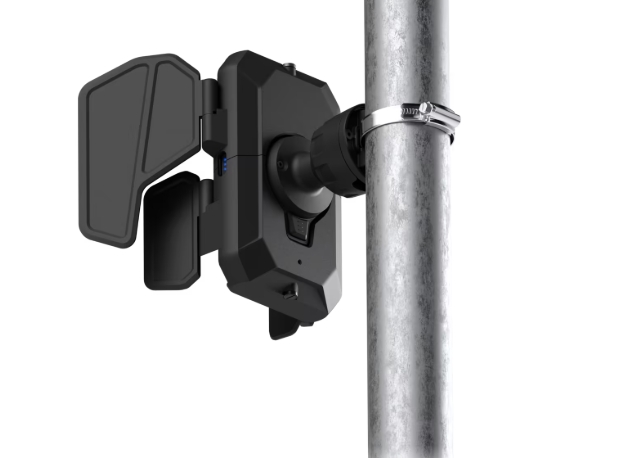

Pole Mount Diameter
1–2.5″ (25–63.5 mm)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Aluminum alloy

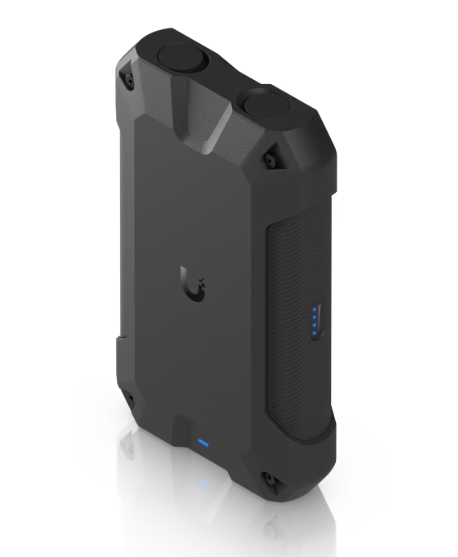

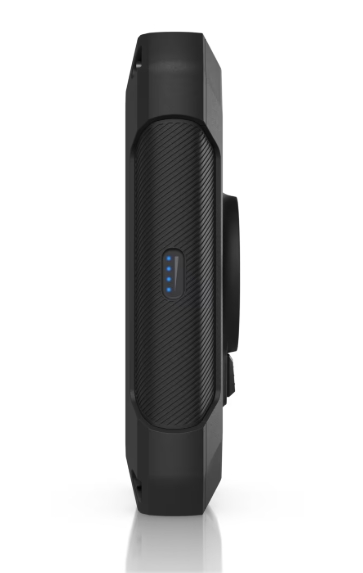

LEDs
System
(4) Blue: signal
(1) White/Blue: indicator
Ambient Operating Temperature
-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
