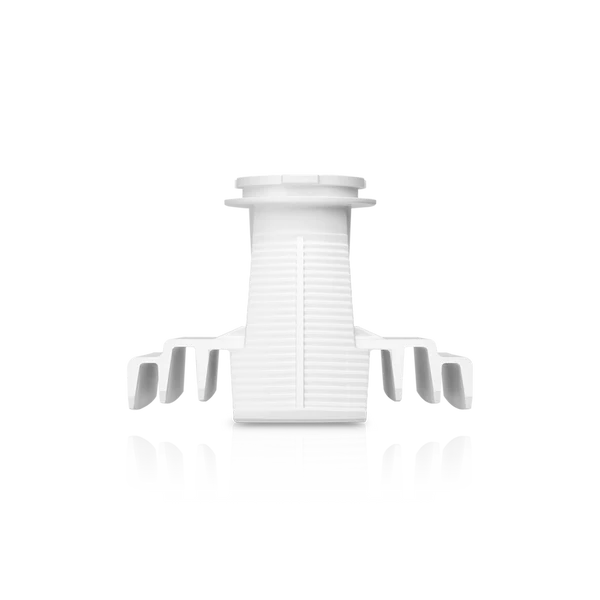

Ubiquiti airMAX PrismStation Horn - 5 GHz, 90° (Horn-5-90)
Ubiquiti airMAX PrismStation Horn - 5 GHz, 90° (Horn-5-90) - imagine 2
Ubiquiti airMAX PrismStation Horn - 5 GHz, 90° (Horn-5-90) - imagine 3
Ubiquiti airMAX PrismStation Horn - 5 GHz, 90° (Horn-5-90) - imagine 4
Ubiquiti airMAX PrismStation Horn - 5 GHz, 90° (Horn-5-90) - imagine 5
Ubiquiti airMAX PrismStation Horn - 5 GHz, 90° (Horn-5-90) - imagine 6
, , , ,

Ubiquiti airMAX PrismStation Horn – 5 GHz, 90° (Horn-5-90)

Compara

Slant 45 Antenna for airFiber®
The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

Pretul afisat contine TVA (21%).

543,23 lei

Ubiquiti UISP airMAX 5 GHz, 90° Horn Antenna (Horn-5-90)

With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.

SKU: Horn-5-90 Categorii: , , , ,
Horn-5-90
Dimensions 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46″)
Weight 920 g (32.45 oz)
Supported Frequency Range 5.15 -5.85 GHz
Gain 13 dBi
HPOL Beamwidth 90°
VPOL Beamwidth 90°
Elevation Beamwidth 45°
Maximum VSWR 2:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 46 N @ 200 km/h (10.3 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
