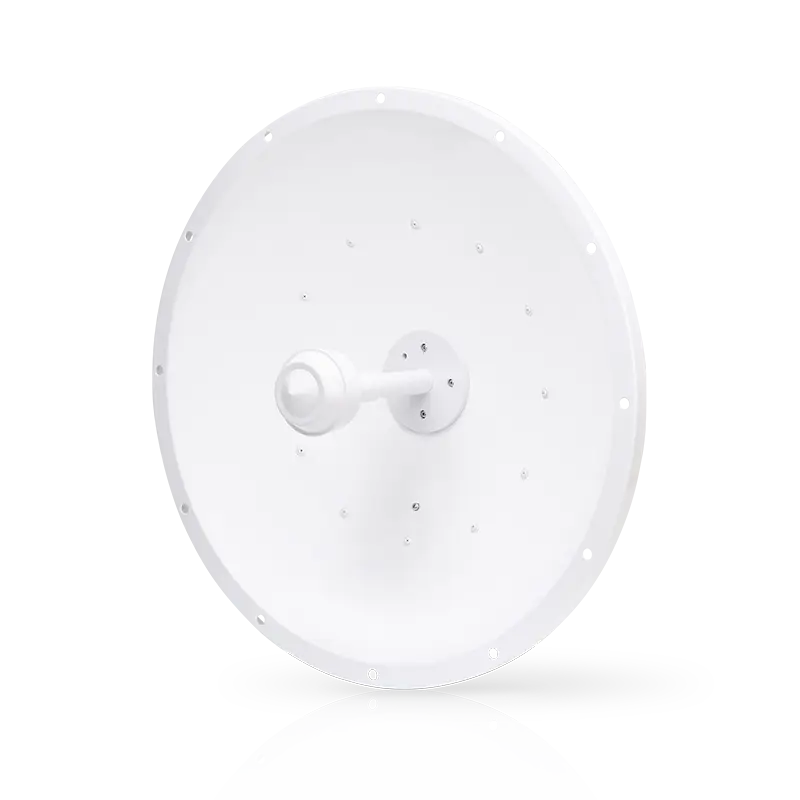

Ubiquiti UISP airFiber X 2.4 GHz, 24 dBi, Slant 45
2 x 2 dual-polarity performance
Robust mechanical design for outdoor application use
Secure pole-mounting
Compatible with airFiber 2X
| AF-2G24-S45 | |
|---|---|
| Dimensions | 650 x 650 x 295 mm (25.6 x 25.6 x 11.6″) |
| Weight | 9.8 kg (21.61 lb) |
| Frequency | 2.3 – 2.7 GHz |
| Gain | 24 dBi |
| +45° Beamwidth | 6.6° (3 dB) |
| -45° Beamwidth | 6.8° (3 dB) |
| Front-to-Back Ratio | 28 dB |
| Max. VSWR | 1.6:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 787 N @ 200 km/h (177 lbf @ 125 mph) |
| Polarization | Dual Linear |
| Cross-Pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Jumpers Included |
