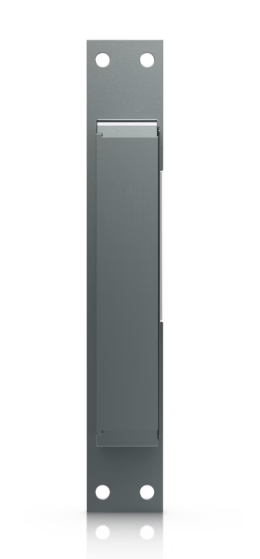

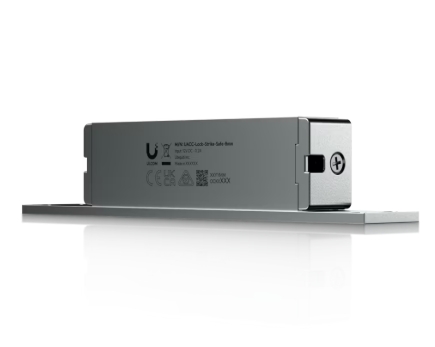

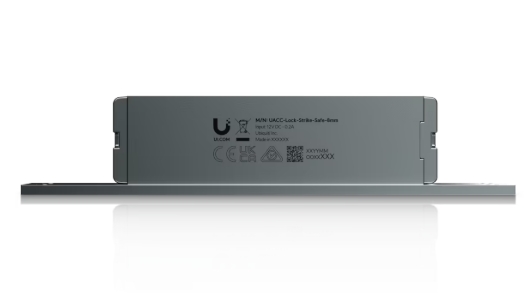

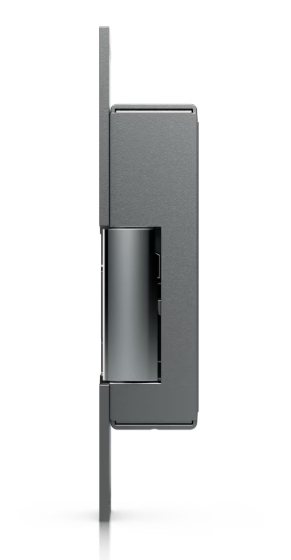

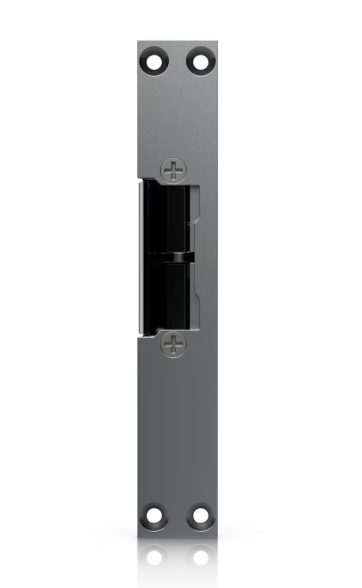

Ubiquiti UniFi Access Fail-Safe Strike Lock – Narrow (UACC-Lock-Strike-Safe-8mm)


Pretul afisat contine TVA (21%).

687,01 lei

Ubiquiti UniFi Access Fail-Safe Strike Lock – Narrow (UACC-Lock-Strike-Safe-8mm)

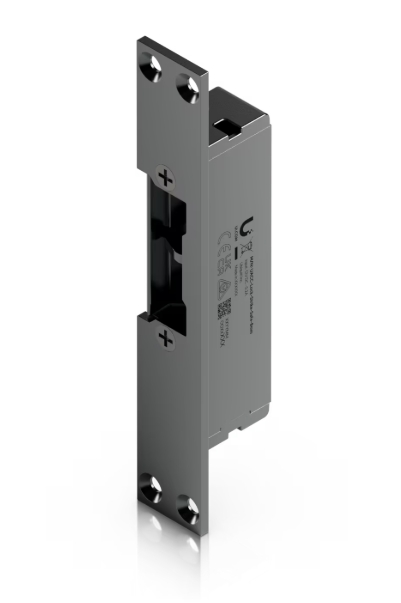

Fail-safe electric strike lock with 8 mm lock slot depth support.

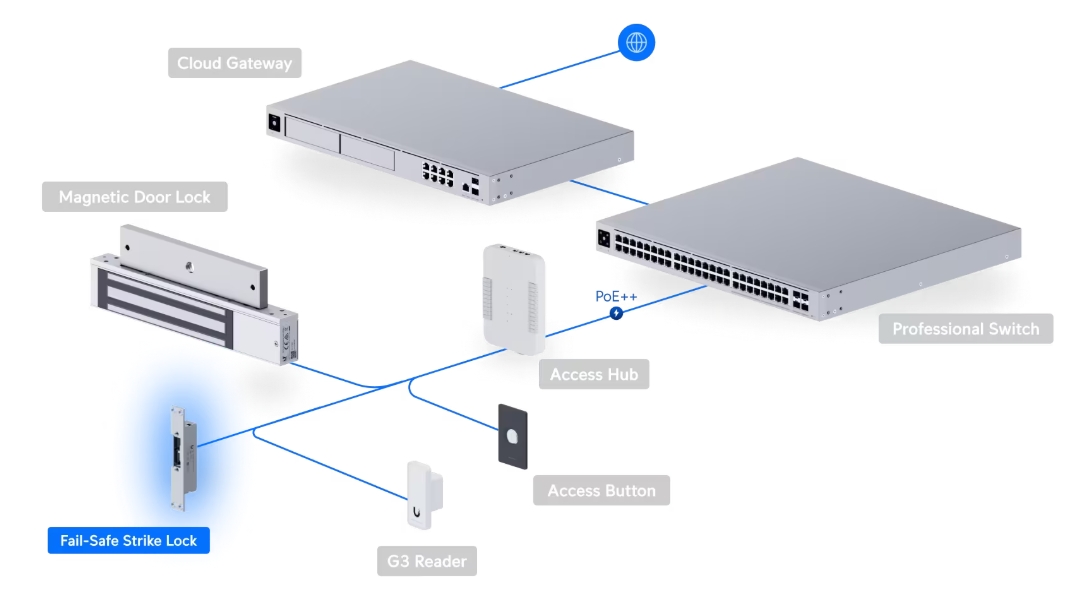

Compatibility
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
UA-Hub-Gate



SKU: UACC-Lock-Strike-Safe-8mm Categorii: , , , , ,

Dimensions

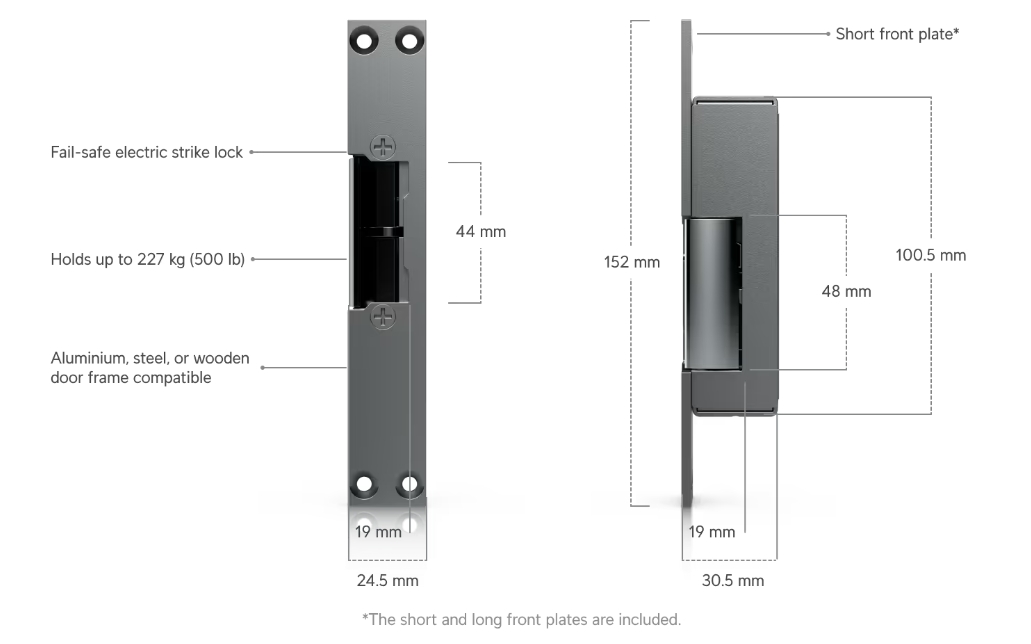

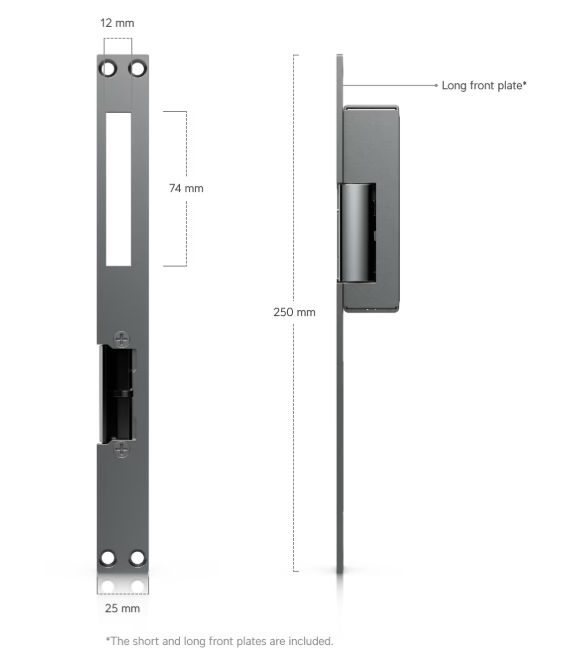

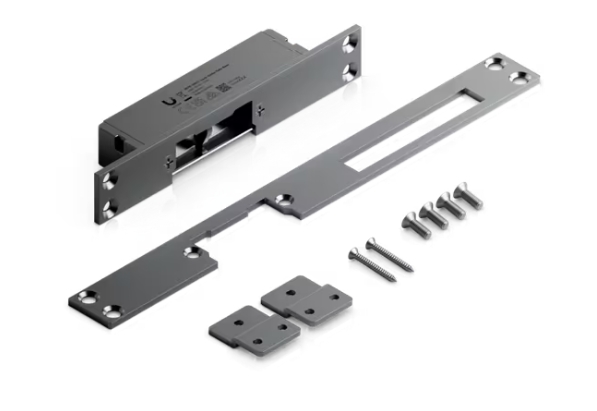

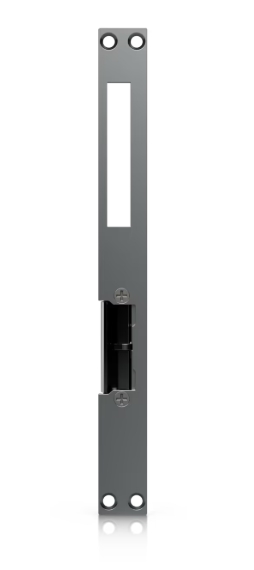

Lock body:112 x 21 x 28 mm (4.4 x 0.8 x 1.1″) Short front plate:152 x 24.5 x 3 mm (6 x 0.9 x 0.1″) Long front plate:250 x 25 x 3 mm (9.8 x 0.9 x 0.1″)
Weight
Lock body: 200 g (7.0 oz) Short front plate: 62 g (2.2 oz) Long front plate: 97 g (3.4 oz)
Enclosure Material
Lock body: zinc alloy Front plate/latches: stainless steel
Lock Features
Lock Type
Fail safe
Support Door Type
Single door (Wooden/metal)
Holding Force
227 kg (500 lb)
Current Power
200mA ± 10%
Support Voltage Range
12V DC ±10%
Wiring
(1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/- (white) (1) DPS/+ (orange)
Mounting

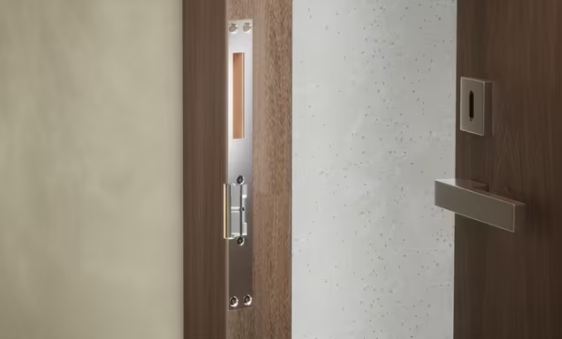

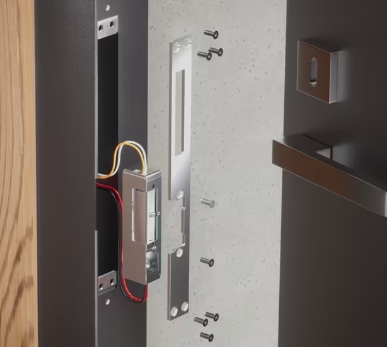

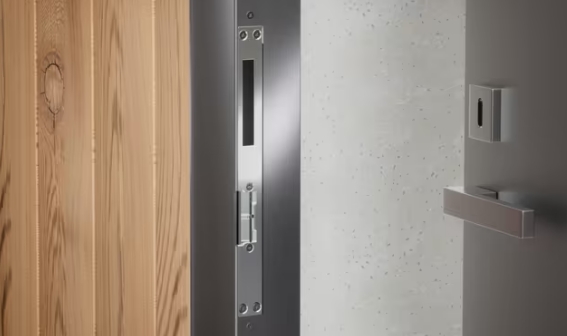

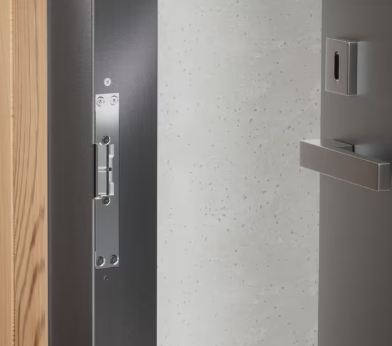

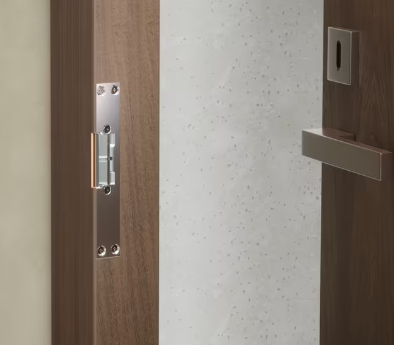

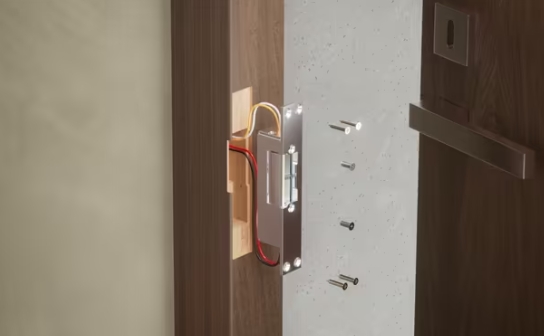

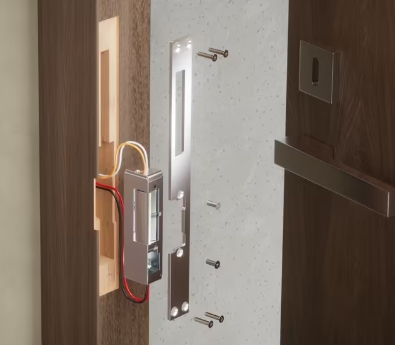

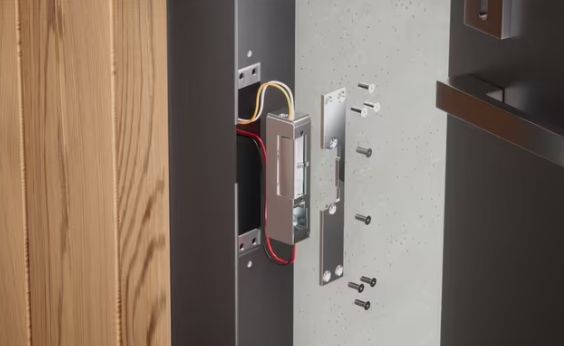

Door frame recess mount
Door Status Contact
Type
Dry contact
Logic
Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short
Rating
Max. 30V DC, 0.1A
Ambient Storage Temperature
-20 to 70° C (-4 to 158° F)
Ambient Operating Temperature
-10 to 60° C (14 to 140° F)
Ambient Operating Humidity
5 to 90% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE
