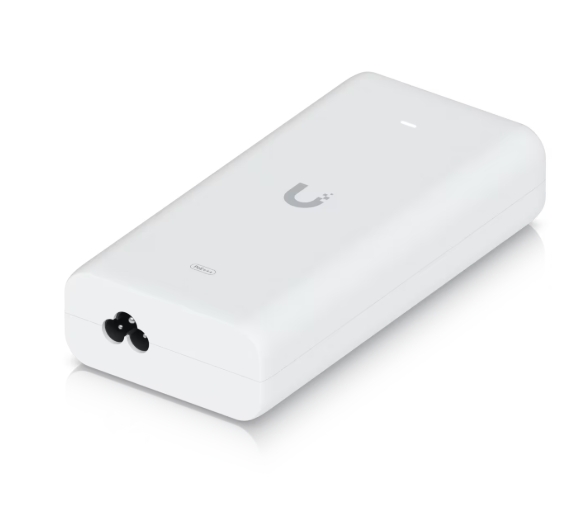

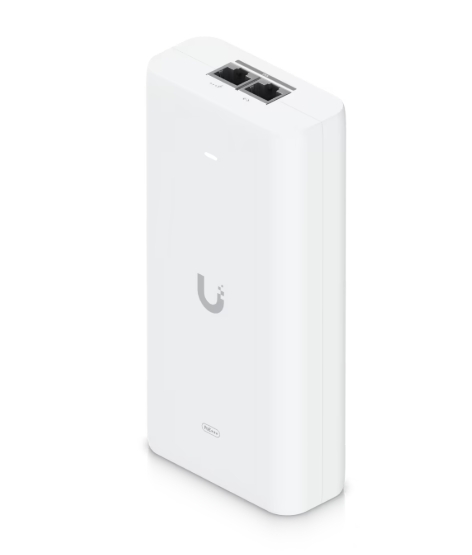

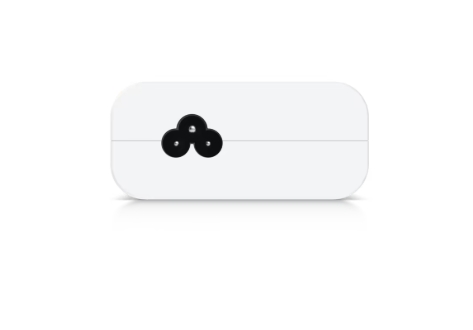

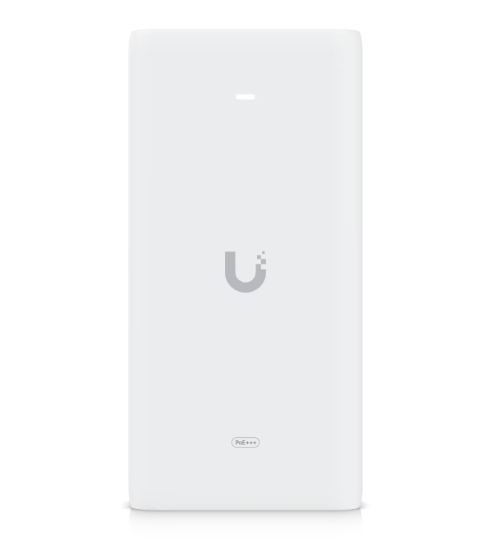

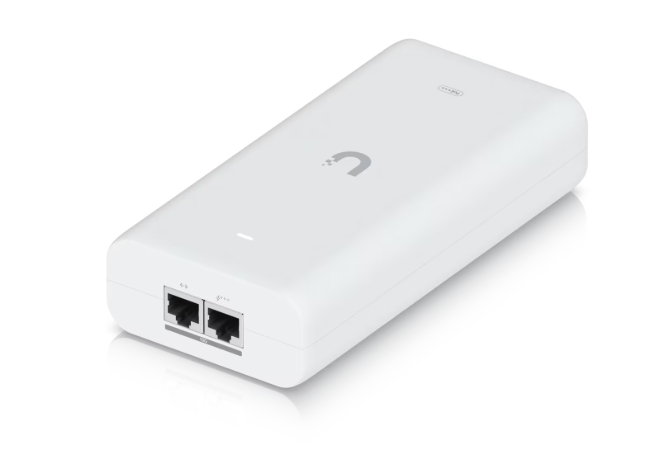

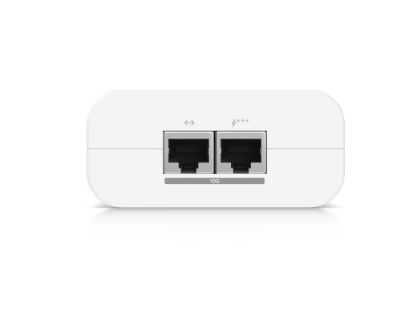

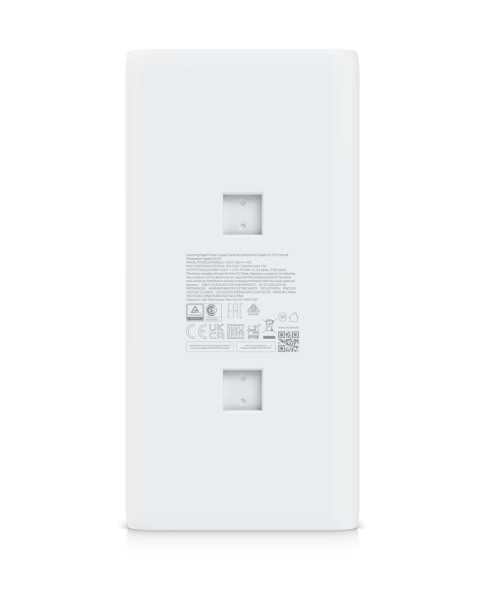

Ubiquiti UniFi 10G PoE+++ Adapter (90W) (UACC-PoE+++-10G-EU)
Ubiquiti UniFi 10G PoE+++ Adapter (90W) (UACC-PoE+++-10G-EU) - imagine 2
Ubiquiti UniFi 10G PoE+++ Adapter (90W) (UACC-PoE+++-10G-EU) - imagine 3
Ubiquiti UniFi 10G PoE+++ Adapter (90W) (UACC-PoE+++-10G-EU) - imagine 4
Ubiquiti UniFi 10G PoE+++ Adapter (90W) (UACC-PoE+++-10G-EU) - imagine 5
Ubiquiti UniFi 10G PoE+++ Adapter (90W) (UACC-PoE+++-10G-EU) - imagine 6
Ubiquiti UniFi 10G PoE+++ Adapter (90W) (UACC-PoE+++-10G-EU) - imagine 7
, , , ,

Ubiquiti UniFi 10G PoE+++ Adapter (90W) (UACC-PoE+++-10G-EU)

Compara
Pretul afisat contine TVA (21%).

329,04 lei

Ubiquiti UniFi 10G PoE+++ Adapter (90W) (UACC-PoE+++-10G)





An adapter that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.



Delivers up to 90W of PoE+++

Surge, peak pulse, and overcurrent protection

Contains RJ45 data input, AC cable with earth ground, and PoE+++ output

LED indicator for status monitoring

Supports wall mount, DIN rail and floating mount*

*DIN rail and floating mount sold separately

Compatibility:

USW-Flex-2.5G-8-PoE
SKU: UACC-PoE+++-10G-EU Categorii: , , , ,

Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3″)
Weight
210 g (7.4 oz)
Output Voltage
54V DC @ 1.12A
Rated Voltage
100—240V AC at 50/60Hz
LAN Activity Indicator
—
Gigabit LAN Port (up to 10 GbE on runs up to 80M )
✓
Remote Reset Capability
—
Reset Button
—
4-pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection
11V data, 60V power
Data In / PoE
RJ45 shielded socket
Input Current
1.5A Max.
Inrush Current
<150A peak @ 230V AC
Efficiency
>88%
Switching Frequency
65 kHz
Output Ripple
1% Max.
Line Regulation
≤ 2%
Load Regulation
≤ 5%
Max. PoE+ Wattage per Port by PSE
60W
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
