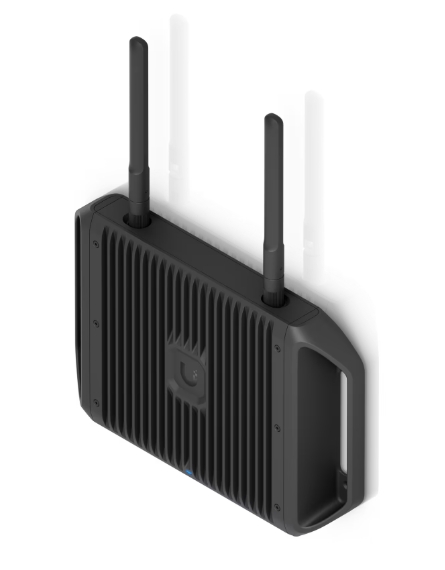

Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W)

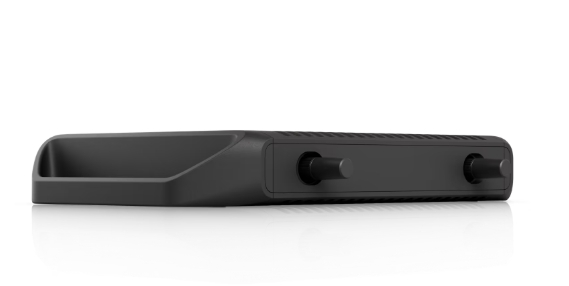

Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 2
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 3
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 4
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 5
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 6
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 7
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 8
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 9
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 10
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 11
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 12
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 13
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 14
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 15
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 16
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 17
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 18
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 19
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 20
Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W) - imagine 21
, , , ,

Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W)

Compara
Pretul afisat contine TVA (21%).

3.888,66 lei

Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial (270W)



Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.

*The onboard SIM slots are exclusively for Remote SIM integration with the UniFi 5G Max Outdoor. Support coming soon via software update.





SKU: UCG-Industrial (270W) Categorii: , , , ,

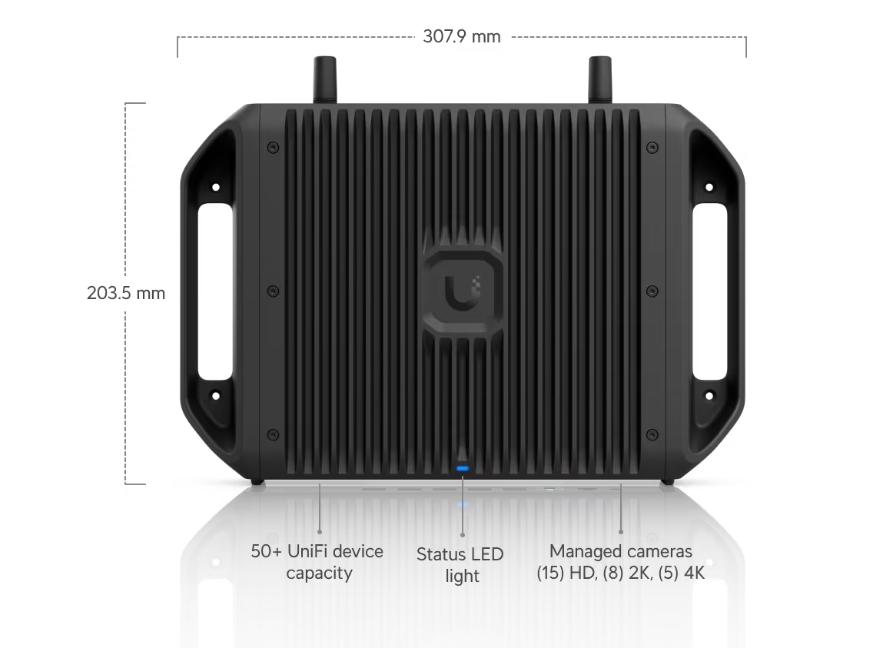

Dimensions
Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7″) Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9″)
UniFi Application Suite
Network

✓
Protect

✓
Access

✓
Talk

✓
Connect

✓
Managed UniFi Devices
50+
Managed Cameras
(15) HD (8) 2K (5) 4K
Simultaneous Users Connected
500+
Max. WAN Port Count
5
Default WAN Ports
(1) 10G SFP+ (1) 10 GbE RJ45 (1) 2.5 GbE RJ45

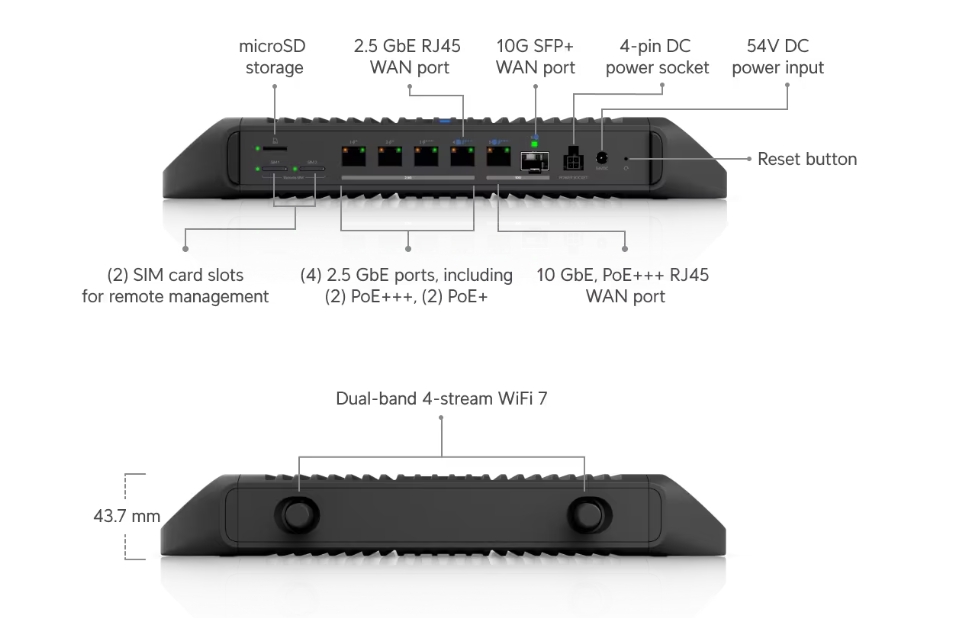

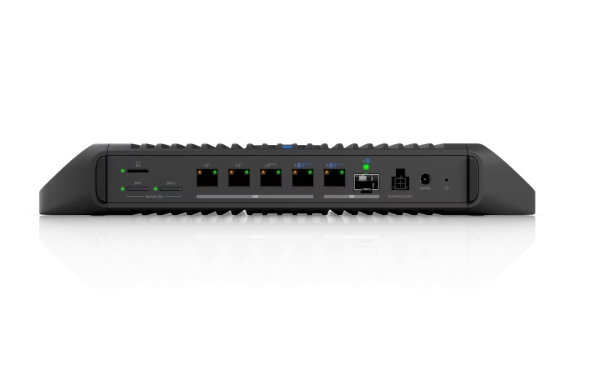

Port Layout
2.5 GbE RJ45
4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M)
10 GbE RJ45
1 (PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+
1 (10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor

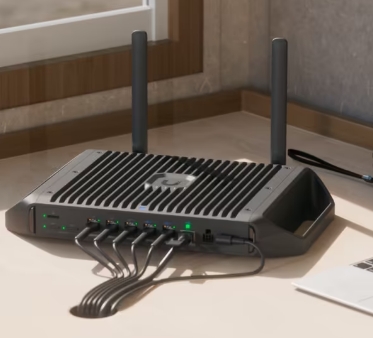

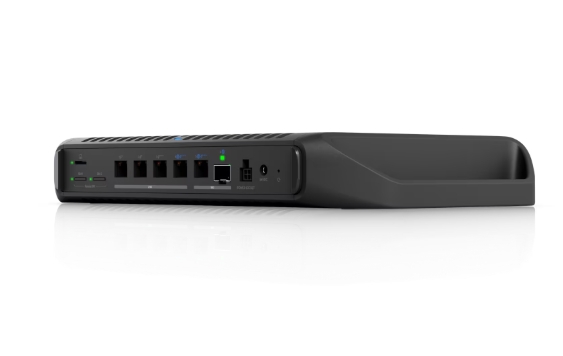

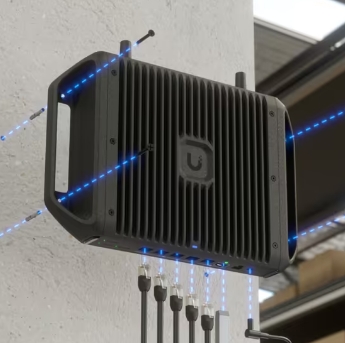

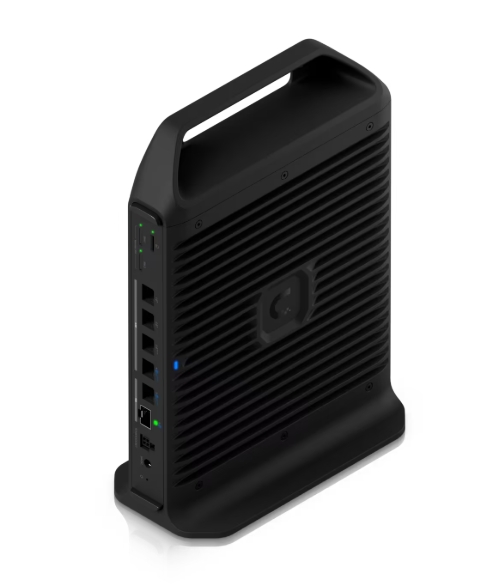

Wall-mounted Compact desktop (Table stand included) Rack mount (Accessory sold separately)
Coverage Area
115 m² (1,250 ft²)

Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓

Multi-WAN Load Balancing
✓
Dynamic Routing
OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
2,000
Virtual Network Override
✓
All Traffic Flows
—

WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Throughput
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain
5 GHz
Stub antenna: 5 dBi Terminal (Omni) antenna: 6 dBi
2.4 GHz
Stub antenna: 3 dBi Terminal (Omni) antenna: 6 dBi
Max. TX Power
5 GHz
26 dBm
2.4 GHz
23 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

NVR Storage
Pre-installed 128 GB microSD for NVR
Expansion Slot
MicroSD Card
PoE Budget
DC input: 270W ATX power: 75W
Max. PoE Wattage per Port by PSE
PoE+
30W
PoE+++
90W
Voltage Range PoE Mode
50-57V
Max. Power Consumption
28W (Excluding PoE output)
Power Method
(1) DC Input (350W PSU) (1) ATX power (48V)
Power Supply
54V DC, 350W (Adapter included) ATX power (48V)
Supported Voltage Range
100–240V AC
Heat Dissipation
85 BTU/hr (Excluding PoE output)
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
3 GB
Weight
Device: 2.4 kg (5.3 lb) Table stand: 321 g (11.3 oz)
Enclosure Material
Device: Polycarbonate, aluminium alloy Table stand: Polycarbonate, galvanized steel, silicone rubber
Management
Ethernet Bluetooth
LEDs
Ethernet
✓
SFP+
✓
System
✓
MicroSD
✓
SIM
✓
Button
(1) Factory reset (2) Handle release buttons
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC

Application Requirements
Web Application
UniFi iOSâ„¢: Version 10.32.0 and later Androidâ„¢: Version 10.35.0 and later
