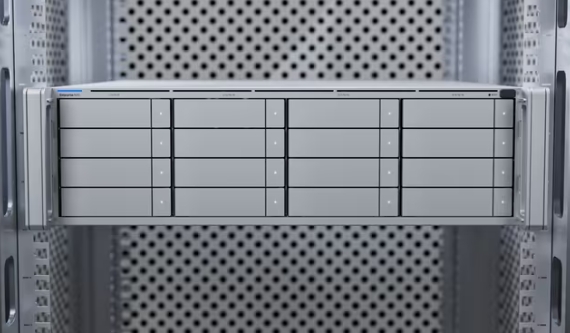

Ubiquiti UniFi Enterprise NAS (ENAS)


Pretul afisat contine TVA (21%).

30.907,48 lei

Ubiquiti UniFi Enterprise NAS (ENAS)

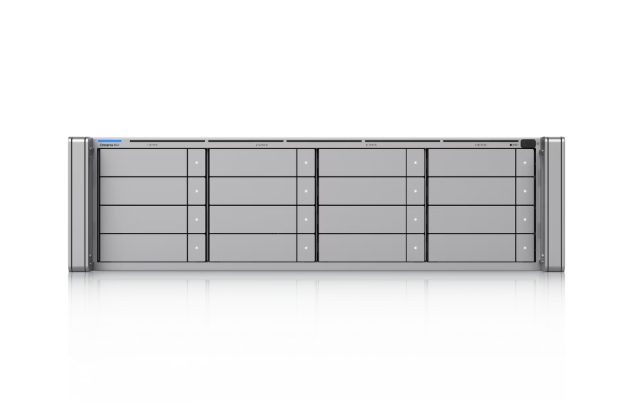

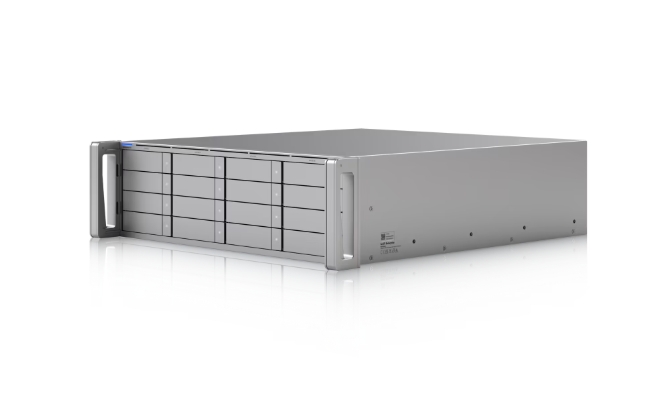

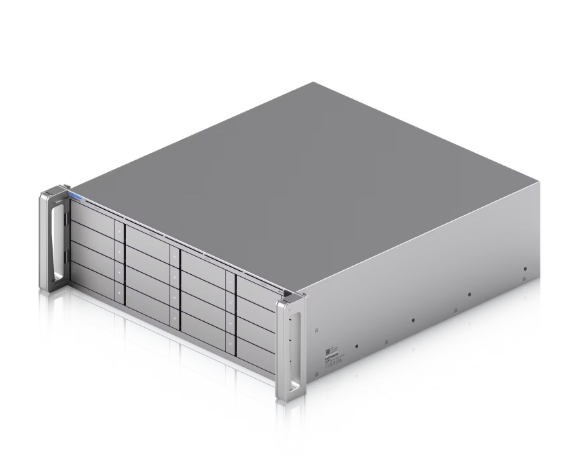

3U rack-mount NAS with sixteen 3.5″/2.5″ SATA bays, dual 25 Gbps SFP28 and 10 GbE RJ45 ports, M.2 NVMe support and redundant CRPS power for scalable, high-performance storage deployments.

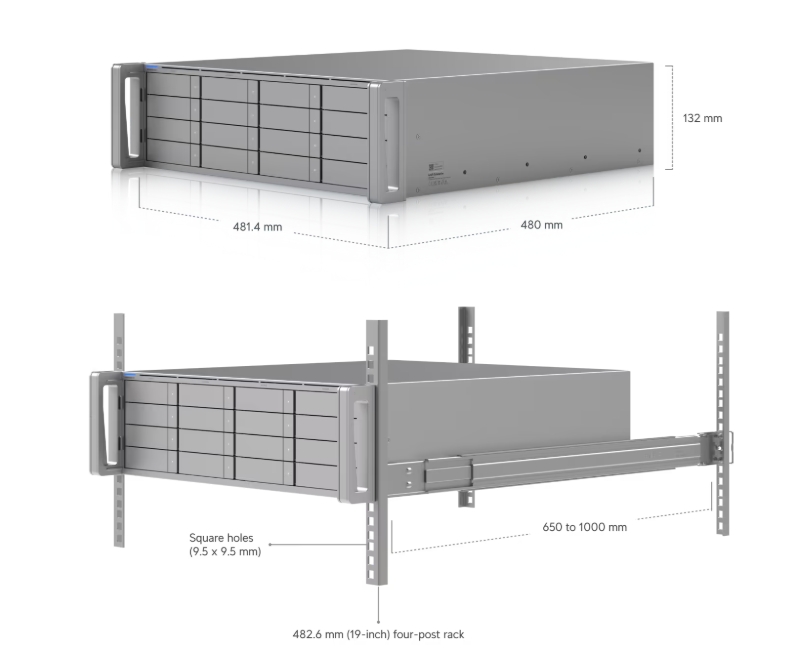

Dimensions
481.4 x 480 x 132 mm (19 x 18.9 x 5.2″)
Storage Capacity

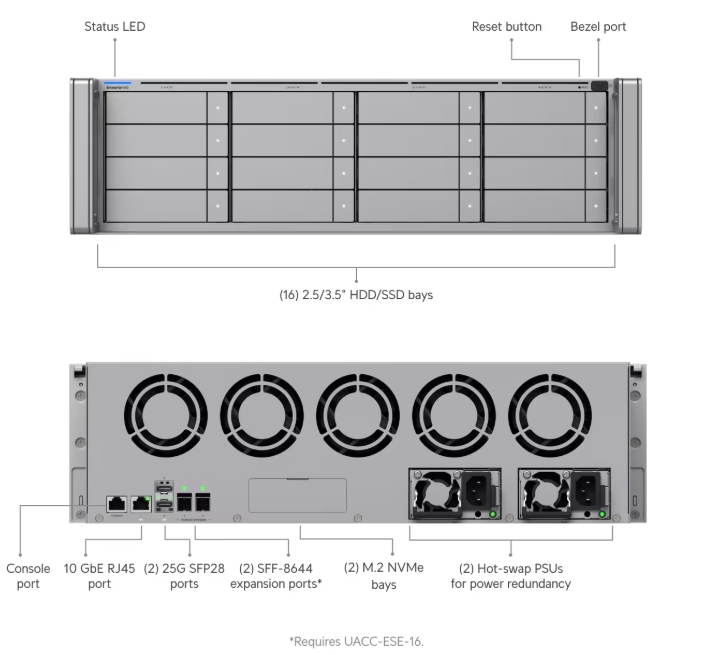

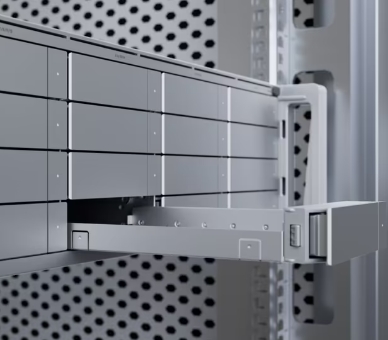

(16) 2.5”/ 3.5″ drive bays (2) M.2 NVMe bays
Networking Interface
(2) 25G SFP28 (25G/10G/1G) (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M)
Expansion Port
(2) SFF-8644 (24G)
Power Redundancy
✓
Form Factor
Rack mount (3U)

Hard Drive Capacity
(16) 2.5/3.5″ HDD / SSD support (2) M.2 NVMe SSD support (2) Expansion ports support
Max. Power Budget for Drives
450W
Max. Power Consumption
550W
Power Method

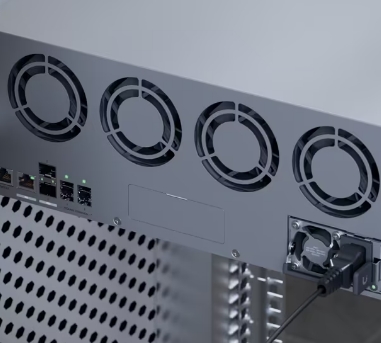

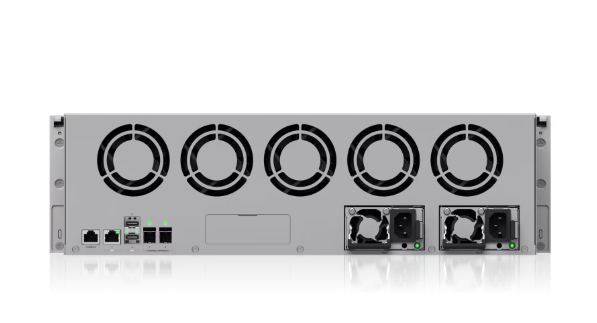

(2) AC input, Hot-swappable power modules
Power Supply

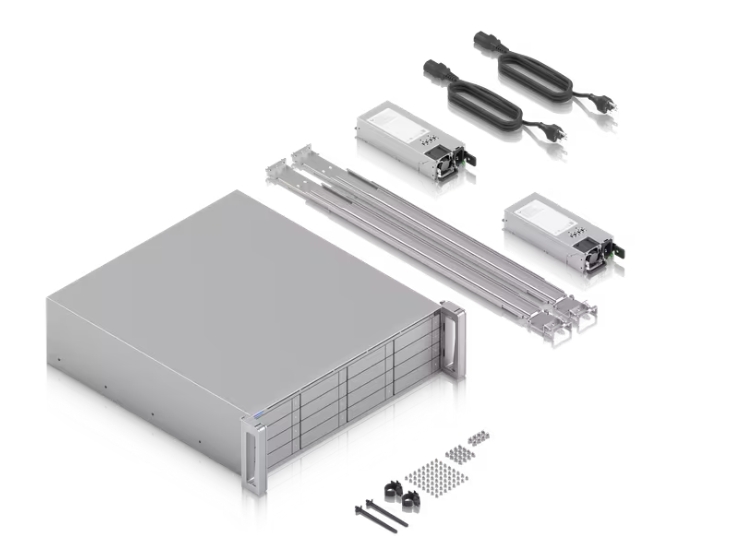

(2) Hot-swappable AC/DC 550W power modules
Processor
Eight-Core ARM N2 at 2.4 GHz
Memory
64 GB
Management
Ethernet
RF Interface
Bluetooth 4.1
Weight
16.1 kg (35.5 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel

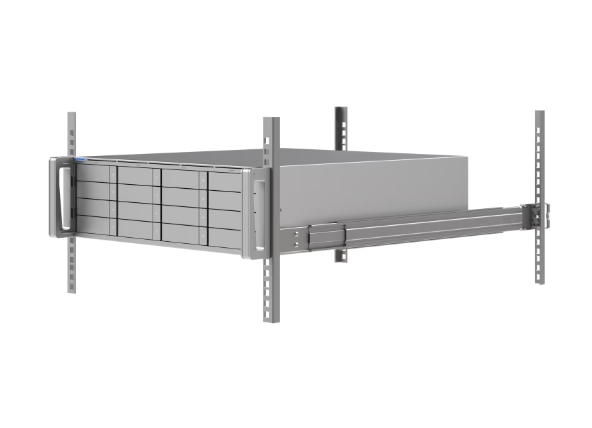

Supported Rack Depth

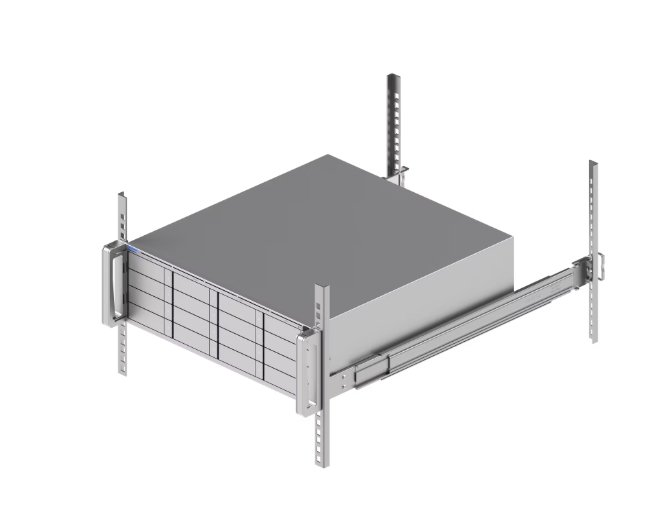

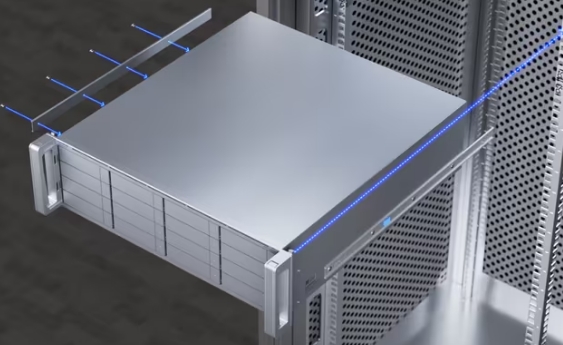

The rails support 600 mm (23.6″) four-post racks with square holes (9.5 x 9.5 mm) Posts depths ranging from 600–1066 mm (23.6–42″)
LEDs
Ethernet
✓
SFP28
✓
HDD
✓
System
✓
Expansion Port
✓
CRPS
✓
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, CE, IC

Supported File Protocols
NFS
✓
SMB
✓
Supported Block Protocols
iSCSI
✓
Supported features on unifi.ui.com
RAID Type
Mirror RAID-Z1 RAID-Z2 RAID-Z3
RAID Group
Multiple
Hot Spare Support
✓
Personal Drive & Shared Drive

✓
SSD Cache
✓
Max. NVMe SSD Capacity Supported
8 TiB
File Encryption
✓
Backup to Remote UNAS
✓
Backup to CIFS/SMB Server
✓
Backup to Cloud Services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi)
✓
Snapshots

✓
Share Links

✓
Time Machine Backup

✓
Client App Support

✓
User Groups

✓
 HDD
Brand Model HDD Firmware ENAS Firmware
Seagate ST24000NM002H-3KS133 SE05 5.1
Seagate ST10000NT001-3LY101 EN01 5.1
Seagate ST8000VN002-2ZM188 SC60 5.1
Seagate ST16000NM000J-2TW103 SN04 5.1
Seagate ST8000NM017B-2TJ103 SN03 5.1
Toshiba HDWG780UZSVA 0501 5.1
Western Digital HUH721212ALE604 LEGNWB01 5.1
Western Digital WD10PURZ-85U8XY0 01.01A01 5.1
Western Digital WD8005FRYZ-01CBLB0 01.01H01 5.1
Western Digital WD103KFBX-68CCLN0 83.00A83 5.1
Western Digital WD120EFBX-68B0EN0 85.00A85 5.1



 NVMe SSD

Brand Model SSD Firmware ENAS Firmware
Crucial CT1000P3PSSD8 P9CR413 5.1
Crucial CT480E100SSD8 VDCR4005 5.1
Crucial CT1000P310SSD8 VACR001 5.1
Kingston OM8SGP42048K2-C00 SDW03104 5.1
Kingston SFYR2S2T0 SGW00110 5.1
KIOXIA EXCERIA G2 SSD ECFA17.3 5.1
Lexar NM790 11296 5.1
Lexar Lexar SSD NM790 8TB V4.2.1-B 5.1
Samsung 990 PRO 5B2QJXD7 5.1
Samsung 9100 PRO without Heatsink 0B2QNXH7 5.1
T-FORCE TM8FF1001T EQFM22.3 5.1
T-FORCE TM8FFW004T SN19644 5.1
Transcend TS1TMTE220S 42BMX1CA 5.1
Western Digital WD_BLACK SN850X HS 8000GB 638211WD 5.1





These HDDs have been qualified in Ubiquiti QA Labs.

For maximum reliability and ongoing firmware validation, we recommend using

UniFi-branded HDDs/SSDs.

Please note that third-party M.2 NVMe SSDs require the M.2 SSD Tray (UACC-SSD-Tray) for installation and cannot be installed directly into the device.
