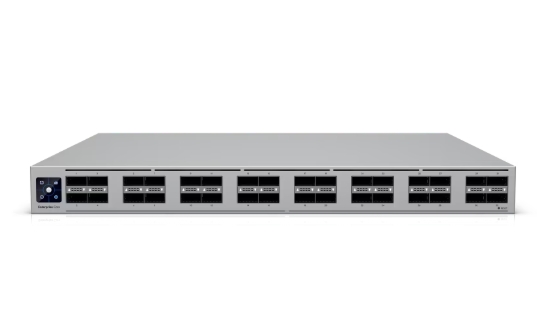

Ubiquiti Enterprise Campus Switch Core 3.2 Tbps (ECS-Core)

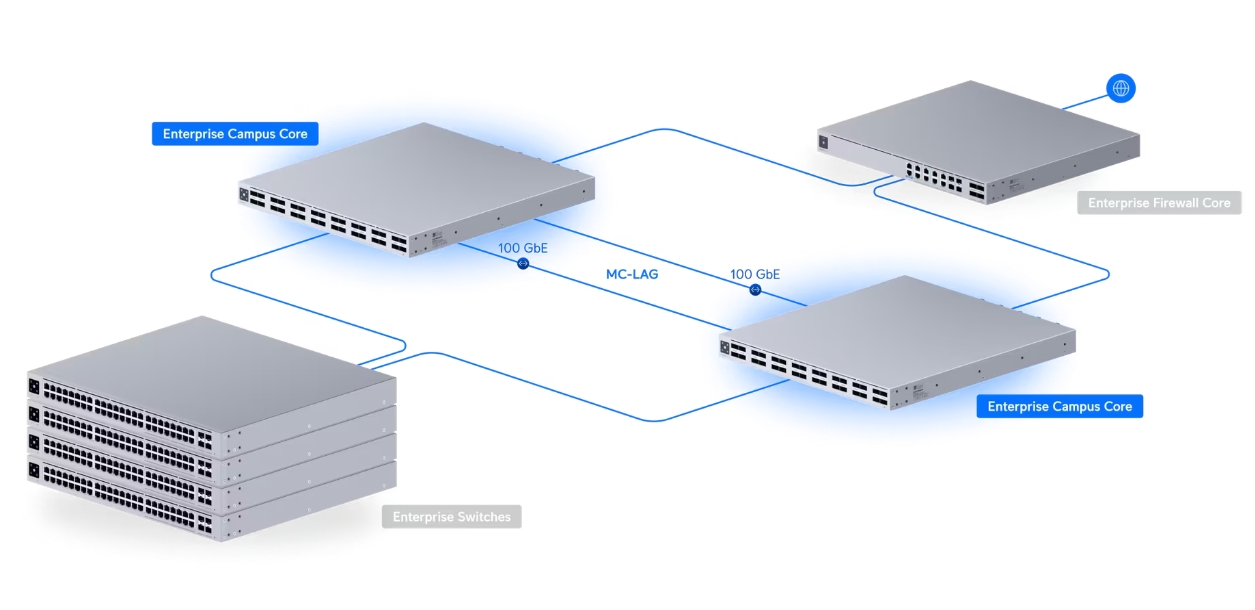

3.2 Tbps high-density 100G Layer 3 Etherlighting™ core switch with MC-LAG support for high availability system design.

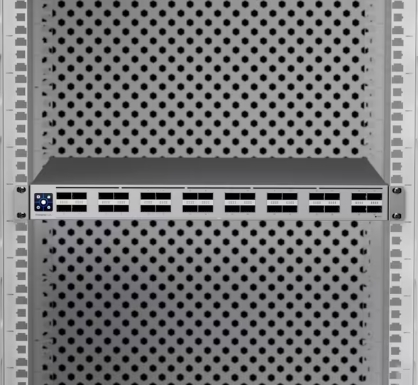

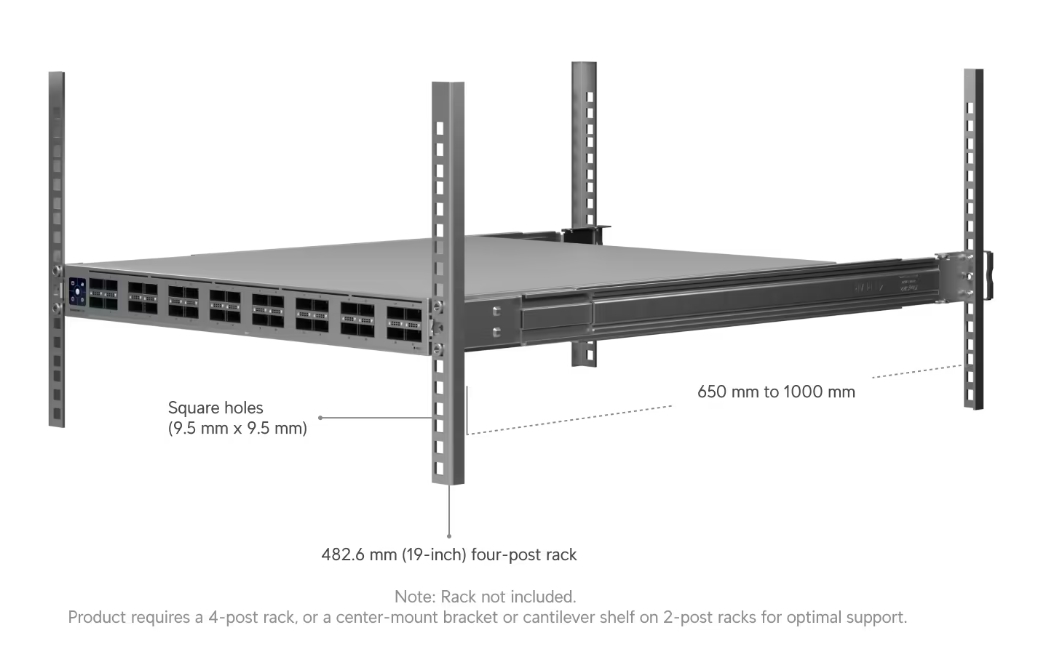

Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.

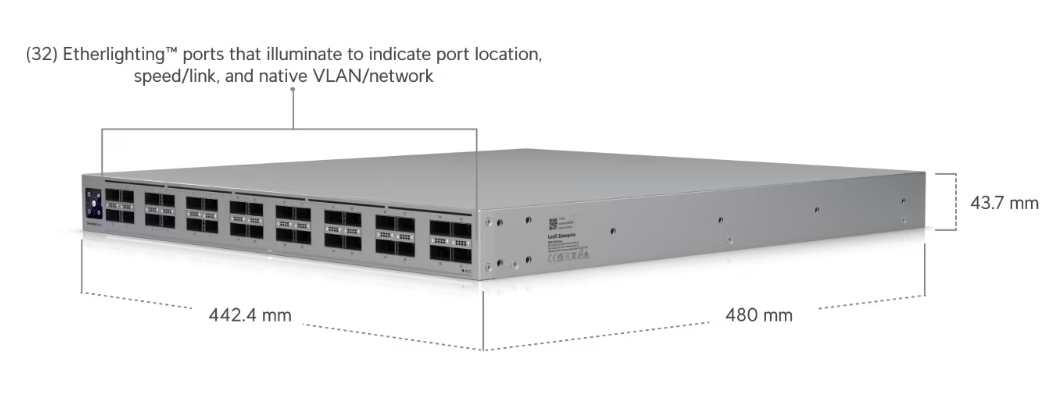

Dimensions
442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9″)

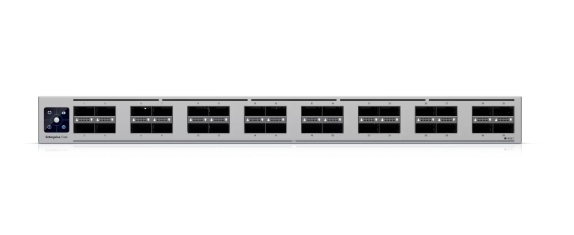

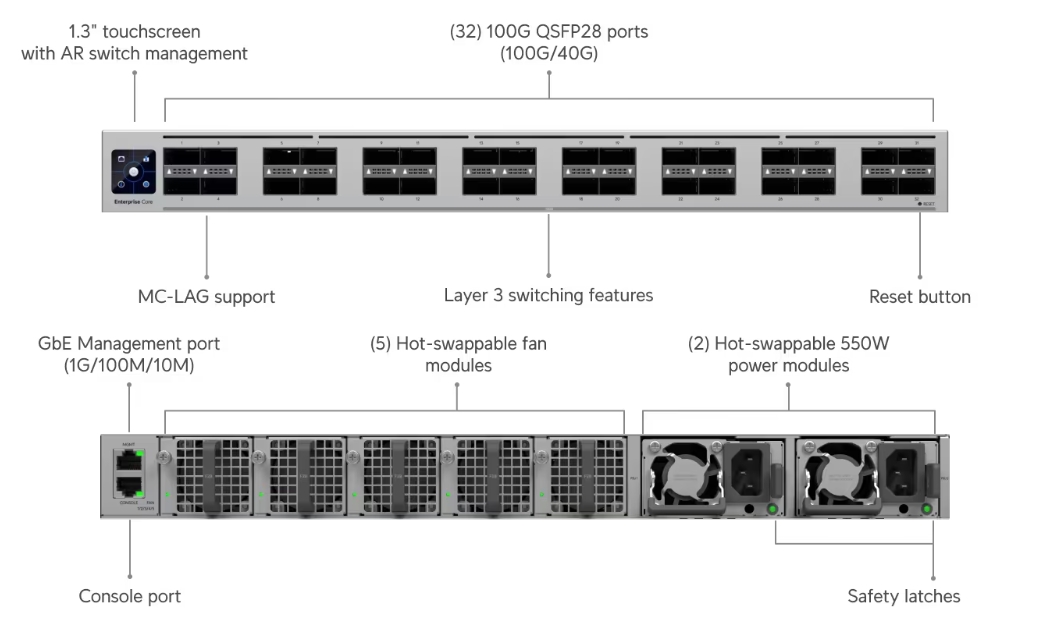

Port Layout
1 GbE RJ45
1 (1G/100M/10M)
100G QSFP28
32 (100G/40G)
Console
1
Redundancy

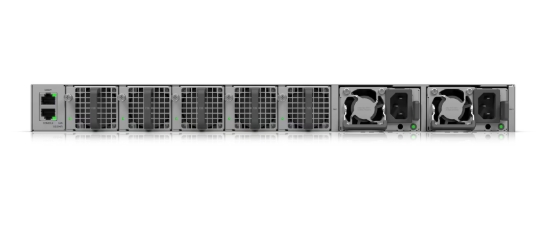

Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans
Layer 3
✓
Form Factor
Rack Mount (1U, Full-Depth)
Etherlighting™
✓
Switching Capacity
6.4 Tbps
Total Non-Blocking Throughput
3.2 Tbps
Forwarding Rate
2.8 Bpps
Supported VLANs
1,000
MAC Address Table Size
128,000
IPv4 Static Routes
256
Packet Buffer Size
24 MB
Access Lists
IPv4
512
MAC
512
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
MC-LAG
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Max. Power Consumption
360W
Power Method
(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method
(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 550W power modules
Supported Voltage Range
100–240V AC
Management
Ethernet AR Serial Console
Heat Dissipation
1,228 BTU/hr
Weight
Without mounting brackets: 9.7 kg (21.4 lb) With mounting brackets: 9.8 kg (21.6 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel

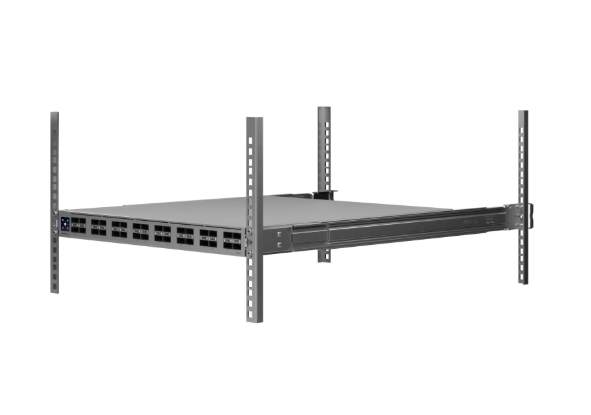

Supported Rack Depth

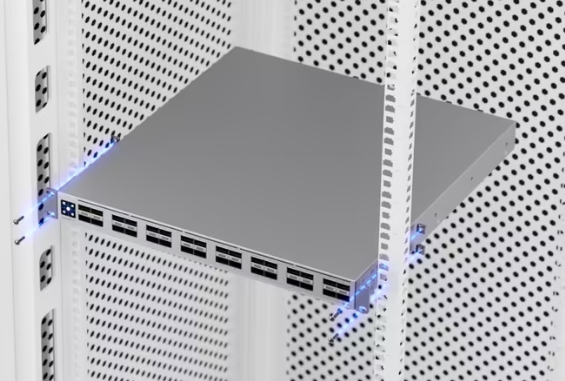

482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display
1.3″ touchscreen
Fan Method
(5) Hot-swappable fan modules
ESD Protection
Air: ± 12KV; contact: ± 8KV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
QSFP28
✓
LEDs
Ethernet
✓
PSU
✓
Fan
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC
Application Requirements
UniFi Network
Version 10.6.101 and later
