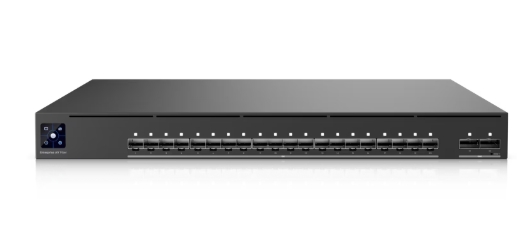

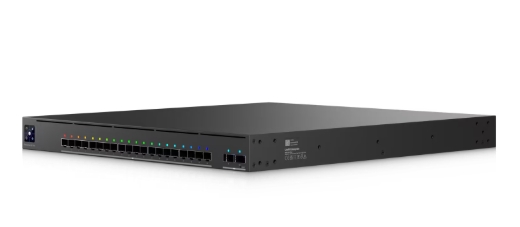

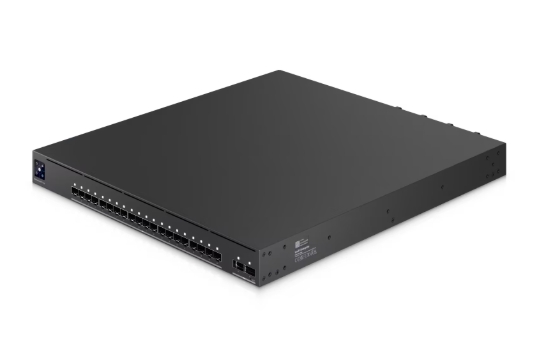

Ubiquiti Unifi Switch Enterprise Audio/Video Fiber (EAV-Fiber)


Pretul afisat contine TVA (21%).

20.374,10 lei

Ubiquiti Unifi Switch Enterprise Audio/Video Fiber (EAV-Fiber)

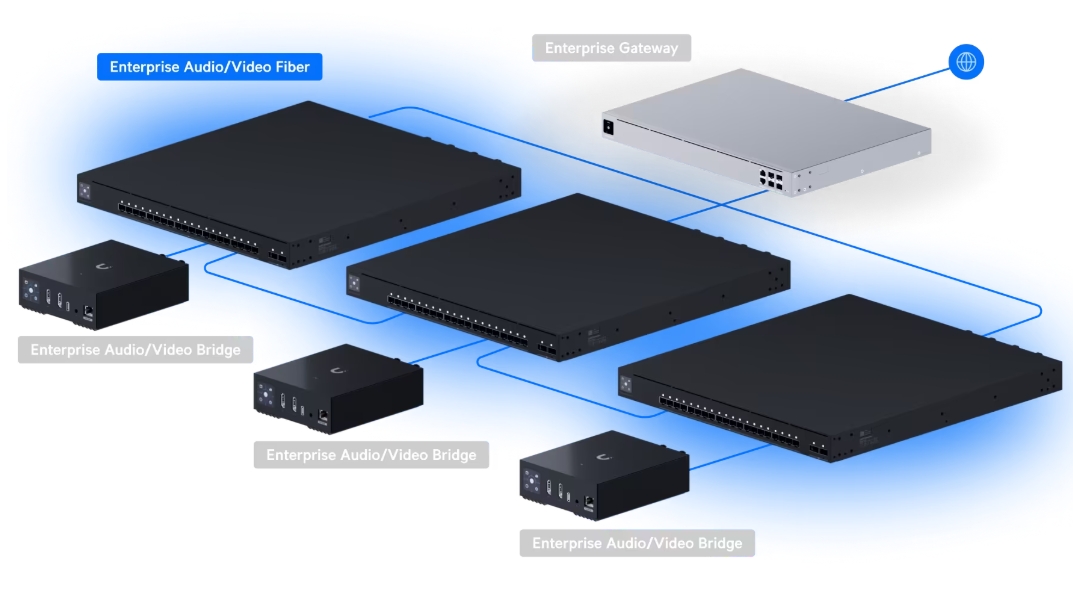

Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support.

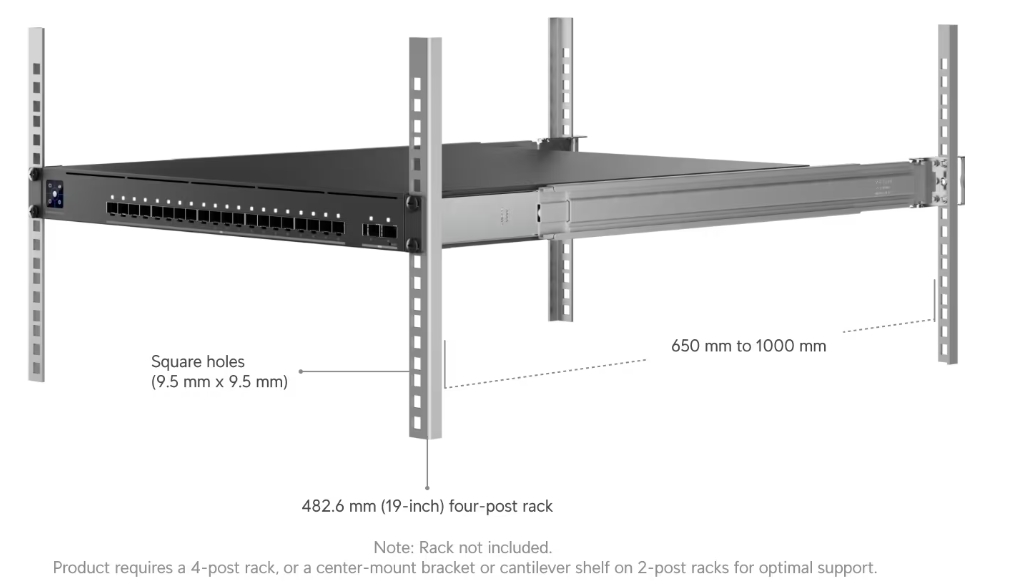

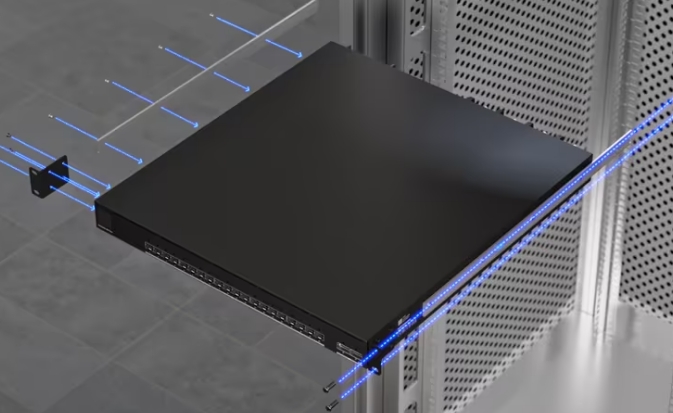

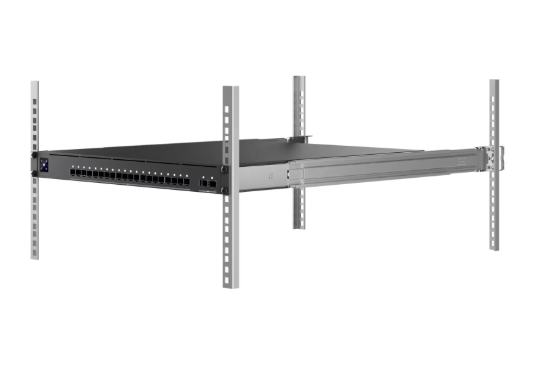

Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
EAV-Fiber was previously named EAV-Aggregation. This is a naming update only; no hardware changes have been made.





SKU: EAV-Fiber Categorii: , , , , ,

Dimensions

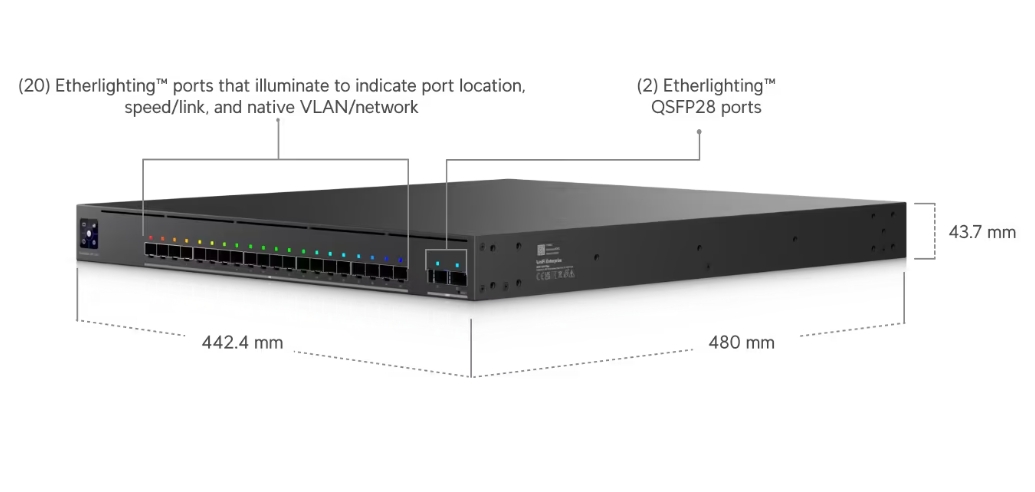

442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7″)

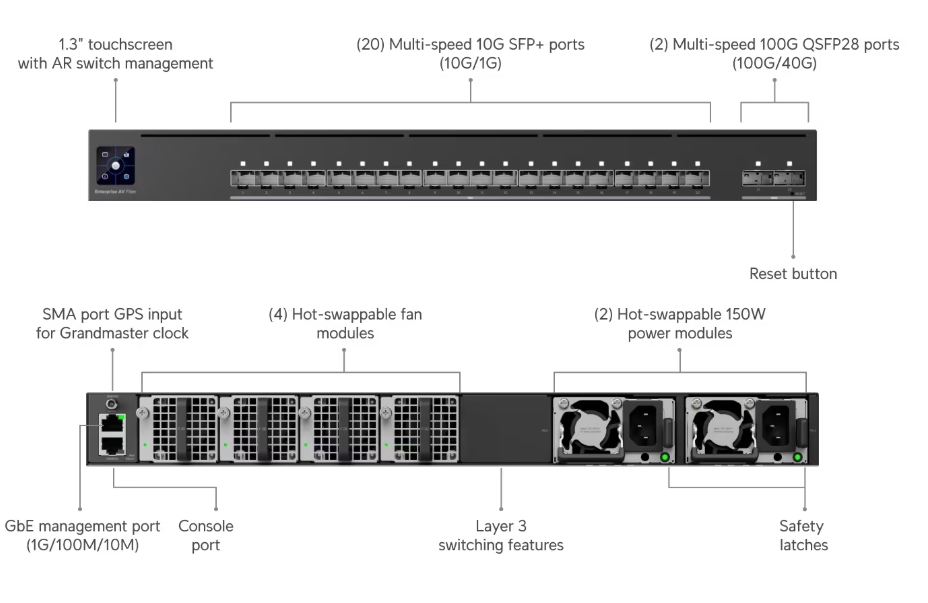

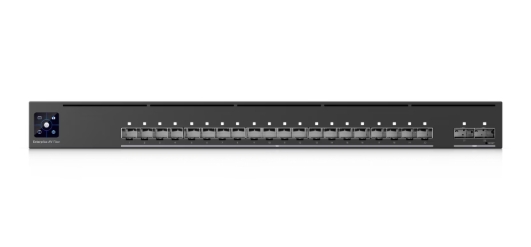

Port Layout
1 GbE RJ45
1 (1G/100M/10M)
10G SFP+
20 (10G/1G)
100G QSFP28
2 (100G/40G)
Console
1
SMA
1
Redundancy
(2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Layer 3
Form Factor
Rack Mount (1U, Full-Depth)
Etherlighting™

Switching Capacity
800 Gbps
Total Non-Blocking Throughput
400 Gbps
Forwarding Rate
595 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
IPv4 Static Routes
512
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256

DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)

LACP Port Aggregation
STP & RSTP
QoS (DSCP)
PTPv2
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Virtual Network Override

Max. Power Consumption
150W
Power Method
(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method

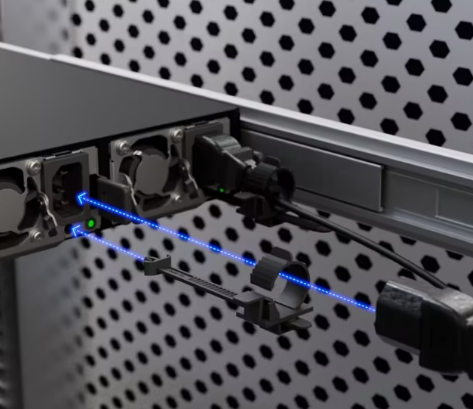

(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 150W power modules
Supported Voltage Range
100–240V AC
Management
Ethernet AR Serial Console
Heat Dissipation
512 BTU/hr
Weight
Without mounting brackets: 8.95 kg (19.7 lb) With mounting brackets: 9.05 kg (20 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display
1.3″ touchscreen
Fan Method
(4) Hot-swappable fan modules
ESD Protection
Air: ± 12KV, contact: ± 8KV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
SFP+
QSFP28
LEDs
Ethernet
PSU
Fan
NDAA Compliant
Certifications
CE, FCC, IC
