Ubiquiti Switch Enterprise Audio/Video XG 24 PoE (EAV-XG-24-PoE-EU)

Compara
Pretul afisat contine TVA (21%).

27.929,67 lei

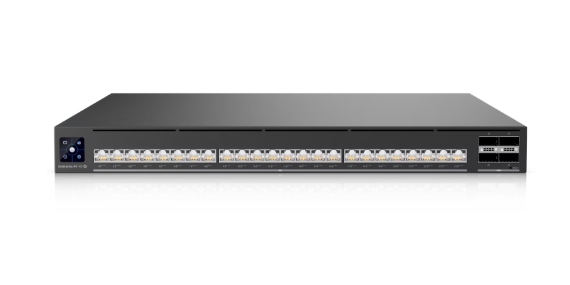

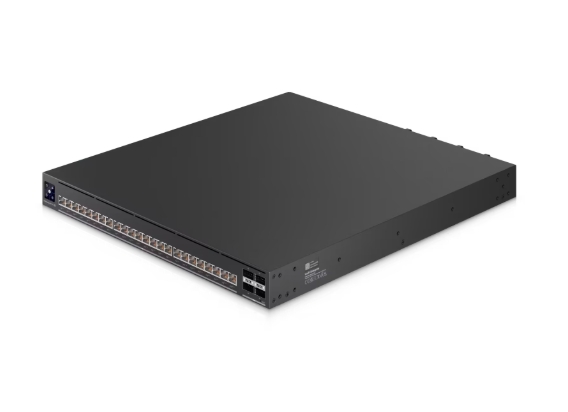

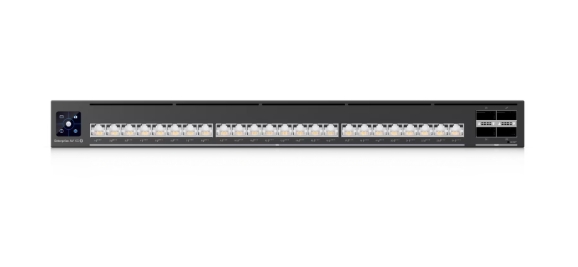

Ubiquiti UniFi Switch Enterprise Audio/Video XG 24 PoE – RJ45 (EAV-XG-24-PoE (2150W)



Enterprise Audio/Video switch with (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support.

Note. 2,150W total PoE availability requires Shared Mode (coming soon).

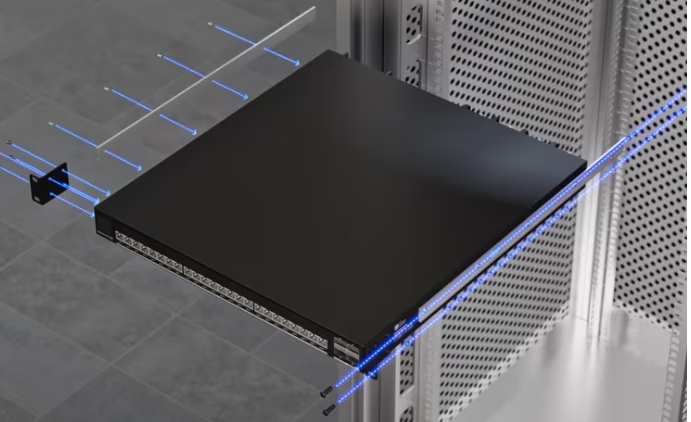

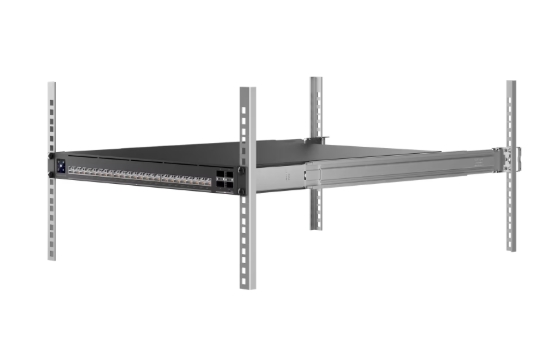

Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
EAV-XG-24-PoE was previously named EAV-24-PoE. This is a naming update only; no hardware changes have been made.





SKU: EAV-XG-24-PoE-EU Categorii: , , , ,

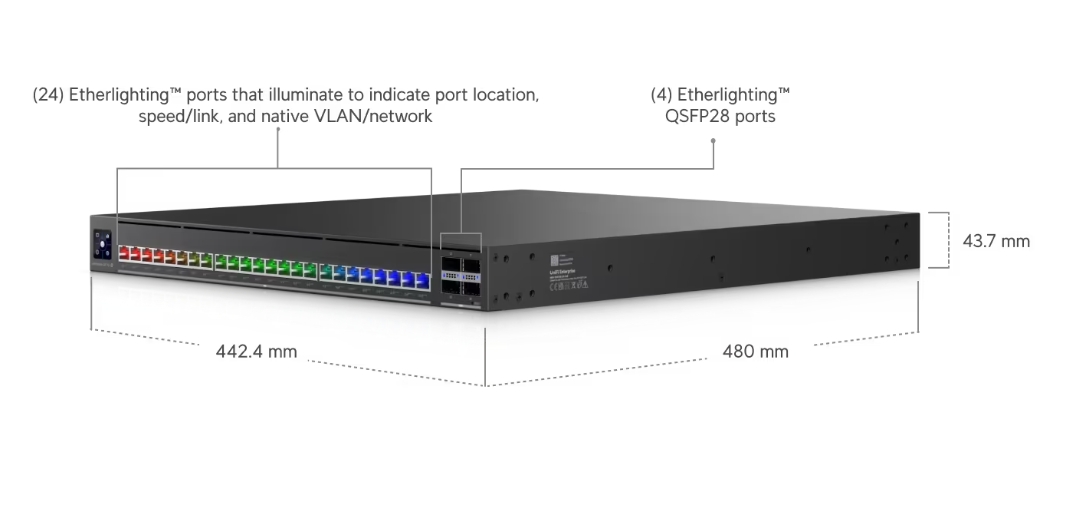

Dimensions
442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7″)

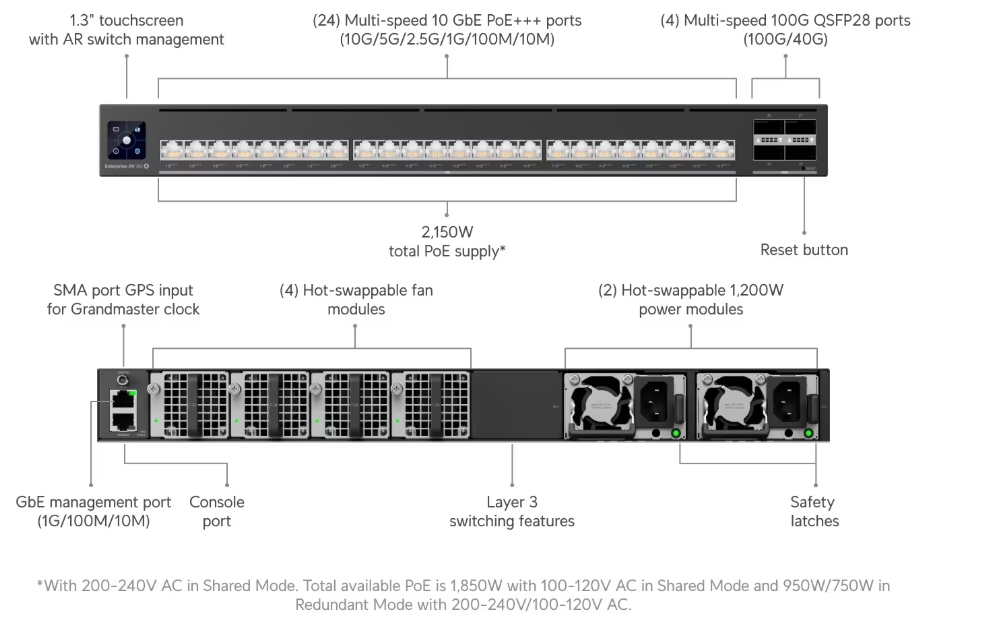

Port Layout
1 GbE RJ45
1 (1G/100M/10M)
10 GbE RJ45
24 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
100G QSFP28
4 (100G/40G)
Console
1
SMA
1
Max. PoE Output
Up to PoE+++
Total PoE Availability
200-240V AC Shared Mode: 2,150W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules
Redundancy

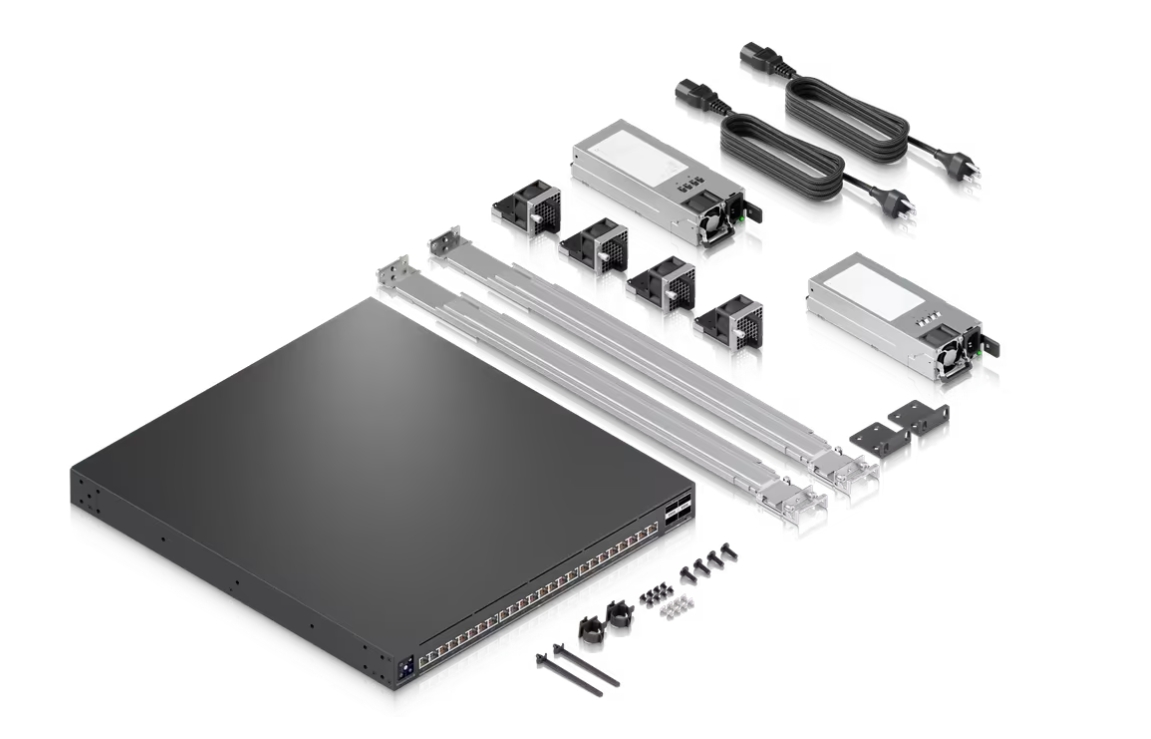

(2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Layer 3
✓
Form Factor
Rack Mount (1U, Full-Depth)

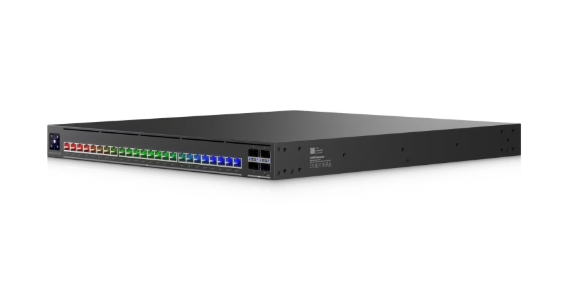

Etherlighting™
✓

Switching Capacity
1,280 Gbps
Total Non-Blocking Throughput
640 Gbps
Forwarding Rate
810 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
IPv4 Static Routes
512
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256

DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
PTPv2
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓

PoE Ports
PoE+++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
150W (Excluding PoE Output) 2,400W (Including PoE Output)
Power Method
(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method

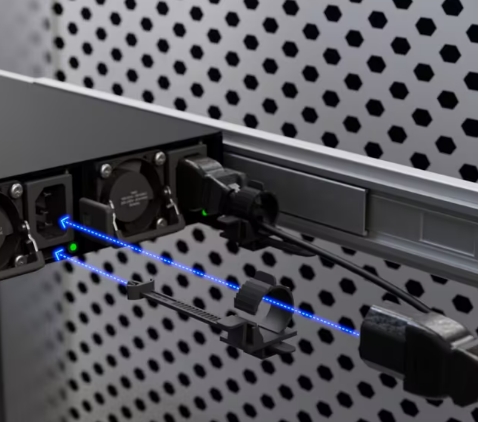

(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 1,200W power modules
Supported Voltage Range
100–240V AC
Management
Ethernet AR Serial Console
Heat Dissipation
512 BTU/hr (Excluding PoE Output)
Weight
Without mounting brackets: 9.85 kg (21.7 lb) With mounting brackets: 9.95 kg (21.9 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth

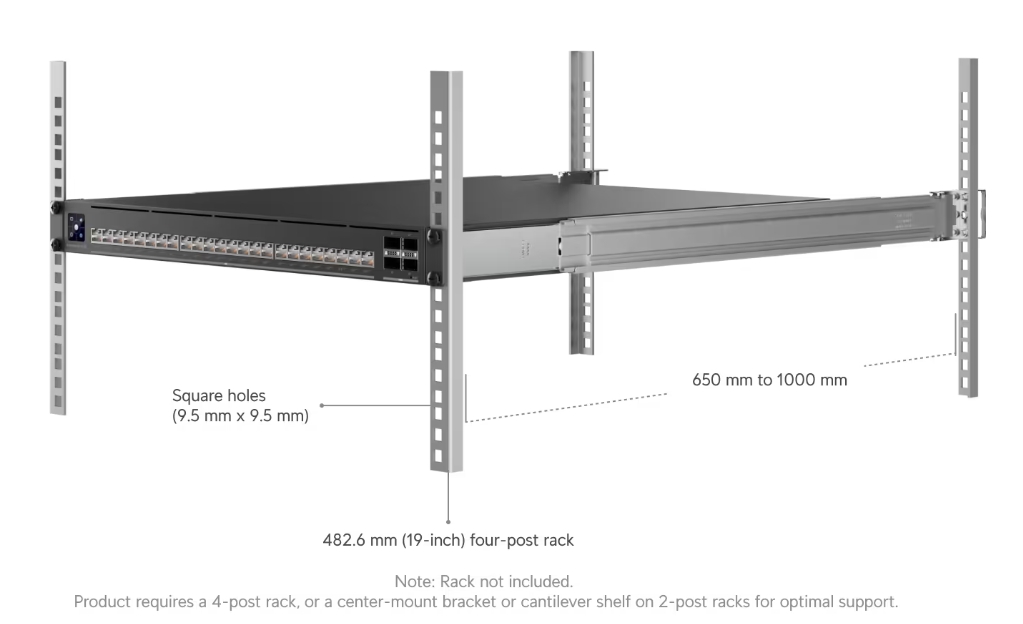

482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display
1.3″ touchscreen
Fan Method
(4) Hot-swappable fan modules
ESD Protection
Air: ± 2KV, contact: ± 8KV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
QSFP28
✓
LEDs
Ethernet
✓
PSU
✓
Fan
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC
