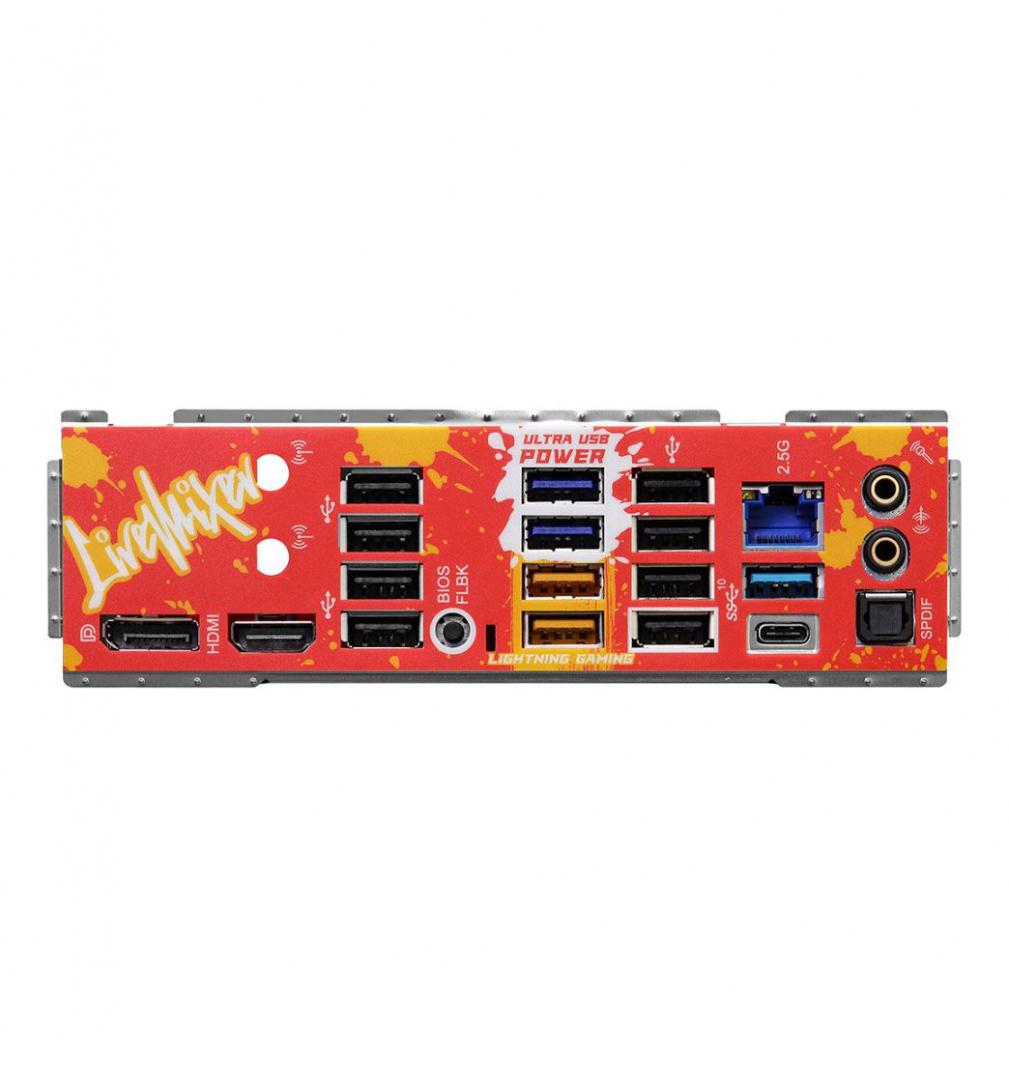

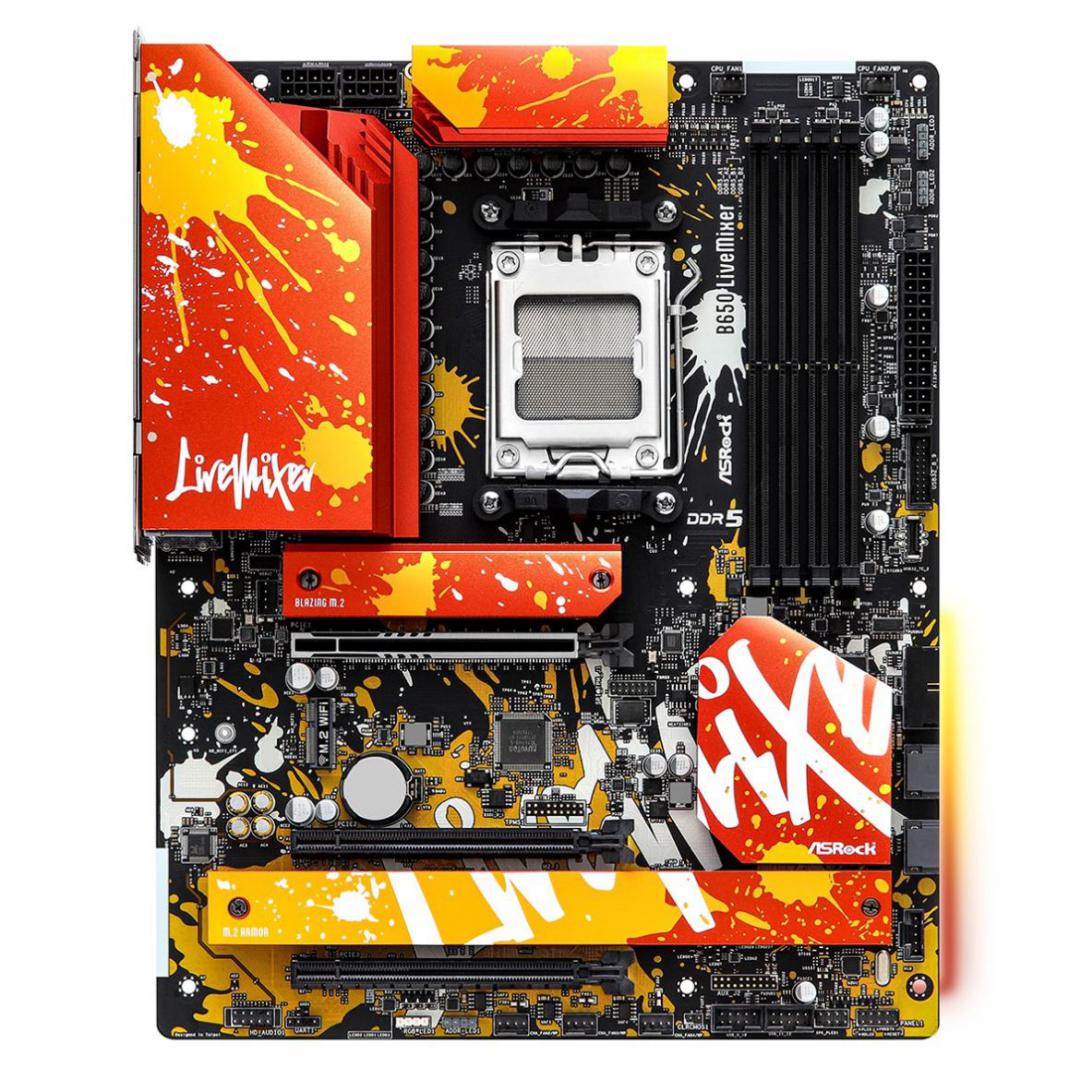

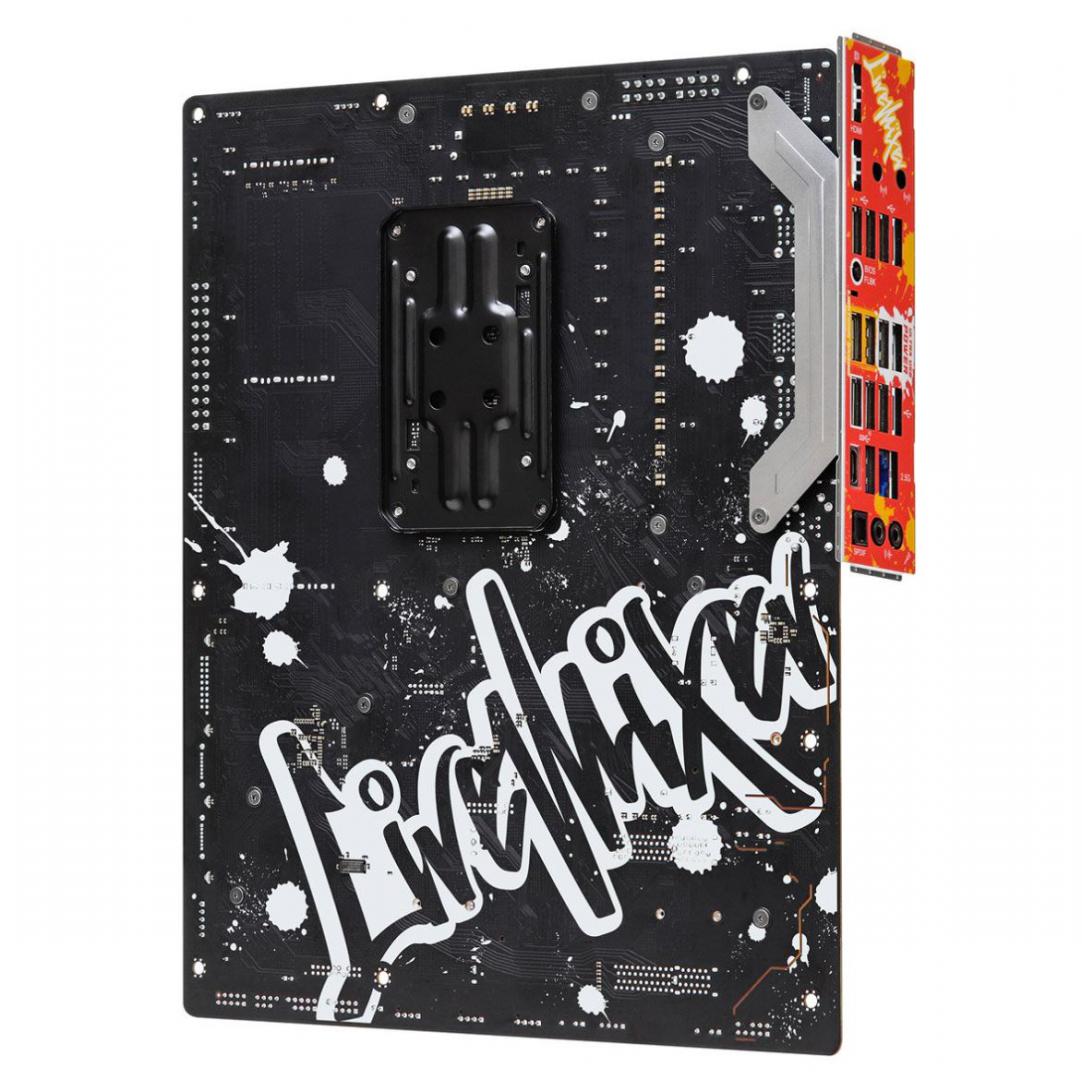

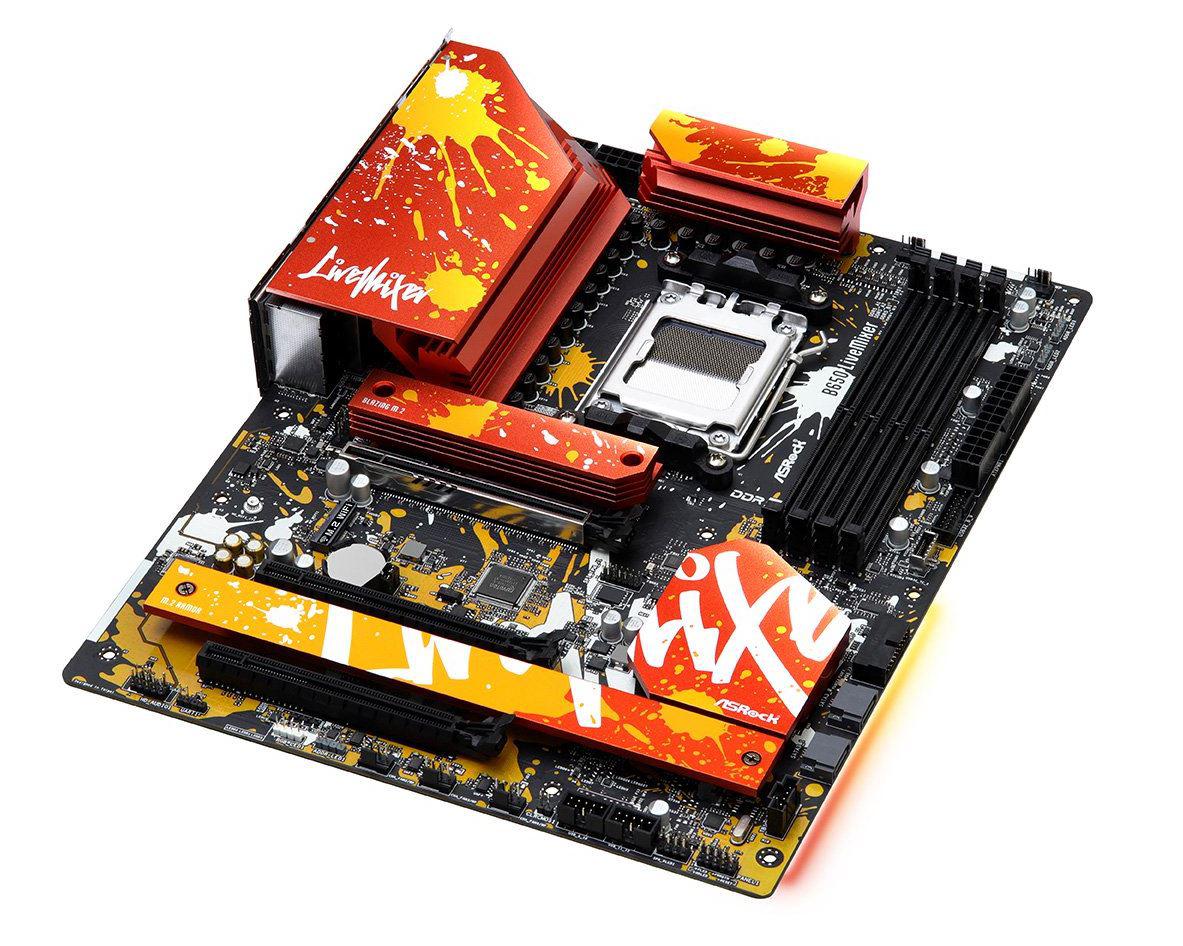

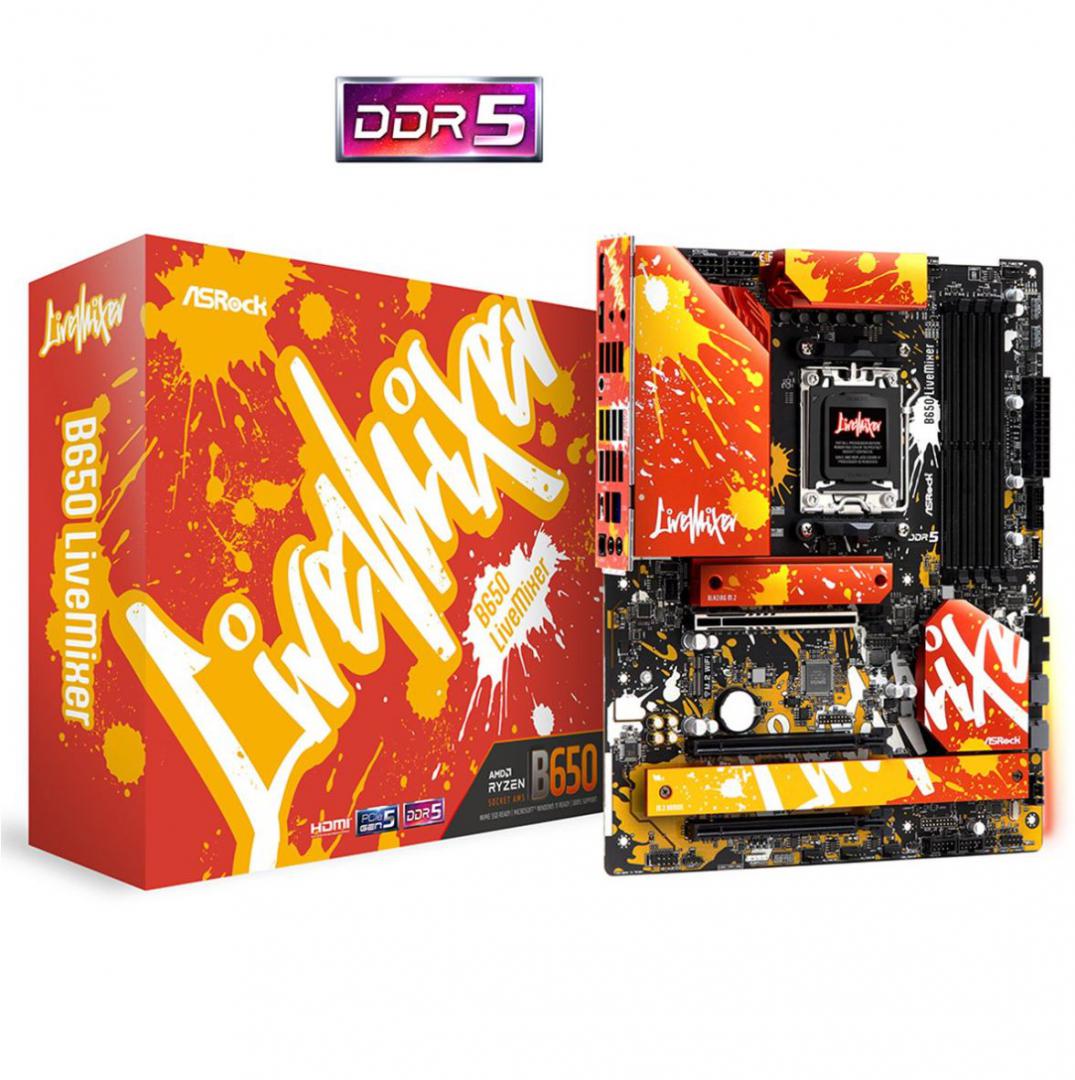

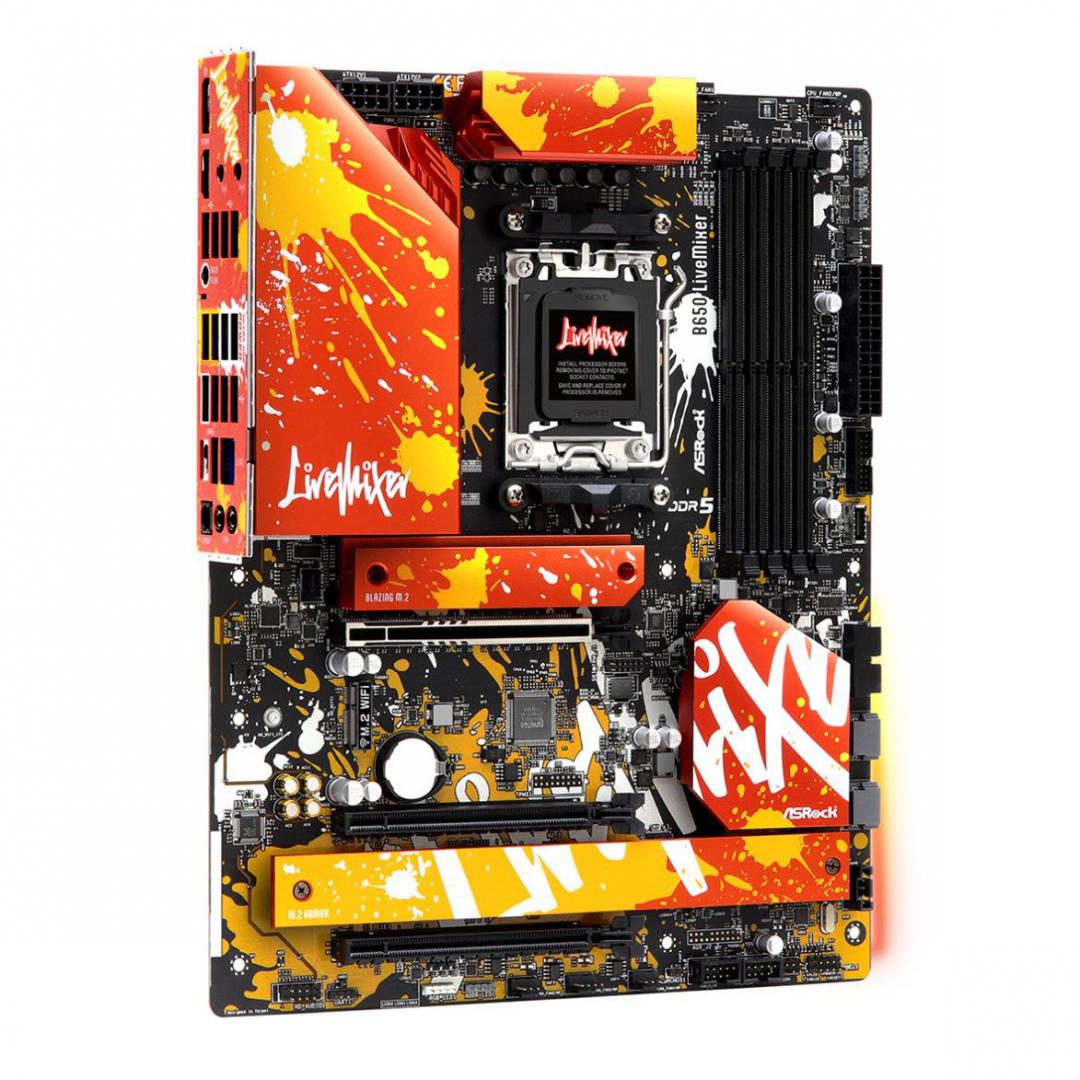

Placa de baza B650 LIVEMIXER
Supports AMD Ryzen™ 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 6400+(OC)
3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4),
2 Hyper M.2 (PCIe Gen4x4),
2 SATA3
1 USB 3.2 Gen2x2 Type-C (Front),
1 USB 3.2 Gen2 Type-C (Rear),
1 USB 3.2 Gen2 Type-A (Rear),
8 USB 3.2 Gen1 (4 Rear, 4 Front),
12 USB 2.0 (8 Rear, 4 Front)
Realtek 2.5G LAN
Switch 5 porturi Hikvision DS-3E0105D-E; L2, Unmanaged, 5 × 10/100 Mbps adaptive Ethernet ports, Plug & play, Support ADI/ADIX, Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, desktop plastic switch, material: ABS dimensiuni: 83.00 mm × 22.00 mm × 52.00 mm, 0.093 kg (DS-3E0105D-O)
Switch Hikvision DS-3E0508-O: 8 × Gigabit RJ45 port maxim 3W, tensiune alimentare: 5VDC, 0.6A, dimensiuni: 145.00 mm × 25.60 mm × 68.45 mm, greutate: 0.24kg, montare pe birou sau pe perete. (DS-3E0508-O)
Switch POE 4 porturi Hikvision DS-3E0105P-E/M(C), fara management; 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port, IEEE 802.3af,IEEE 802.3at, PoE power budget 45W, distanta transmisie: 300m; (DS-3E0105P-E/M(C))
Switch Hikvision DS-3E0505-O: 5 × Gigabit RJ45 ports, 10 Gbps, 1000M network access, alimentare: 5VDC, 0.6A, dimensiuni: 105.00 mm × 27.60 mm × 83.10 mm, greutate: 0.17kg, montare pe birou sau pe perete. (DS-3E0505-O)
