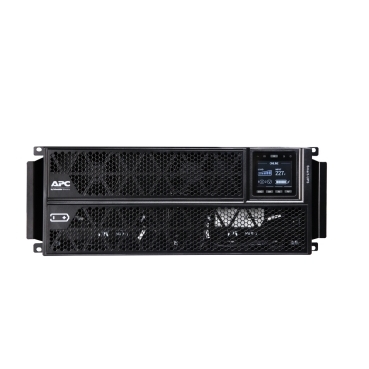

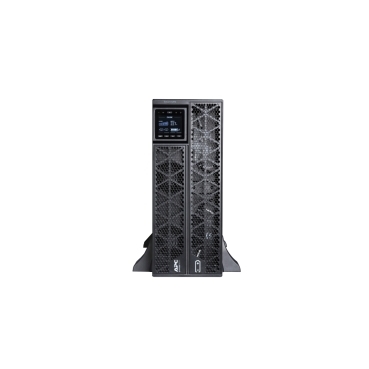

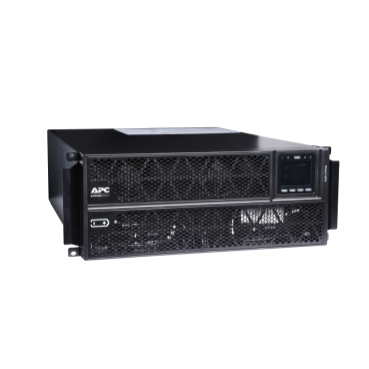

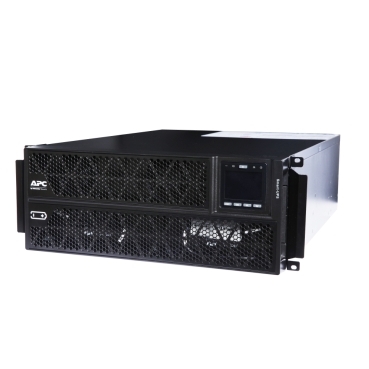

APC Smart-UPS RT, Rack/Tower,online dubla-conversie 5000VA / 5000W (SRTG5KXLI)


Pretul afisat contine TVA (19%).

23.990,40 lei

Compara
Overview
Lead time Usually in Stock
Main
Run time for load

W

information_stroke
Min-max: 500-5000 W
2min 50s
Max. Capacity Used
information_stroke

100 %

Main Input Voltage 230 V
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Rated power in W 5000 W
Rated power in VA 5000 VA
output connection type 2 IEC 60320 C13
1 IEC 60320 C19
output connector type Hard wire 3-wire (H N + E) 1
Battery type Lead-acid battery
provided equipment Smart UPS signalling RS-232 cable
User manual
USB cable
General
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Physical
Height 17.78 cm
Width 44 cm
Depth 62 cm
Net weight 51.9 kg
Mounting preference No preference
Mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible No
Input
network frequency 40…70 Hz auto-sensing
number of input connectors 1 hard wire 3-wire (1P + N + E)
input voltage limits 160…285 V
Maximum input current 30 A
Switching current capacity 40 A
Output
Maximum configurable power in W 5000 W
Harmonic distortion Less than 2 %
output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
Bypass type Internal bypass (automatic and manual)
full load runtime 00:03:30 5000 W
half load runtime 00:10:20 2500 W
Maximum configurable power in VA 5000 VA
Conformance
Product certifications CE
standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
relative humidity 0…95 % non-condensing
Operating altitude 0…6600 ft
Ambient air temperature for storage -15…45 °C
storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 1108.95 Btu/h
IP degree of protection IP20
Batteries & Runtime
Run Time View Runtime Graph

action_new_window
Efficiency View Efficiency Graph

action_new_window
Number of battery filled slots 2
Number of battery free slots 0
Battery recharge time 4 h
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Battery voltage +/- 96 V
battery charger power 239 W rated
Battery power in VAH 960 VAh capacity
960 VAh runtime
Battery life 3…5 year(s)
Replacement battery APCRBC170

action_new_window
battery option SRTG192XLBP4 1 2651 VAh
SRTG192XLBP4 2 4424 VAh
SRTG192XLBP4 3 6314 VAh
SRTG192XLBP4 4 8118 VAh
Extended runtime 1
Communications & Management
Preinstalled device Network management card 3 with environmental monitoring
alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off Yes
Surge Protection and Filtering
Surge energy rate 600 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 27.5 cm
Package 1 Width 79 cm
Package 1 Length 59 cm
Package 1 Weight 59 kg
Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
