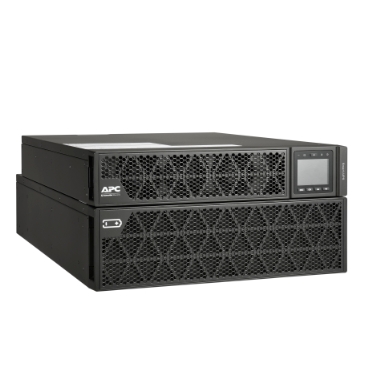

APC Smart-UPS RT,Rack/Tower, online dubla-conversie 8000VA / 8000W (SRTG8KXLI)
| Lead time | Usually in Stock |
|---|
|
Run time for load
W information_stroke
Min-max: 800-8000 W
|
4min 55s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
100 % |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 8000 W |
| Rated power in VA | 8000 VA |
| output connection type | 2 IEC 60320 C13 1 IEC 60320 C19 |
| output connector type | Hard wire 3-wire (H N + E) 1 |
| Battery type | Lead-acid battery |
| provided equipment | Smart UPS signalling RS-232 cable User manual |
| Number of power module free slots | 0 |
|---|---|
| Number of power module filled slots | 0 |
| Redundant | No |
| Height | 21.7 cm |
|---|---|
| Width | 44 cm |
| Depth | 68 cm |
| Net weight | 101.44 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | No |
| network frequency | 40…70 Hz auto-sensing |
|---|---|
| number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| input voltage limits | 160…285 V |
| Maximum input current | 30 A |
| Switching current capacity | 40 A |
| Maximum configurable power in W | 8000 W |
|---|---|
| Harmonic distortion | Less than 2 % |
| output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Double conversion online |
| full load runtime | 00:04:48 8000 W |
| half load runtime | 00:14:00 4000 W |
| Maximum configurable power in VA | 8000 VA |
| Product certifications | CE |
|---|---|
| standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…6600 ft |
| Ambient air temperature for storage | -15…45 °C |
| storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 55 dB |
| Heat dissipation | 1774 Btu/h |
| IP degree of protection | IP20 |
| Run Time | View Runtime Graph
action_new_window
|
|---|---|
| Efficiency | View Efficiency Graph
action_new_window
|
| Number of battery filled slots | 2 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery voltage | +/- 96 V |
| battery charger power | 392 W rated |
| Battery power in VAH | 1680 VAh capacity 1680 VAh runtime |
| Battery life | 3…5 year(s) |
| battery option | SRTG192XLBP4 1 3456 VAh SRTG192XLBP4 2 5279 VAh SRTG192XLBP4 3 6804 VAh SRTG192XLBP4 4 9126 VAh |
| Extended runtime | 1 |
| Preinstalled device | Network management card 3 with environmental monitoring |
|---|---|
| alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 41.4 cm |
| Package 1 Width | 79 cm |
| Package 1 Length | 59 cm |
| Package 1 Weight | 103.46 kg |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
