Run time for load
Min-max: 60-600 W
W —
Max. Capacity Used
100%
Output power capacity
600 Watts / 1.0kVA
Output Connections
(6) IEC 60320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C14
Cord Length
1.5meters

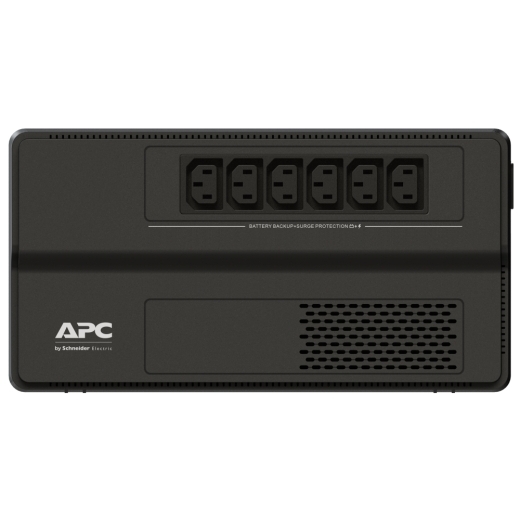

APC Easy UPS, 1000VA, Floor/Wall Mount, 230V, 6x IEC C13 outlets, AVR
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Includes: User manual
- Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Wall-mount holes
Allow flexibility for setup in tight locations and mounting on wall or other surfaces.
Easy UPS Features & Benefits
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Protection
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Manageability
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Features
Cold-start capable
Provides temporary battery power when the utility power is out.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Availability
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Output
Max Configurable Power (Watts)
600 Watts / 1.0kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Unsynchronised
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations
170 – 280V
Number of Power Cords
1
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
8hour(s)
Nominal Battery Voltage
12 V
Expected Battery Life (years)
3 – 5
Efficiency
Surge Protection and Filtering
Surge energy rating
156Joules
Physical
Maximum Height
93MM, 9.25CM
Maximum Width
161MM, 16.05CM
Maximum Depth
305MM, 30.5CM
Net Weight
5.7KG
Shipping weight
6.0KG
Shipping Height
237MM, 23.7CM
Shipping Width
373MM, 37.3CM
Shipping Depth
143MM, 14.3CM
Color
Black
SCC Codes
10731304338229
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 90 %
Operating Elevation
0 – 2032.1meters
Storage Temperature
-20 – 50 °C
Storage Relative Humidity
0 – 90 %
Storage Elevation
0 – 15240meters
Audible noise at 1 meter from surface of unit
40.0dBA
Protection Class
IP20
Conformance
Approvals
CE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
