Lifecycle
- Obsolete Date 31-12-2099
- End of support date 31-12-2104
Specifications
- Connectivity, standard Wi-Fi 6 (IEEE 802.11ax) Bluetooth 5 and 802.15.4 radio 2.4 GHz–Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
- Mounting For use with optional mounting kit, see the ordering guide.
- Warranty Limited lifetime warranty. See the warranty duration.
- Wi-Fi antenna Built-in omni-directional antennas with 5.4 dBi gain, max, for 5 GHz antennas and 3.2 dBi gain, max, for 2.4 GHz antennas
- Radio coverage AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2×2 MIMO and 2.4 GHz 2×2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
- Power consumption Maximum (worst-case) power consumption: 15.6W Maximum (worst case) power consumption in idle mode: 4.2W Maximum (worst case) power consumption in deep-sleep mode: 1.7 Power sources sold separately
- Ports E0: 10/100/1000BASE-T (RJ-45)
- Regulatory FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN/UL 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs:  EN 50155:2017-Railway Applications  EN 50121-1:2017-Railway EMC  EN 50121-3-2-Railway EMC  EN 50121-4:2016-Railway Immunity  IEC 61373 ed2:2008-Railway Shock and Vibration
- Certifications CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED™ ac (with wave 2 features) Wi-Fi CERTIFIED Location™
- Weight 1.03 kg
- Product dimensions (imperial) 4.3 x 6.5 x 6.5 in
- Product dimensions (metric) 11 x 16.5 x 16.5 cm
- Weight 2.27 lbs
Quickspecs
Overview

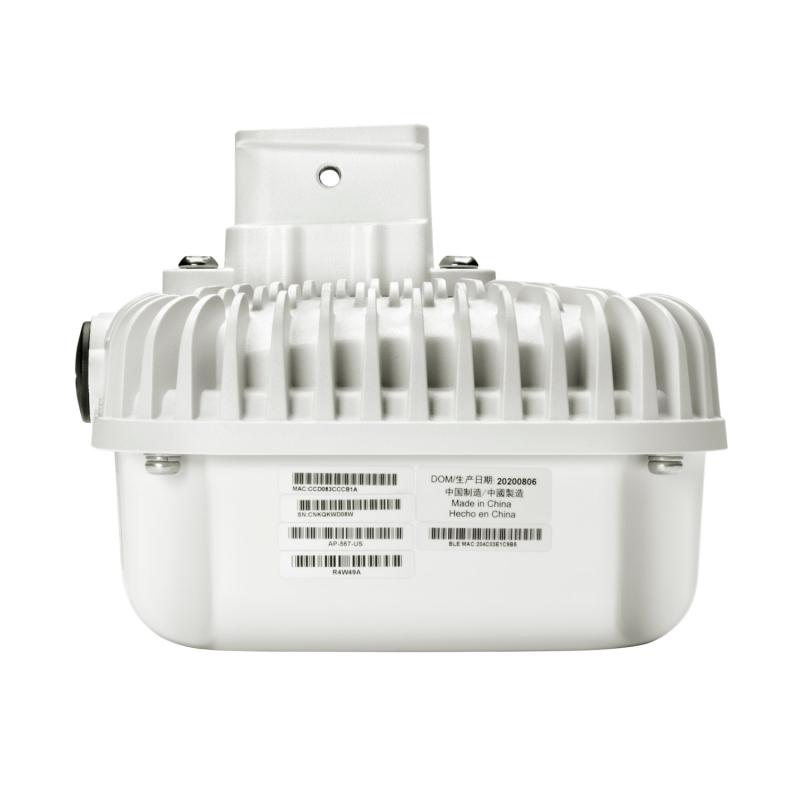

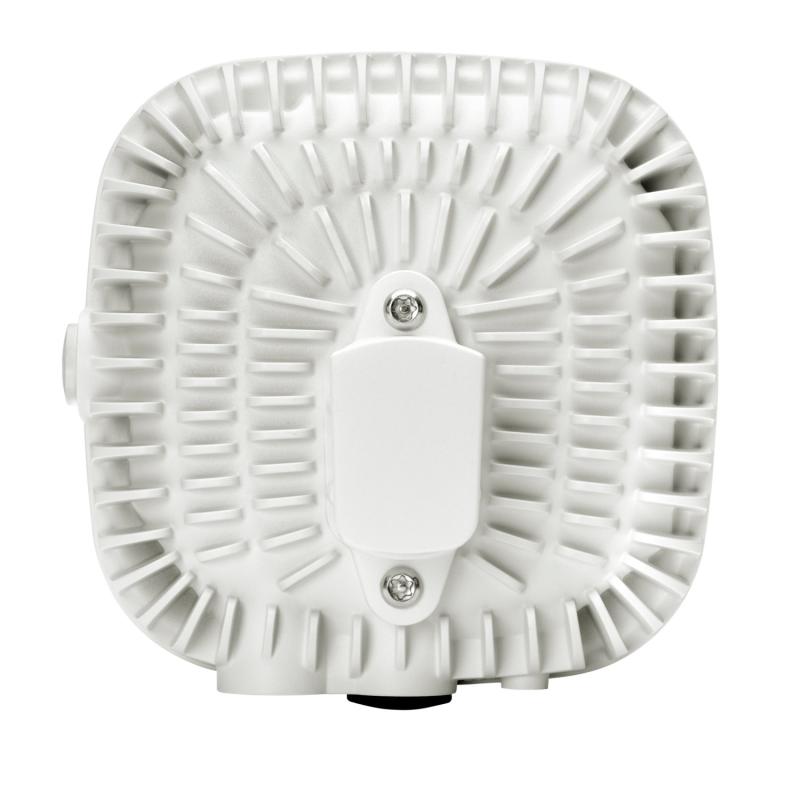

The HPE Aruba Networking 560 Series Outdoor Access Points provide cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560 Series delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor APs are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using Zero Touch Provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 560 Series outdoor APs include a limited lifetime warranty.
What’s new
- Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps maximum aggregate data rate and are ideal for outdoor and warehouse environments.
- Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40ËšC to +65ËšC).
- Internet of Things (IoT)-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee.
- Small form factor for flexible deployment.
- Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
- Dynamic Segmentation and policy enforcement firewalls (PEF) that automatically enforces consistent policies across all networks, keeping users and devices secure.
Features
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
It supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (MU-MIMO), and target wait time (TWT).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
For enhanced device assurance, the access points include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.
The AP simplifies policy enforcement by using the policy enforcement firewall to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.
The HPE Aruba Networking 560 Series Outdoor Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
Simple Access With Enhanced Security
Target wake time (TWT) improves battery life of IoT devices.
The access point supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
HPE Aruba Networking 560 Series Outdoor Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
IoT Ready
Entry-level Outdoor Wi-Fi 6
HPE Aruba Networking 560 Series Outdoor Access Points are ideal for environmentally challenging locations and can endure extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and maximum 165 mph wind speeds.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40ËšC to +65ËšC, including full solar loading.
With maximum aggregate data rate of 1.49 Gbps (HE80/HE20), the series delivers the speed and reliability needed for most environments.
Compatible products
- HPE Aruba Networking PC-AC-EC 250V/10A 1.8m C13 to CEE7/7 (EU) AC Power Cord
- HPE Aruba Networking PC-AC-IT 250V/10A 1.8m C13 to CEI 23-50 (IT) AC Power Cord
- HPE Aruba Networking PC-AC-UK 250V/10A 1.8m C13 to BS1363 (UK) AC Power Cord
- HPE Aruba Networking PC-AC-ZA 250V/10A 1.8m C13 to SANS 164-1 (ZA) AC Power Cord
- HPE Aruba Networking PC-AC-DEN 250V/10A 1.8m C13 to AFSNIT 107-2-D1 (DK) AC Power Cord
- HPE Aruba Networking PC-AC-SWI 220V/10A 1.8m C13 to SEV 1011 (SW) AC Power Cord
- HPE Aruba Networking AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Midspan Injector
Documents
- HPE Aruba Networking 560 Series Outdoor Access Points QuickSpecs
- Interconnected retail on a massive scale – The Home Depot
- HPE Aruba Networking 560 Series Outdoor Access Points
- Interconnected retail on a massive scale – The Home Depot
1 Bluetooth is a trademark owned by its proprietor and used by Hewlett Packard Enterprise under license. All third-party marks are property of their respective owners.
