Lifecycle
- Obsolete Date 31-12-2099
- End of support date 31-12-2104
Specifications
- PoE capability 370W Class 4 PoE/PoE+
- Product dimensions (metric) 4.4 x 44.2 x 26.8 cm
- Input voltage 100-127 VAC / 200-240 VAC
- Memory and processor Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
- Latency 1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec
- Warranty Limited lifetime warranty. See the warranty duration.
- Power consumption Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W
- Ports 24x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports
- Switching capacity 128 Gbps
- Throughput 95.2 Mpps
- Product dimensions (imperial) 1.73 x 17.4 x 10.56 in
- Weight 4.2 kg
- Weight 9.24 lbs
Quickspecs
Overview

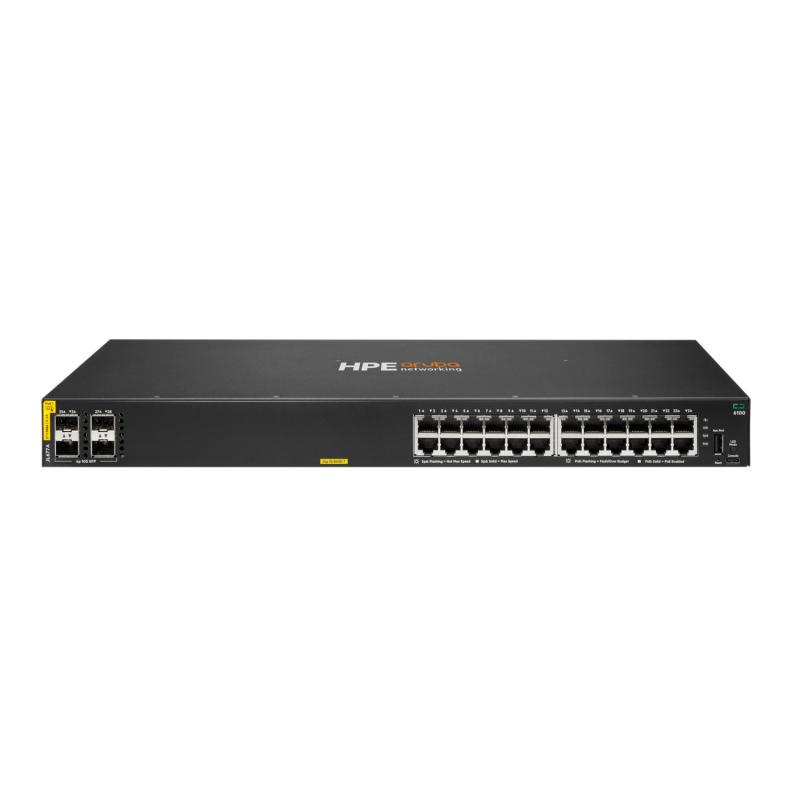

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.
What’s new
- Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
- Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
- Ready for software defined networking with REST APIs.
- Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
- Silent deployment with compact and fanless 12-port PoE model.
Features
Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Deploy wireless access points and IoT devices using HPE Aruba Networking CX 6100 switch models for up to 740W IEEE 802.3at Class 4 Power over Ethernet with up to 30W per port.
Four built-in wire speed 1/10 GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
The HPE Aruba Networking CX 6100 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption.
Simplified Configuration and Management
The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use web GUI, or industry standard CLI.
The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
Performance and Power
Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6.
Entry Level Layer 2 Access Switches
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
Delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.
Simplifies ownership with no switch software licensing or subscriptions required.
Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
Compatible products
- ARUBA NETEDIT SINGLE NODE 1YR SUB E-STU
- HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver
- HPE Aruba Networking Foundational Care 5Y NBD Exch Hardware Only 6100 24G CL4 SVC
- HPE Aruba Networking X511 12-port Cable Guard
- HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver
- ARUBA NETEDIT SINGLE NODE 3YR SUBSCRIPTI
- HPE 2.5M C15 to C14 Pwr Cord
- HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
- HPE Aruba Networking USB-A reversible to USB-C PC-to-Switch 3m Cable
- HPE Aruba Networking CX 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch
- ARUBA 6300M 24SFP+ 4SFP56 SWCH
- HPE Aruba Networking Foundational Care 3Y NBD Exch 6100 24G CL4 Switch SVC
- HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit
- ARUBA USB-C TO USB-C PC-TO-SWITCH CABLE
- HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver
- HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
- Aruba 6300M 48G CL4 PoE 4SFP56 Swch
- HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver
- HPE Aruba Networking Foundational Care 5Y NBD Exch 6100 24G CL4 Switch SVC
