QNAP NAS ES2486dc-2142IT-128G


Intel® Xeon® D-2142IT 8 cores/16 threads 1.9 GHz processor (burst up to 3.0 GHz), 128 GB DDR4 ECC memory (64 GB per controller)

Pretul afisat nu contine TVA (19%).

89.192,17 lei

ES2486dc-2142IT-128G

Intel® Xeon® D-2142IT 8 cores/16 threads 1.9 GHz processor (burst up to 3.0 GHz), 128 GB DDR4 ECC memory (64 GB per controller)

Powerful and cost-efficient Intel® Xeon® D based Enterprise ZFS NAS, optimized for inline deduplication and all-flash applications.

The ES2486dc Enterprise ZFS NAS is QNAP’s first high-availability NAS with all-flash arrays and dual active controllers. Powered by an Intel® Xeon® D-2142IT 8 cores/16 threads processor, the ES2486dc supports up to 24 x 2.5-inch SAS 12Gbps SSDs and provides excellent I/O throughputs. Random write performance for all-flash arrays is further driven by the flash-optimized QES 2.1.1 operating system that comes pre-installed on the ES2486dc. The QES uses ZFS to support logical volume management; block-based inline data deduplication and inline compression reduce I/O and SSD storage consumption, which significantly extends SSD lifespan with higher price-performance ratio for all-flash storage arrays. Coupled with near-limitless snapshots and SnapSync for data protection, the QES-based ES2486dc fulfills demanding business applications, such as mission-critical file servers, virtualization servers, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup and recovery.

Intel® Xeon® D dual active-active controllers provide superb uptime and redundancy to ensure high availability (HA).

Battery-protected DRAM write to cache data protection and flash read acceleration provides industry-leading random access performance.

PCIe expandability allows for 10GbE/25GbE/40GbE adapters to increase application performance.

Four 10GbE SFP+ ports accelerate large file sharing and intensive data transfer from virtualization or datacenter.

Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time.

Supports VMware® vSphere® 6.5, Windows Server® 2019 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments.



Active-Active high availability with optimal storage efficiency

In Active-Active storage system architecture, both controllers can provide a comprehensive range of services, which is different from the Active-Standby architecture of single-controller systems. An advantage of Active-Active architecture is the lack of idle computing resources. To leverage the strengths of the ES2486dc Active-Active controller architecture, QNAP recommends creating multiple storage pools and distributing ownership between both controllers to enable simultaneous output from both controllers for improved load balancing.

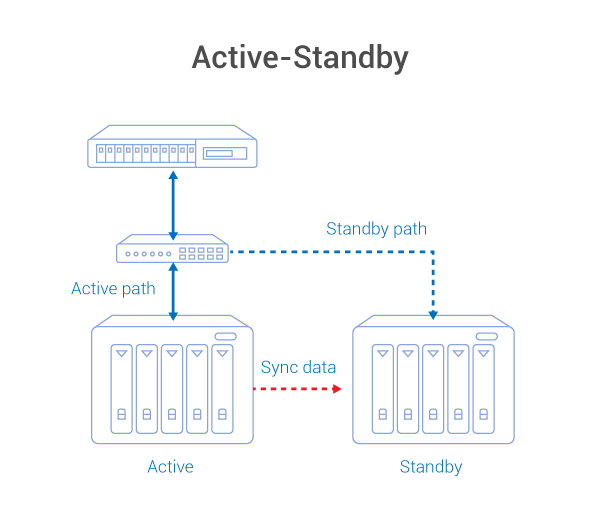

  • Active-Standby single-controller system

    With two HA systems you are paying twice the price, and the HA system can cause load imbalances because workloads are only processed on the active system. Moreover, a power outage can cause data loss, while network disconnections will invalidate the HA architecture.

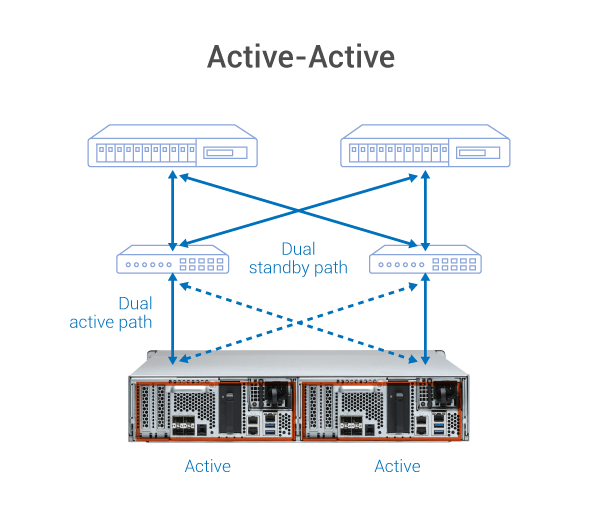

  • Active-Active dual-controller system

    Both controllers of the ES2486dc can carry traffic, along with Copy-To-Flash protection against power failure and the dual-path SAS interface design. Besides conserving computing resources, a high-speed, uninterrupted, and high-availability storage service is also provided through communication protocols such as SMB, NFS and iSCSI.



Multi-level cache technology with read and write support boosts storage performance

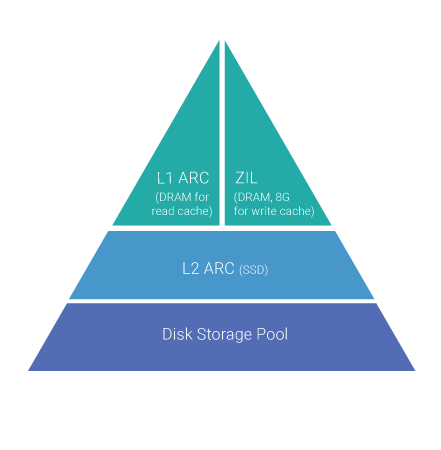

The ES2486dc simultaneously supports read caches including primary cache (L1 ARC), SSD cache as a secondary cache (L2 ARC), and write cache ZFS Intent Log (ZIL) for synchronous transactions to meet performance demands for various enterprise applications.

Up to 512 GB main memory NVRAM cache reduces the risk of losing write cache data SSD cache
Each controller has eight RDIMM slots, allowing up to 512 GB memory.

Note: The main memory will retain 8 GB through the ZIL cache.

If a sudden power outage occurs, the system can write cache data from the battery-protected DRAM to M.2 SSD through Copy To Flash (C2F) to ensure data security.

Note: To ensure write cache data security, QNAP recommends replacing BBU annually. QNAP provides a one-year warranty for the BBU.

Configure SSDs for SSD caching to increase IOPS performance and reducing latency for storage volume.

Use SAS or SATA SSDs flexibly within your IT budget

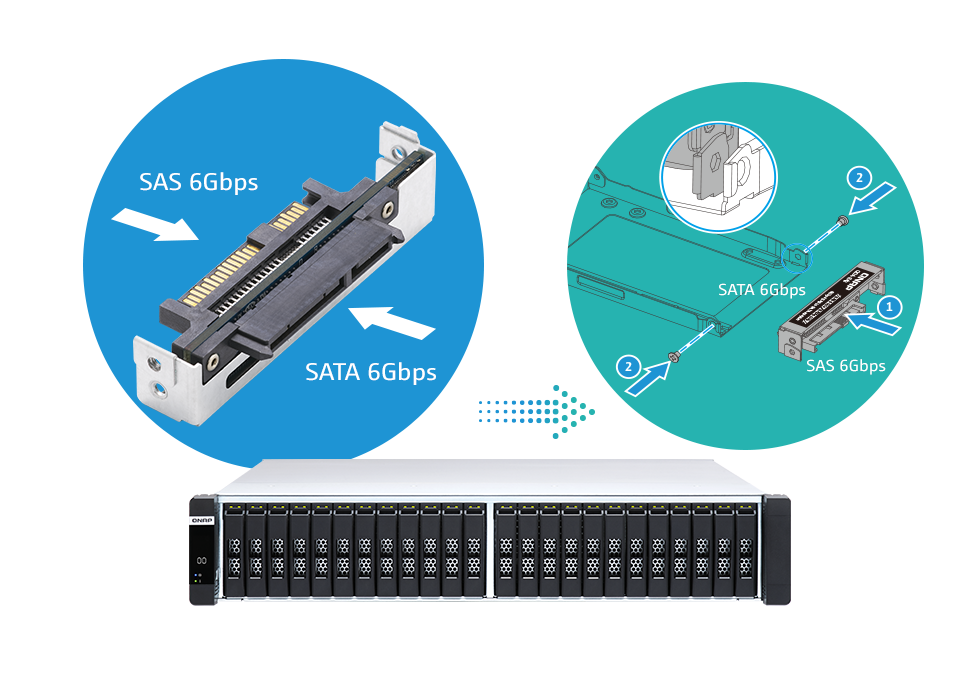

Although SATA 6Gbps SSDs provide high-performance affordable storage, this type of drive is unsuitable for dual-controller environments because it lacks dual-port support. By using a QDA-SA3 adapter specially designed for QNAP all-flash Enterprise ZFS NAS, a SATA 6Gbps drive can be used in the 3.5-inch SAS drive bay of the ES2486dc— allowing storage capacity expansions with cost-effective SATA drives. By installing a SATA SSD with the QDA-SA3 into the dual-controller ES2486dc, the SATA SSD can share SAS dual-port advantages to ensure a high-availability and fault-tolerant enterprise storage environment.

PCIe expansion for 25GbE/40GbE high-speed networks

The ES2486dc provides two PCIe Gen 3.0 x8 slots connected to the CPU, allowing you to install lightning-fast 10GbE/25GbE/40GbE network cards to boost virtualization, media streaming, and other bandwidth-demanding applications. Installing a Smart NIC that supports iSER can improve VMware® virtualization performance. You can also install a SAS expansion card ( SAS-12G2E ) for connecting up to seven 16-bay EJ1600 v2 expansion enclosures to seamlessly expand potential storage capacity to over 1PB, with unprecedented performance of up to 48 Gbps per host connection.

QES 2.1.1: ZFS-based, and optimized for all flash performance

The ES2486dc features the QES (QNAP Enterprise Storage) 2.1.1 operating system which is based on the simple and efficient FreeBSD kernel and ZFS file system for high-end enterprise applications. QES 2.1.1 not only provides reliable data protection, recovery, and business-class features, it is also optimized for flash storage to drive outstanding performance of all-flash storage arrays, accelerating mission-critical services and eliminate challenges in VDI environments. QES 2.1.1 also comes with Quality of Service (QoS) capabilities to ensure consistent primary storage performance in multi-application environments. The flash-optimized QES 2.1.1 continues the same user experience as the intuitive QTS, thus easy to learn for enterprise users and can be quickly implemented into existing IT infrastructures.

QES and QTS comparison

QES 2.1.1
QNAP Enterprise System
QTS
QNAP NAS System
OS Kernel FreeBSD Linux
File system ZFS Ext4
SMB/FTP/NFS/iSCSI
End-to-end data integrity
Snapshot upper limit 65535 1024
Remote disaster backup and recovery SnapSync Snapshot Replica
Inline data deduplication Deduplicate backup data at the source
(HBS 3)
Inline data compression
Inline data compaction
Application consistency Snapshot Agent
VSS Hardware Provider
(QNAP NetBak Replicator)
Snapshot Agent
VSS Hardware Provider
(QNAP NetBak Replicator)
Qtier (Auto Tiering)
App Center
Application services
(Virtualization Station, Web Server, multimedia services, etc.)
Application scenarios • Reliable storage for mission-critical business tasks.
• The perfect backup storage for dual-controller Enterprise ZFS NAS.
• High-performance storage with SSD and Qtier technology for maximized cost-efficiency.
• Storage for hosting virtual machines and containerized applications.
• Application server using QTS services (Web server, VPN server, FTP server, etc).
SKU: ES2486dc-2142IT-128G Categorii: , ,

ES2486dc-2142IT-128G

  • Download Datasheet
  • Download Datasheet
  • Download Datasheet
CPU Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
System Memory 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller
Maximum Memory 512 GB (8 x 64GB)
Memory Slot 8 x R-DIMM/LR-DIMM DDR4

IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 24 x 2.5-inch

SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility 2.5-inch bays:
2.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA solid state drives

1. When installing SATA HDD/SSD, QDA-SA3 adapter is required.
2. The QDA-SA3 adapter is designed for QNAP Enterprise ZFS NAS and allows the use of a SATA 6Gbps drive in a 2.5-inch SAS drive bay
Hot-swappable
SSD Cache Acceleration Support
Read cache only
Cache for Copy To Flash (C2F) 1 per each controller (64GB)
Gigabit Ethernet Port (RJ45) 3 for each controller (one for remote management)
10 Gigabit Ethernet Port 4 x 10GbE SFP+ for each controller
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x8 (CPU)
Slot 2: PCIe Gen 3 x8 (CPU)
USB 3.2 Gen 1 port 2 per each controller
Form Factor 2U Rackmount
LED Indicators System Power LED (Green): on/off
System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection
Buttons Power, Reset
Dimensions (HxWxD) 88.3 × 483 × 545.1 mm
Weight (Net) 27.41 kg
Weight (Gross) 32.83 kg
Operating temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Redundant/ Hot Swap Power Vin:90~264VAC;700W
Power Consumption: Operating Mode, Typical 579.59 W

Tested with drives fully populated.
Fan Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
Sound Level 60.9 db(A)
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 10000
Safety Standard FCC Class A (USA only)
CE Mark ( EN55022 Class A, EN55024)
EN60950
BSMI
VCCI
CB
LVD
