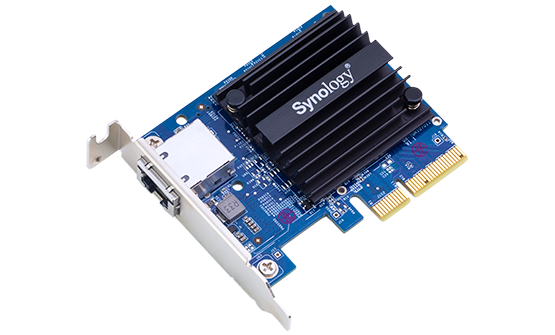

Synology 10Gb Ethernet Adapter (E10G18-T1)

Synology 10Gb Ethernet Adapter (E10G18-T1)

Equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x, E10G18-T1 helps you smoothly migrate to a 10GbE networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps data rate, E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.

Technical Specifications
General Standards
IEEE 802.3an 10Gbps Ethernet
IEEE 802.3bz 2.5Gbps/ 5Gbps Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
Data transfer rates
10 Gbps per port
Network operation mode
Full duplex

Supported OS
Synology DiskStation Manager (DSM) 6.1.7 and onward
19 series: RS1619xs+, RS1219+, DS2419+, DS1819+
18 series: FS1018, RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+
17 series: FS3017, FS2017, RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xs, DS1817+, DS1517+
16 series: RS18016xs+

Supported models
15 series: RC18015xs+, DS3615xs
14 series: RS3614xs+, RS3614RPxs, RS3614xs
13 series: RS10613xs+, RS3413xs+
12 series: RS3412RPxs, RS3412xs, DS3612xs
11 series: RS3411RPxs, RS3411xs, DS3611xs

Physical
PCI Express interface
PCIe 3.0 and 2.0 compatible
8-lane or 4-lane auto-negotiation
Bracket height
Low Profile and Full Height
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature-20˚C to 60˚C (-5˚F to 140˚F)
Relative humidity
5% to 95% RH
Certification
FCC, CE, BSMI
Warranty
5 years
