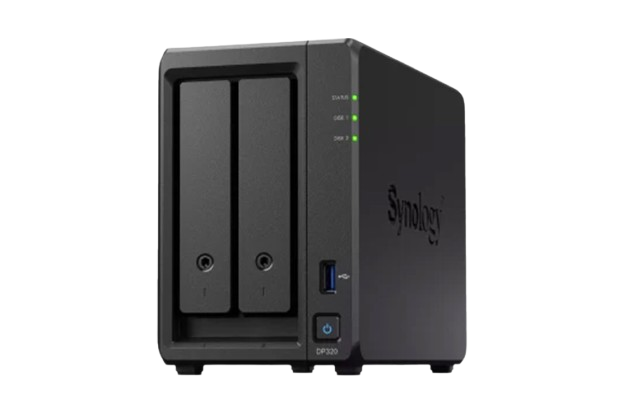

Synology Active Protect Appliance DP320 (DP320)

Synology Active Protect Appliance DP320 (DP320)

Cyber-resilient Data Protection – Solution for Endpoints
The Synology ActiveProtect appliance DP320 is a data protection solution that comes pre configured with hardware that runs ActiveProtect Manager, an operating system designed specifically for backup purposes. With its ability to perform backups, restore, deduplicate, replicate, and manage while ensuring security, the DP320 is an ideal backup server for your small and medium
endpoints. It seamlessly integrates all current and future workloads across multiple sites into clusters, enabling centralized management through a single platform. With immutability, air-gapped backups, and access control, the DP320 protects against
ransomware attacks, and secures all your data.

Highlights
• Deploy quickly
Set up your server in minutes
• Safeguard all workloads
Protect VMs, SaaS, databases, physical servers, and more
• Visibility
Monitor servers, and backup status on a centralized platform
• Reliable backup
Verify backups and test your disaster recovery plan in a sandboxed environment
• Flexible recovery
Perform bare-metal, file-level recovery, or P2V/V2V instant restoration to meet your RTO needs
• Ransomware defense
Integrate immutability and air-gapped backups with WORM storage against ransomware
• Optimized backup efficiency
Leverage source-side global deduplication and a specialized backup engine
• Data security
Implement least privilege with access controls, firewall, and isolation for a robust architecture

Technical Specifications
General Specifications
Suggested Backup Source
5 TB
Suggested Built-in Restored VM 1
Cluster Role
Can function as an individual server or a managed server in a cluster
Hardware Specifications
Form Factor
Desktop
CPU
AMD R1600 (2 cores)
Memory
8 GB
Storage Configuration
2 x 8 TB HDD (RAID 1)
• 1 x 1GbE RJ-45 Port (Management)
Network Interface
• 1 x 1GbE RJ-45 Port (Data transfer)
Dimensions (HxWxD)
166 x 106 x 223 mm
Weight
2.9 kg
AC input power voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, single phase
Power Consumption
21.07 Watt (Acess)
British Thermal Unit
71.85 BTU/hr (Acess)
• Temperature: 32°F to 104°F (0°C to 45°C)
Operating Environment
• Relative humidity: 8% to 80% RH
• Temperature: -5°F to 140°F (-20°C to 60°C)
Storage Environment
• Relative humidity: 5% to 95% RH
Environment and Packaging
Certification
FCC, CE, UKCA, BSMI, RCM, NCC, VCCI, KC, BIS, EAC
Environmental safety
RoHS compliant
• 1 x DP320 main unit
• 2 x 3.5” SATA HDD
• 1 x Adapter
Package contents
• 1 x AC Power Cord
• 2 x RJ-45 LAN Cable
• 1 x Accessory Pack
• 1 x Quick Installation Guide
Warranty
3 years

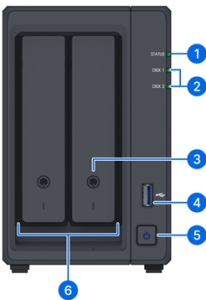

Hardware Overview

1 STATUS Indicator
2 Drive Status Indicator
3 Drive Tray Lock
4 USB 3.2 Gen 1 Port
5 Power Button and
Indicator
6 Drive Trays

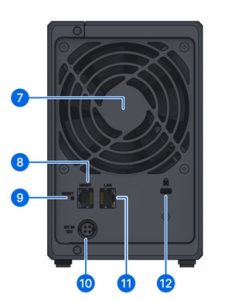

7 Fan
8 Management Port
9 RESET Button
10 Power Port
11 1GbE RJ-45 Port
12 Kensington Security Slot
