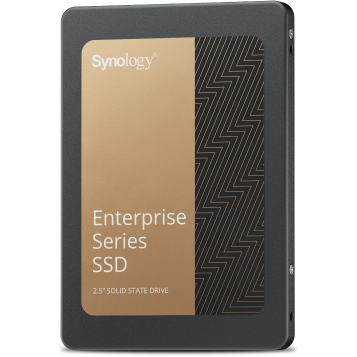

Synology SSD 480GB 2.5 Enterprise SATA (SAT5220-480G)

Synology SSD 480GB 2.5 Enterprise SATA (SAT5220-480G)

Hardware Specifications
General
Capacity 480 GB
Form Factor 2.5″ 7mm
Interface SATA 6 Gb/s
Performance
Sustained Sequential read
128 KB, QD32 530 MB/s
Sustained Sequential write
128 KB, QD32 430 MB/s
Sustained Random Read
4KB, QD32 96,000 IOPS
Sustained Random Write
4KB, QD32 41,000 IOPS

Notes Performance specifications represent single-unit SSD performance results obtained from Synology’s testing
environment; actual performance may vary according to the host system’s hardware and software setup.The specifications have undergone thorough review and verification by Synology to ensure they meet the performance demands and compatibility standard of each Synology system while providing high reliability.All performance measurements refer to sustained performance achieved in a steady state, as defined by test specifications in accordance with the Storage Networking Industry Association SNIA.

Endurance and Reliability
Terabytes Written TBW* 900 TB
Power Loss Protection v
Warranty* 5 Years
Notes 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first.The TBW specifications denote the baseline endurance levels for Synology SSDs and are calculated using the JESD219A enterprise workload.

Power Consumption
Active Read Typ.) 2.2 W
Active Write Typ.) 2.9 W
Idle 1.3 W
Notes Power consumption may differ according to configurations
and platforms.

Temperature
Operating Temperature 0°C to 70°C 32°F to 158°F
Storage Temperature 40°C to 85°C 40°F to 185°F

Compatibility
Applied Models
SAT52107000G
SAT5221480G
SAT52211920G
SAT52213840G
SAT5220960G
