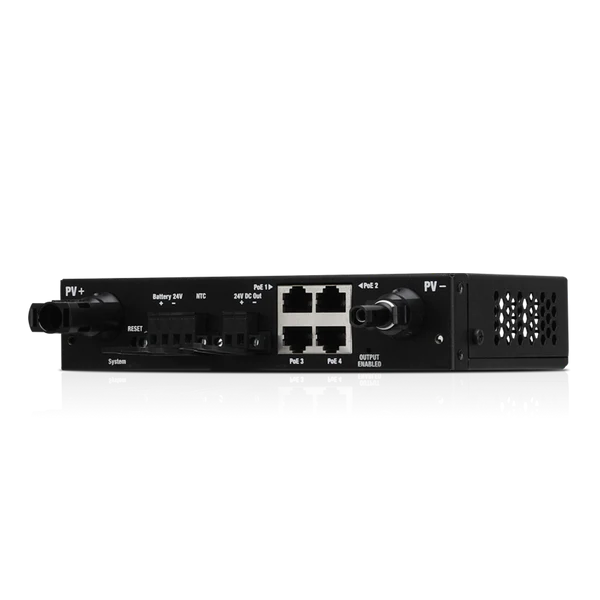

Ubiquiti UISP sunMAX SolarSwitch (SM-SW-40)
Ubiquiti UISP sunMAX SolarSwitch (SM-SW-40) - imagine 2
Ubiquiti UISP sunMAX SolarSwitch (SM-SW-40) - imagine 3
Ubiquiti UISP sunMAX SolarSwitch (SM-SW-40) - imagine 4
Ubiquiti UISP sunMAX SolarSwitch (SM-SW-40) - imagine 5
Ubiquiti UISP sunMAX SolarSwitch (SM-SW-40) - imagine 6
, ,

Ubiquiti UISP sunMAX SolarSwitch (SM-SW-40)

Compara

4x PoE Smart MPPT Charger

  • Remotely Managed
  • Maximum Power Point Tracking (MPPT) 24V, 7A /
  • Built-In 4-Port 24V PoE Switch
  • DC Output up to 40W
  • Weather Prediction Service
Pretul afisat contine TVA (21%).

740,35 lei

Ubiquiti UISP sunMAX SolarSwitch (SM-SW-40)

Remotely managed MPPT 24V 7A solar site charging appliance with a built-in, four-port, 24V PoE switch.

The sunMAX™ SolarSwitch™ is a remotely managed MPPT 24V 7A charging appliance with a built-in, four-port, 24V PoE, 10/100Mbps switch and one DC output that delivers up to 40W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site`s existing and future performance.

Features:

      • Indoor or Cabinet(rack mountable) use
      • PV Panel Input 10 – 60V
      • 4-port 24V PoE output 10/100 switch
      • 24V DC-Out Terminal
      • Max output power 40W
      • External 24V Battery Charging up to 7Amps (supports SLA, AGL,AGM)

Managed with UISP® application.

* Batteries and solar panels are not include.

SKU: SM-SW-40 Categorii: , ,
Mechanical
Dimensions 168 x 136 x 36 mm (6.14 x 5.35 x 1.42″)
Weight 543 g (1.2 lb)
Enclosure Characteristics Steel (Indoor Use)
Hardware
Networking Interface (4) 10/100 Fast Ethernet Ports
Management Interface Ethernet
WiFi (2.4 GHz)
Button Reset
LEDs System, Output
Power Source PV Panel (H4 connectors)
Max. Power Consumption 2W
PV Input Voltage Range 10-60V (Reverse Protection, Surge Protection)
Maximum Open Circuit Voltage 60V
PV Maximum Current 10A
PV Power Control MPPT
Output Interfaces 24VDC Passive PoE (Pins 4, 5+; 7, 😎
24VDC Terminal Block
Output Voltage Battery Voltage Limited to 24V (Surge Protection)
Maximum Power Output PoE: 17W, DC OUT: 24W, Max 40W Total
Battery Type 24V SLA, AGM, Gel Lead Battery
Absorption Voltage Steps 27.4V, 28.2V, 29.1V, 30V
Float Charge Voltage 95% of Absorption Voltage
Max. Charge Current 7A
Under Voltage Protection 22 – 23.6V Software Configurable
22V Hardware Protection
2 Priority Levels for Output Disable
Operating Temperature* -20 to 50° C (-4 to 122° F)
*Stops charging when limit exceeded and restarts charging with 5° C (9° F) hysteresis.
Certifications FCC, IC, CE
