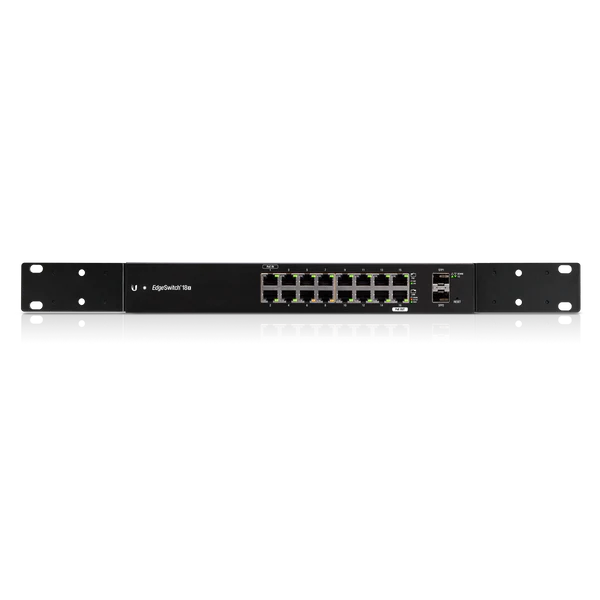

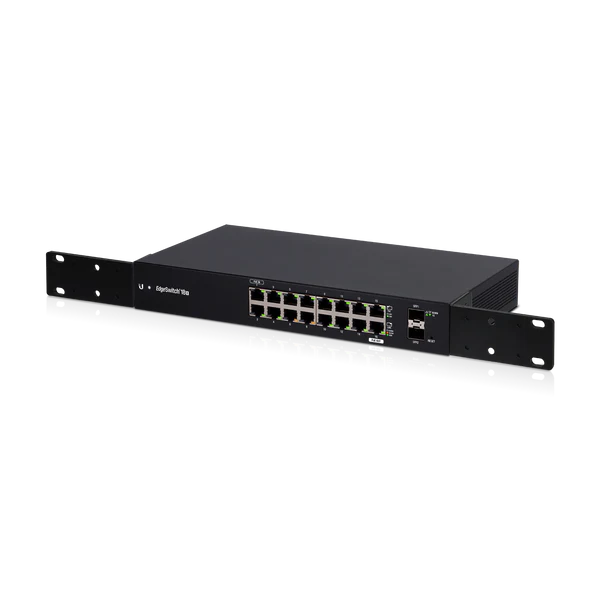

Ubiquiti UISP EdgeSwitch 18X (ES-18X)
Affordable, fanless WISP switch with (16) Gigabit RJ45 ports and (2) SFP ports.
1.081,17 lei
Ubiquiti UISP EdgeSwitch 18X (ES-18X)
Affordable, fanless WISP switch with (16) Gigabit RJ45 ports and (2) SFP ports.
| Mechanical | |
|---|---|
| Dimensions | 299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7″) |
| Weight | Without Mount: 1.15 kg (2.54 lb)
With Mount: 1.43 kg (3.15 lb) |
| Enclosure Material | Metal |
| Mount Material | Metal |
| Hardware | |
| Total Non-Blocking Throughput | 18 Gbps |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Max. Power Consumption | 14W (Excludes PoE Output) |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 8 kV |
| Power Method | External AC/DC Adapter
24V Passive PoE |
| Power Supply | 24VDC, 1.0A Power Adapter (Included)
24V Passive PoE |
| Supported Voltage Range | 9 – 30VDC |
| Networking Interfaces | (16) 10/100/1000 Mbps Ethernet RJ45 Ports
(2) 1 Gbps SFP Ports
|
| PoE Interfaces | (1) 24V Passive PoE Port (Pins 4, 5+; 7, 😎 |
| Management Interface | Ethernet In-Band |
| Passive PoE Max Wattage per Port | 15W |
| Passive PoE Voltage Range | 24V |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) White/Blue |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| SFP | Green: 1G |
| Software | |
| Mode | Layer 2 Ethernet Switch |
| VLAN | 4K VLANs |
| QoS | (16) Priority Queues per User Port and Traffic Classification |
| Jumbo Frame | 10 KB |
| PoE | Enable/Disable Passive PoE |
| Other | TFTP Recovery |
| Ubiquiti Specific Features | Ubiquiti Discovery |
| Minimum Software Requirements | Web Browser (Chrome Recommended) |
