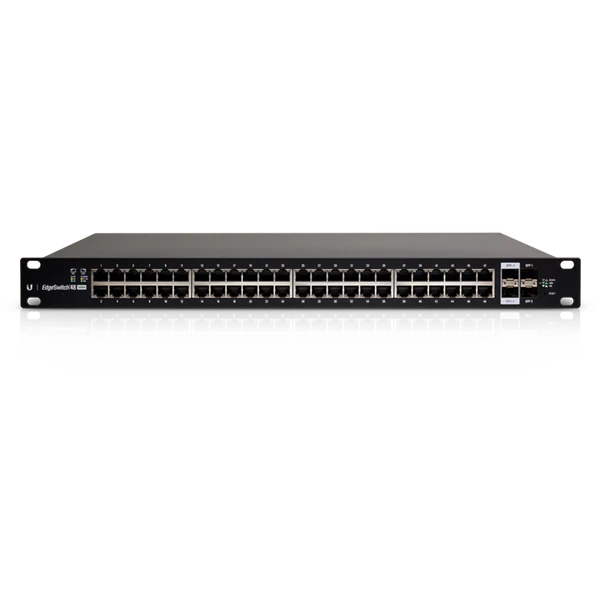

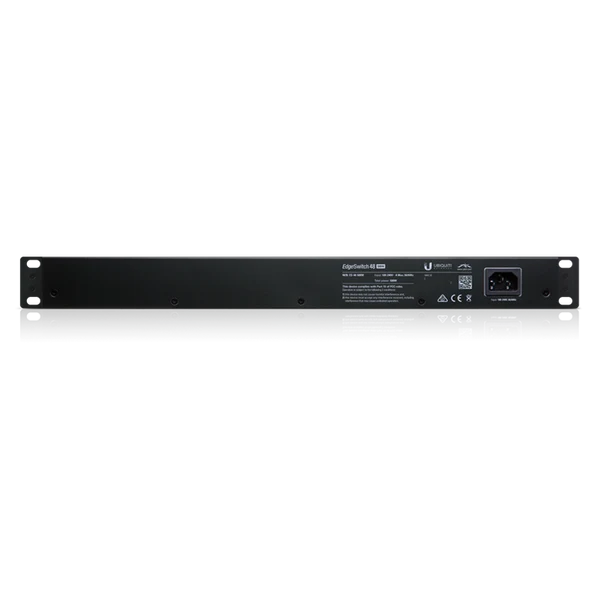

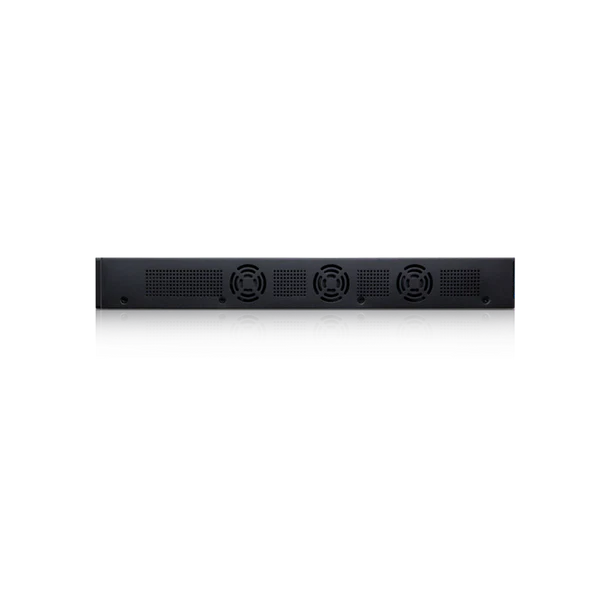

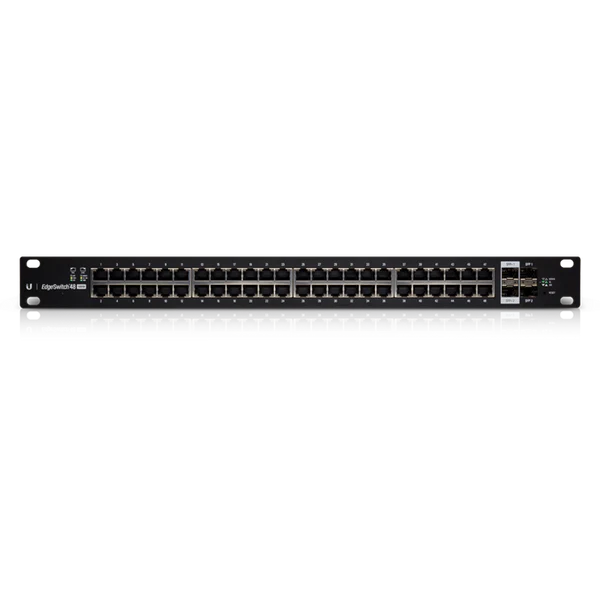

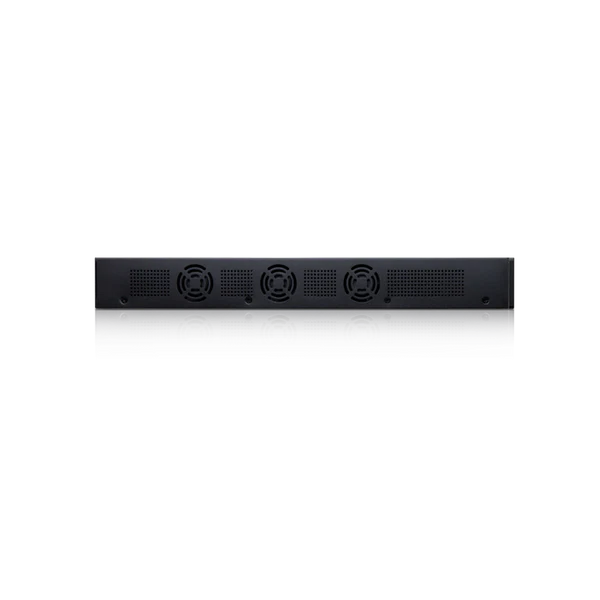

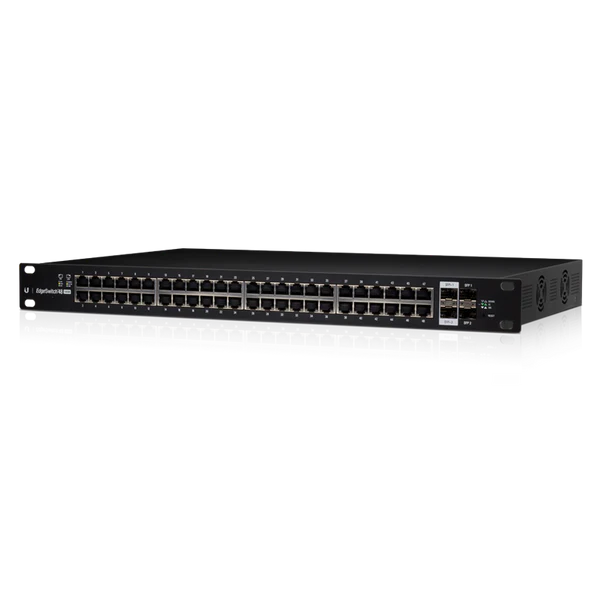

Managed PoE+ Gigabit Switch with SFP
Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch® delivers robust performance, PoE+ support and intelligent switching for growing networks.
24/48 GbERJ45 PORTS Â Â Â Â 2 SFP+PORTS Â Â Â Â 2 SFPPORTS Â Â Â Â Â 24V & PoE+802.3AF/AT
5.960,00 lei
Layer 2/3, PoE+ switch with (48) Gigabit RJ45 ports, (2) SFP+ ports, (2) SFP ports, and a 500W power supply.
Advanced Switching Technology for the Masses. Build and expand your network with Ubiquiti EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Features:
| Mechanical | |
|---|---|
| Dimensions | 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75″) |
| Weight | 6.1 kg (13.5 lb) |
| Hardware | |
| Networking Interfaces | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Total Non-Blocking Throughput | 70 Gbps |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| Max. Power Consumption Includes PoE Output Excludes PoE Output |
500W 64W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 500W DC |
| LEDs Per Port RJ45 Data Ports SFP+/SFP Data Ports |
PoE, Speed/Link/Activity Speed/Link/Activity |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE Per Port | |
| PoE Interfaces | PoE/PoE+ (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 😎 |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range PoE+ Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
