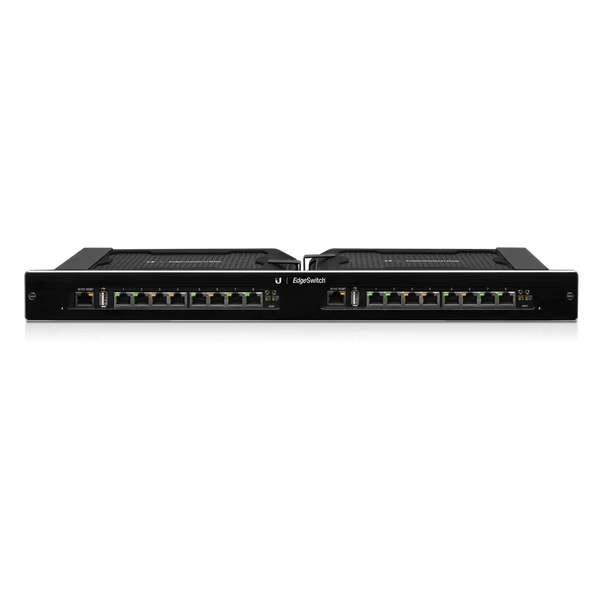

Ubiquiti UISP EdgeSwitch 16XP (ES-16XP)
Managed Advanced Power over Ethernet Switches
The EdgeSwitch® XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.
24V/48VPASSIVE POE 5 GbEPORTS 8 GbEPORTS 16 GbEPORTS
3.049,55 lei
Ubiquiti UISP EdgeSwitch 16XP (ES-16XP)
EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti. To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually
configured to provide PoE, so both PoE and non‑PoE devices can be connected.
Features:
-
- 16 Gigabit PoE Ports
- 24V/48V Configurable Passive PoE
- 300 W Power
- EdgeSwitch XP Configuration Interface
- 1U Rack-Mount Form Factor
| Mechanical | |
|---|---|
| Dimensions | 480 x 44.5 x 186 mm (18.9 x 1.75 x 7.32″) |
| Weight | 3.95 kg (8.71 lb) |
| Hardware Configuration | (2) 8-Port EdgeSwitch 8XP Devices |
| Mounting | 19″ 1U Rack-Mount |
| Hardware* * Specifications apply to each 8-Port EdgeSwitch ES-8XP unit. |
|
| Management Interface | (1) 10/100 Ethernet Port |
| Networking Interfaces | (8) 10/100/1000 Ethernet Ports |
| Processor | MIPS 24K, 400 MHz |
| System Memory | 64 MB |
| Code Storage | 8 MB |
| Power Input | 100-240VAC |
| Max. Power Consumption | 150W |
| PoE Out Voltage Range | 45-48 VDC / 22-24VDC |
| Max. PoE Wattage Per Data Port | 11.5W (24V) 23W (48V) |
| ESD Rating | ±24 kV Air/Contact |
| PoE Method | Passive |
| Button | Reset |
| USB Port | 2.0 Type A (Reserved for Future Use) |
| PoE Configurable Per Port Management Port Data Ports |
N/A Off/24V/48V |
| LEDs Per Port Management Port Data Ports |
Power/Link PoE, Speed/Link/Activity |
| Operating Humidity | 90% Noncondensing |
| Operating Temperature | -25 to 55° C(-13 to 131° F) |
| Certifications | CE, FCC, IC |
