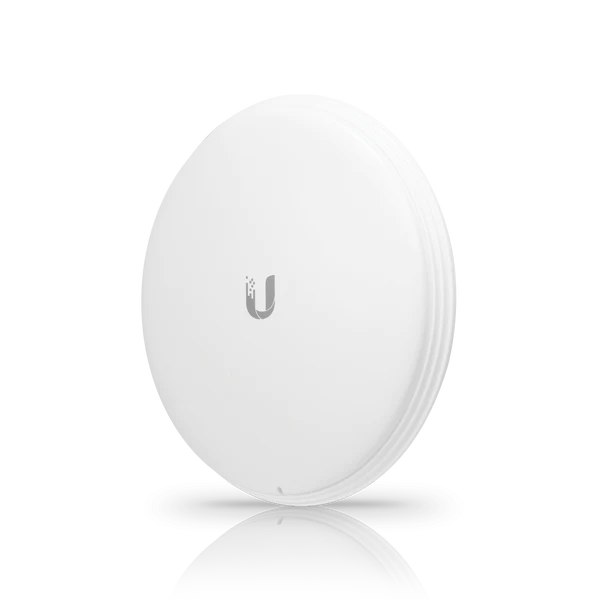

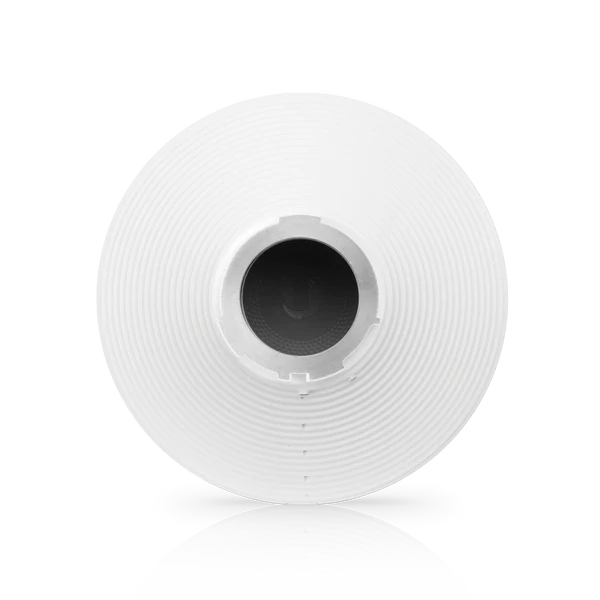

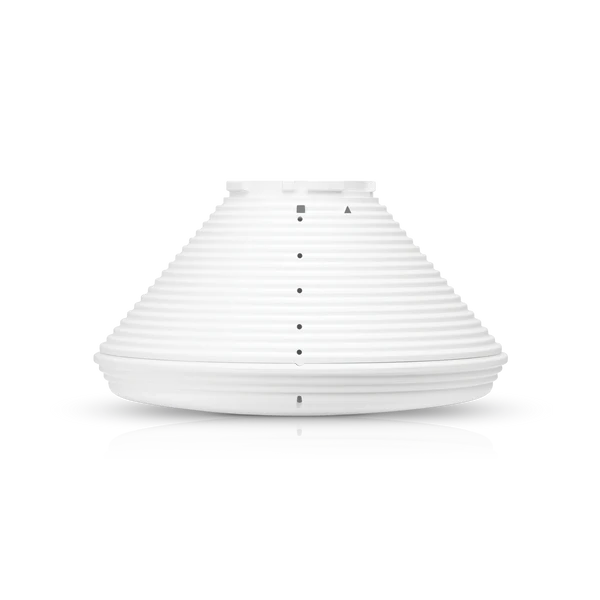

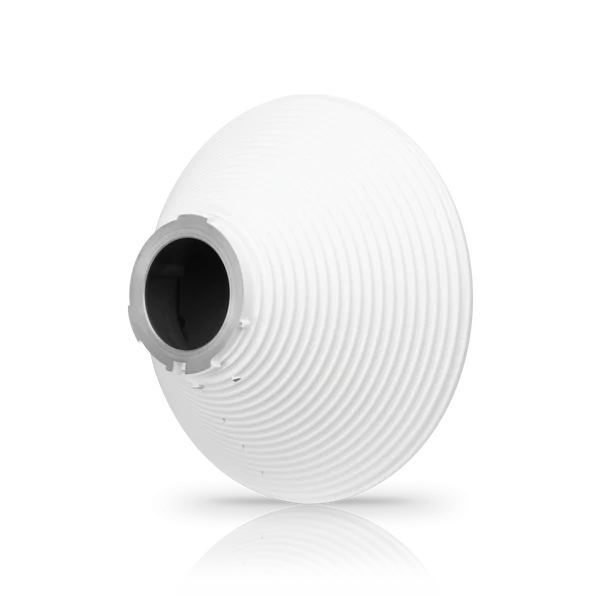

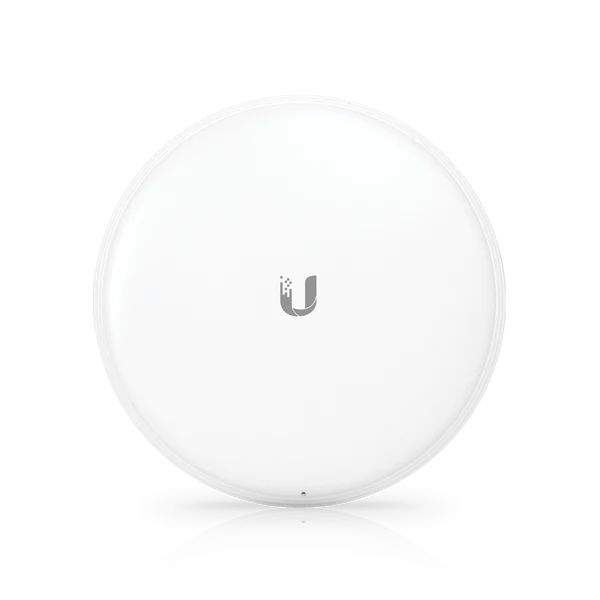

Ubiquiti UISP airMAX 5 GHz, 45° Horn Antenna (Horn-5-45)
Ubiquiti UISP airMAX 5 GHz, 45° Horn Antenna (Horn-5-45) - imagine 2
Ubiquiti UISP airMAX 5 GHz, 45° Horn Antenna (Horn-5-45) - imagine 3
Ubiquiti UISP airMAX 5 GHz, 45° Horn Antenna (Horn-5-45) - imagine 4
Ubiquiti UISP airMAX 5 GHz, 45° Horn Antenna (Horn-5-45) - imagine 5
Ubiquiti UISP airMAX 5 GHz, 45° Horn Antenna (Horn-5-45) - imagine 6
, , , ,

Ubiquiti UISP airMAX 5 GHz, 45° Horn Antenna (Horn-5-45)

Compara

5 GHz Beamwidth Horn Antenna

With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.

Pretul afisat contine TVA (21%).

550,40 lei

Ubiquiti UISP airMAX 5 GHz, 45° Horn Antenna (Horn-5-45)

With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.

SKU: Horn-5-45 Categorii: , , , ,
Horn-5-45
Dimensions Ø 175 x 96 mm (6.9 x 3.78″)
Weight 1.34 kg (47.23 oz)
Supported Frequency Range 5.15 -5.85 GHz
Gain 15.5 dBi
HPOL Beamwidth 45°
VPOL Beamwidth 45°
Elevation Beamwidth 45°
Maximum VSWR 1.7:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
