Ubiquiti UISP LTU Rocket (LTU-Rocket)

TECHNICAL SPECIFICATIONS

• Width x Height x Depth:
  224 × 82 × 48mm (8.82 × 3.23 × 1.89″)
• Weight: 0.468 kg (1.03 lb)
• GPS: External, Magnetic Base

• 5150-5250MHz
• 5740-5850MHz

• Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
• Power Method: Dual Passive Power over Ethernet
• Max. Power Concumption: 15W
• Supported Voltage Range: +18 to +54VDC*

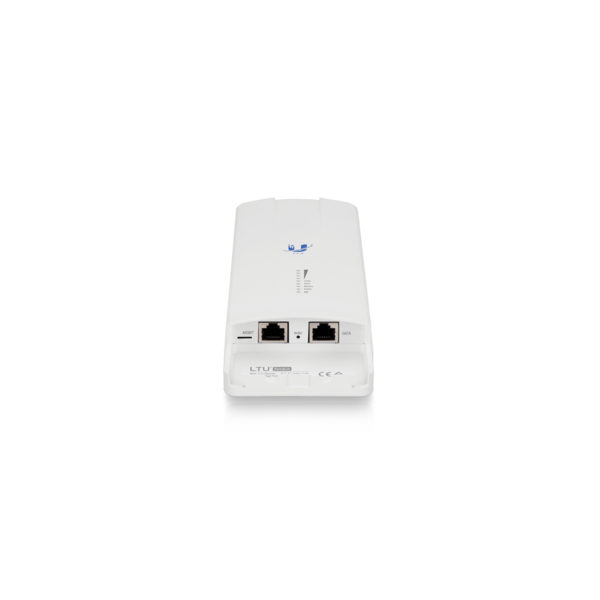

• Data Port: (1) 10/100/1000 Ethernet Port
• Configuration Port: (1) 10/100/1000 Ethernet Port

• Processor: LTU IC
• Maximum Throughput: 1+ Gbps
• Maximum Range: 200+ km*
• Encryption: 128-bit AES
• Operating System: airOS F

• Max TX Power: 29 dBm (Dependent on Regulatory Region)

• ± 2.5 ppm without GPS Synchronization
• ± 0.2 ppm with GPS Synchronization

• 10/20/30/40/50 MHz Selectable
  Programmable Uplink and Downlink Duty Cycles

• Operating Temperature: -40° to 55° C (-40° to 131° F)

• FCC

• airFiber X Mount (Rocket Mount Compatible)
• GPS Pole Mount (Included)
