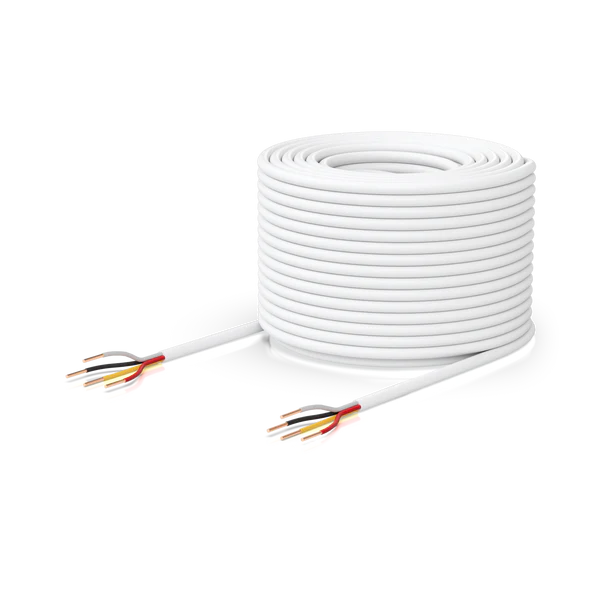

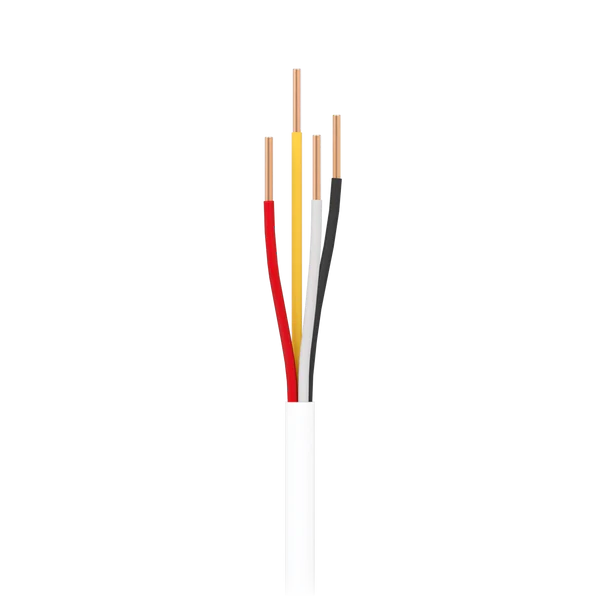

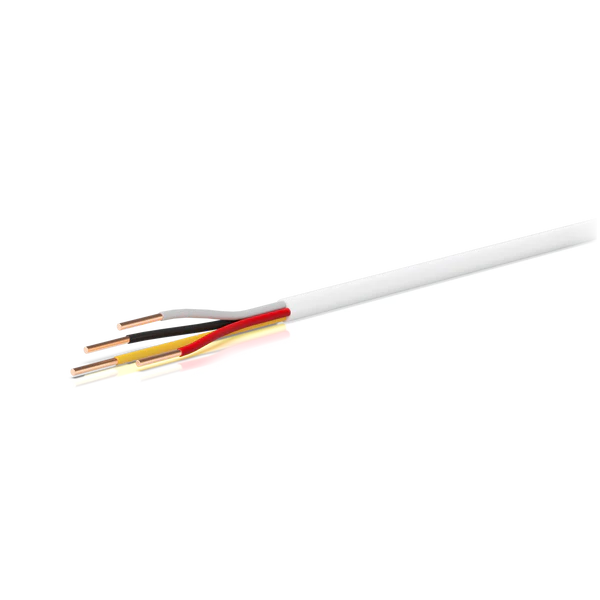

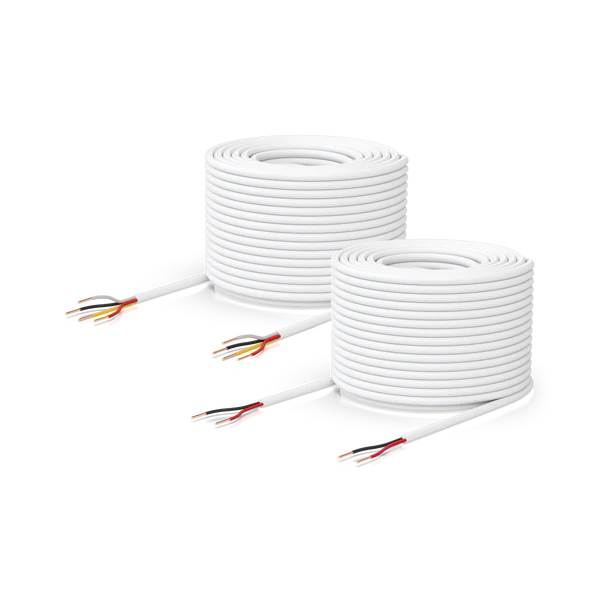

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.
Connects an electric/magnetic lock and door position sensor to an Access Hub.Features:
- (2) 18 AWG conductors for an electric/magnetic lock
- (2) 22 AWG conductors for a door position sensor
- Plenum-rated
| Specifications | |
|---|---|
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Cable length | 152.4 m (500 ft) |
| Jacket OD | UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18″) UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17″) |
| Jacket material | Thermoplastic elastomer (TPE) |
| Jacket color | White |
| Conductor wire gauge | UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Insulation material | Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulation color | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Stranding | 1 |
| Number of conductors | UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2 |
| Conductor material | Bare copper |
| Max. pull tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf |
| Min. bend radius | UACC-Cable-DoorLockRelay-2P: 56 mm (2.2″) UACC-Cable-DoorLockRelay-1P: 33 mm (1.3″) |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) |
| Voltage | 36V DC |
| Flame rating | VW-1 |
| Current rating | 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length |
| Storage temperature | -45 to 65° C (-40 to 149° F) |
| Operating temperature | -45 to 65° C (-40 to 149° F) |
