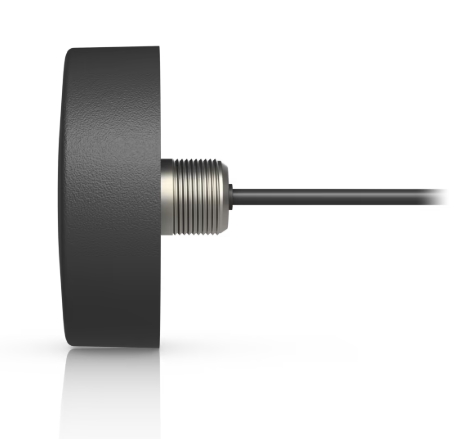

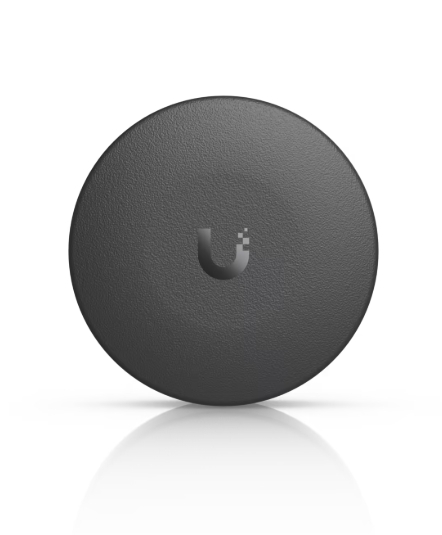

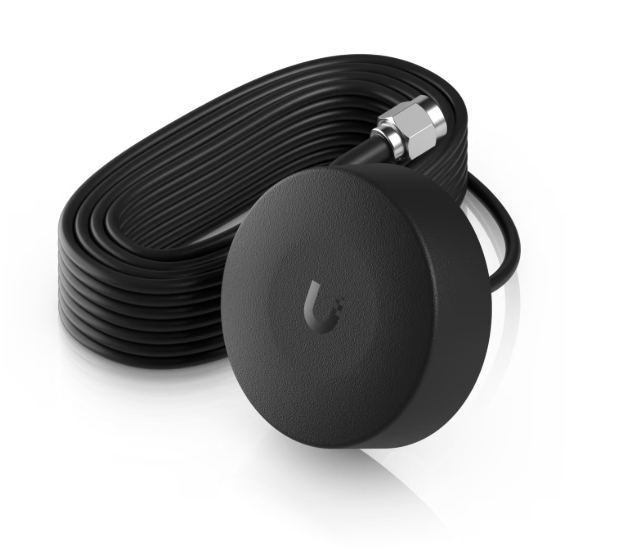

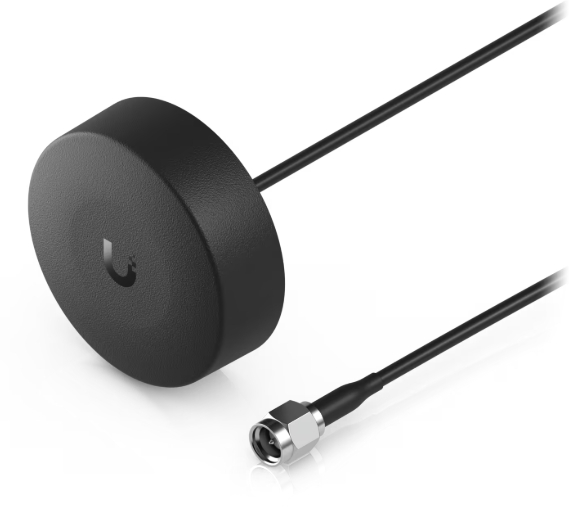

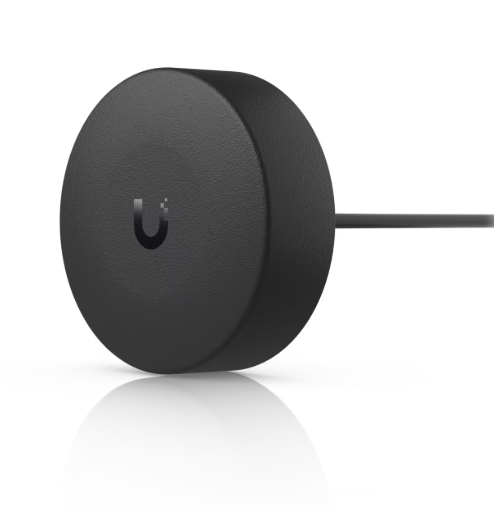

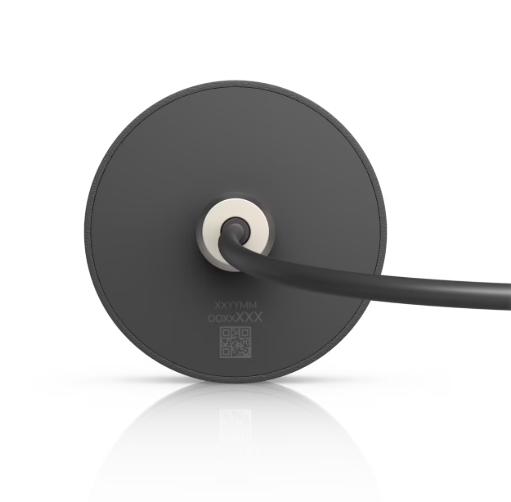

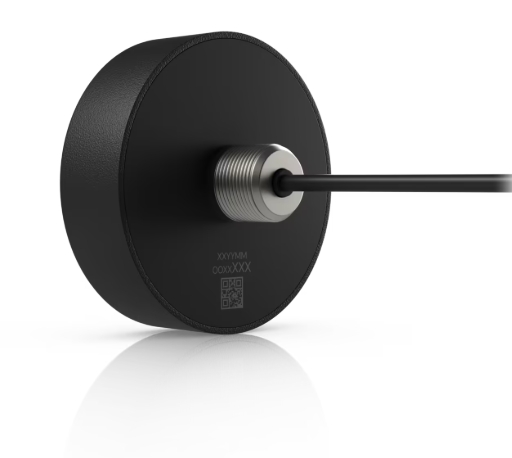

Ubiquiti UniFi GNSS Antenna (UACC-GNSS-Antenna)
Compact active IP67-rated GNSS antenna with an integrated low-noise LNA.
Compatibility:
EAV-Fiber
,
EAV-XG-24-PoE (2150W)
Dimensions
⌀46 x 15 mm (⌀1.8 x 0.6″)
Weight
84 g (3 oz)
Enclosure Material
Acrylonitrile butadiene styrene thermoplastic (ABS PA-757)
Mount Material
Stainless steel
Wind Survivability
60–70 m/s (134–157 mph)
Wind Loading
1.5–3.0 kPa

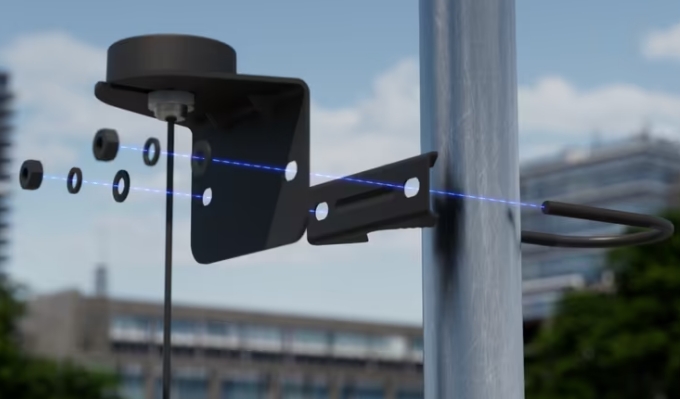

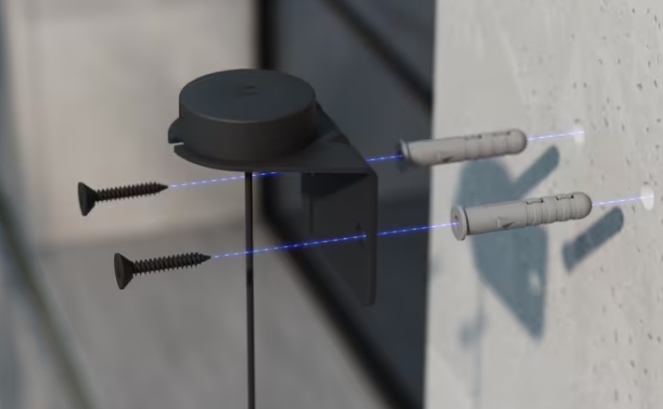

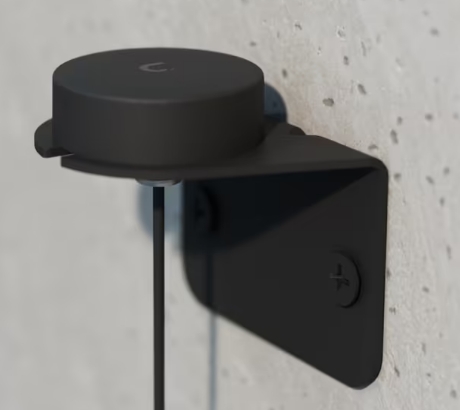

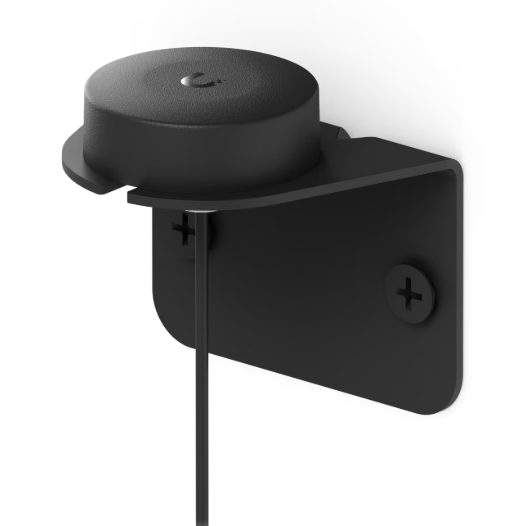

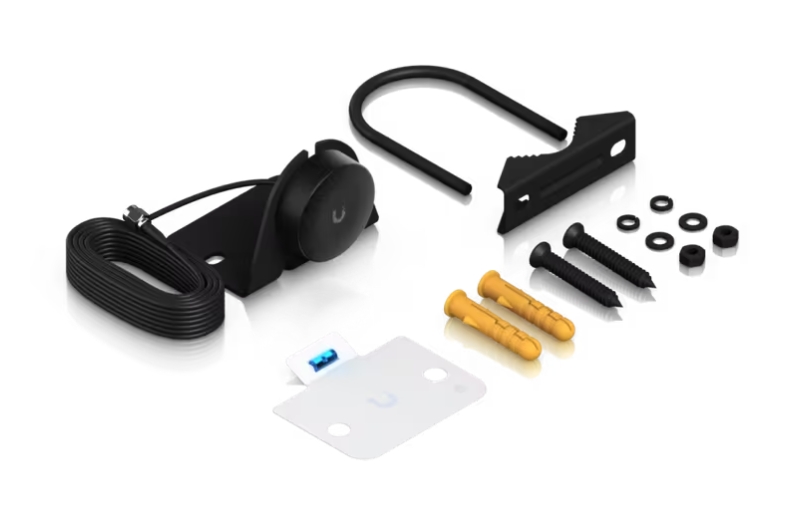

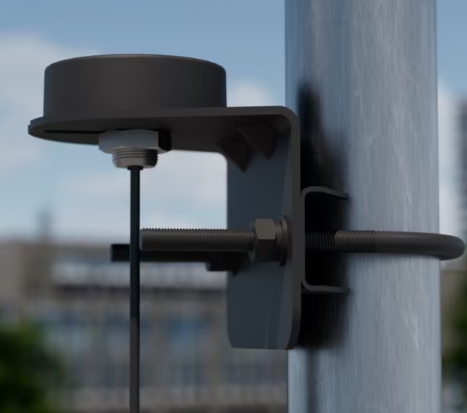

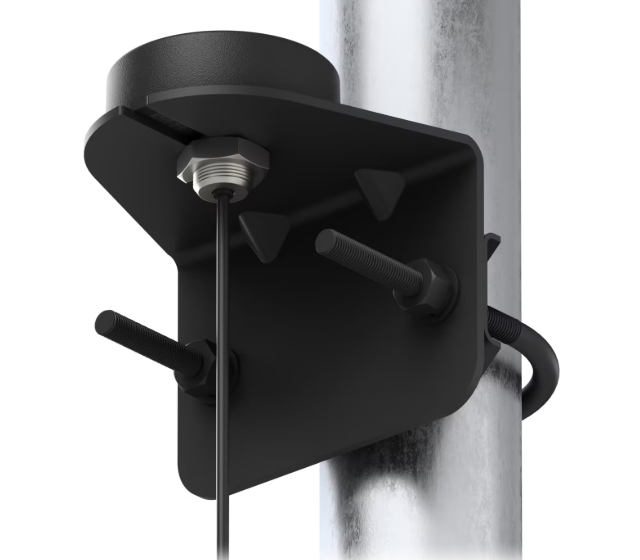

Mounting
Pole, wall mount

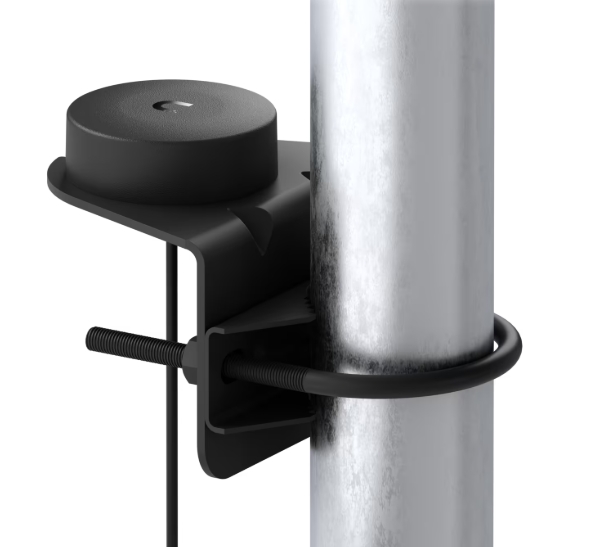

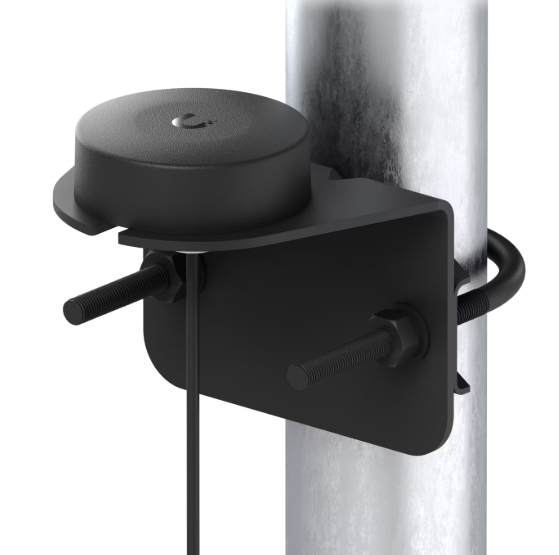

Pole Mount Diameter
⌀0.75–1.42″ (⌀19–36 mm)
Weatherproofing
IP67
Supported Voltage Range
3.0-5.0V DC , 3.3V typ.
Frequency Range
1559–1606 MHz
Gain
2 dBi
LNA Gain
38dB typ.
Max. VSWR
＜2.0
Polarization
RHCP

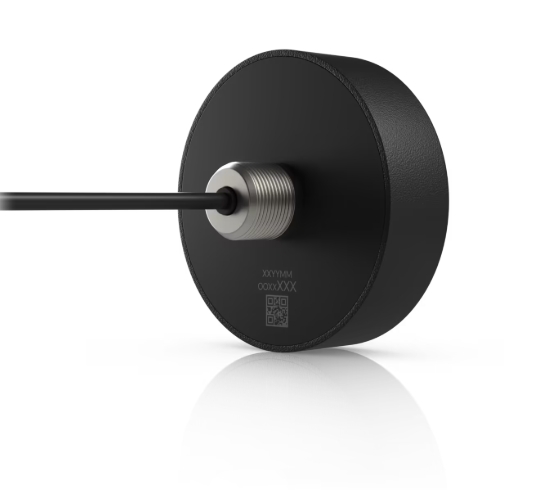

RF Connectors
SMA Male
RF Cable
RG174
Cable
Cable Length
5 m (16,4 ft)
Delay
25 ns
Ambient Operating Temperature
-40 to 85° C (-40 to 185° F)
