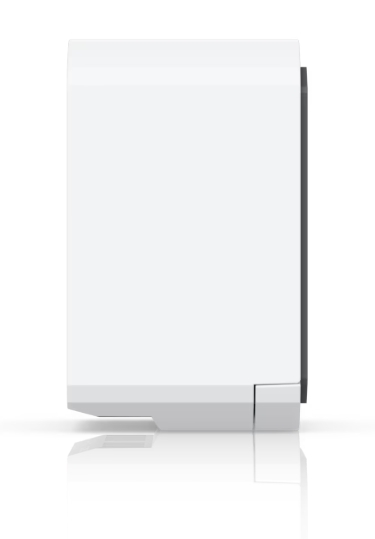

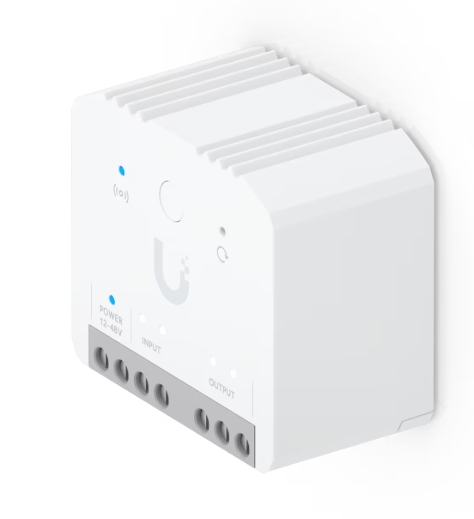

Ubiquiti UniFi Protect Relay (USL-Relay)
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 2
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 3
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 4
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 5
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 6
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 7
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 8
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 9
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 10
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 11
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 12
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 13
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 14
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 15
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 16
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 17
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 18
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 19
Ubiquiti UniFi Protect Relay (USL-Relay) - imagine 20
, , ,

Ubiquiti UniFi Protect Relay (USL-Relay)

Compara
Pretul afisat contine TVA (21%).

240,93 lei

Ubiquiti UniFi Protect Relay (USL-Relay)

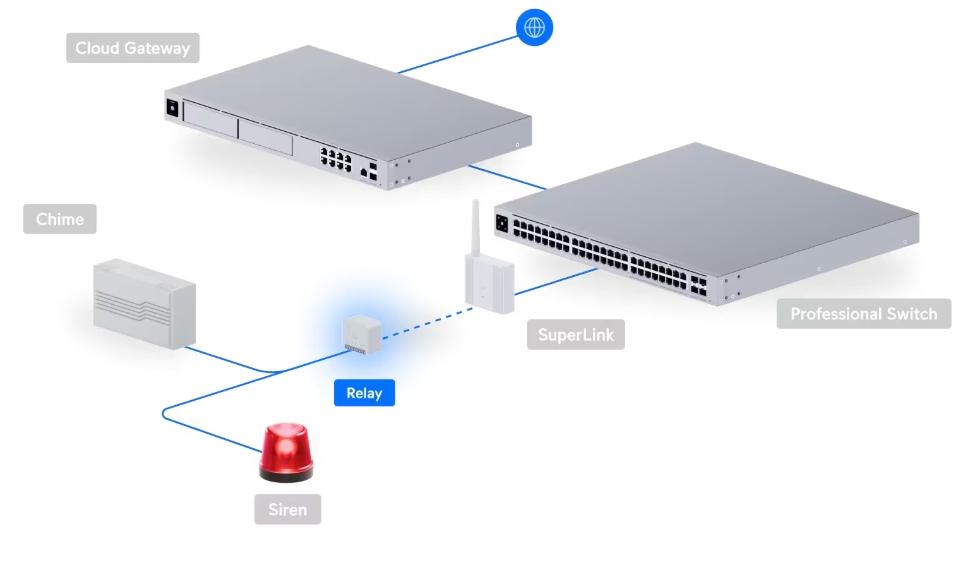

Compact SuperLink relay designed with I/O interfaces for seamless integration with third-party sensors and signaling devices.



SKU: USL-Relay Categorii: , , ,

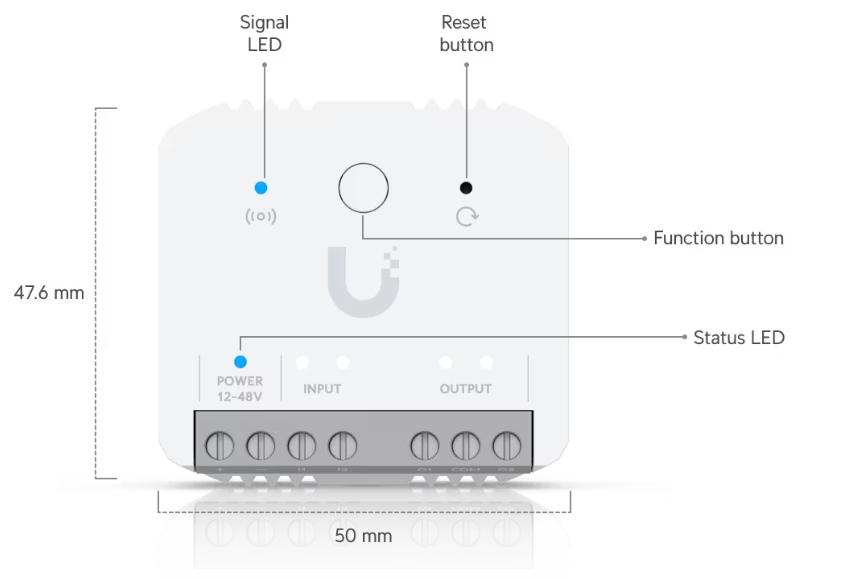

Dimensions
50 x 47.6 x 28 mm (12 × 1.9 × 1.1″)

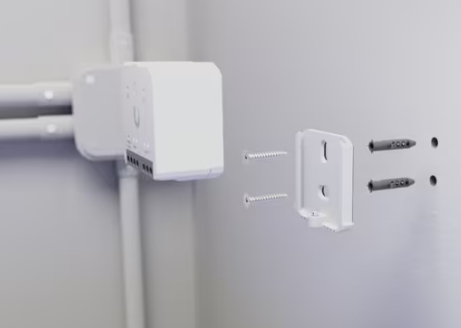

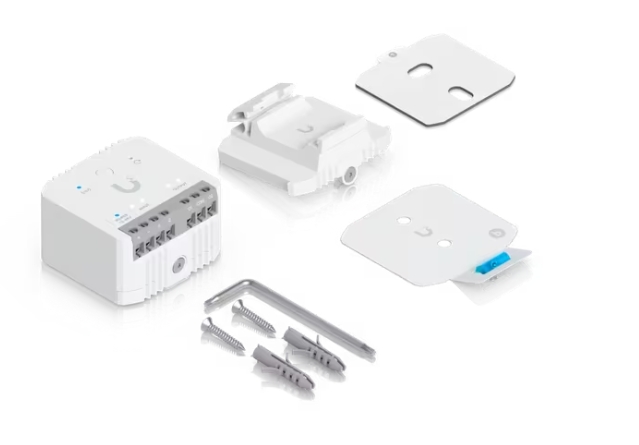

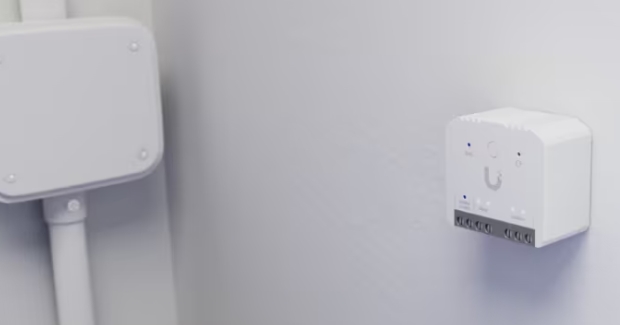

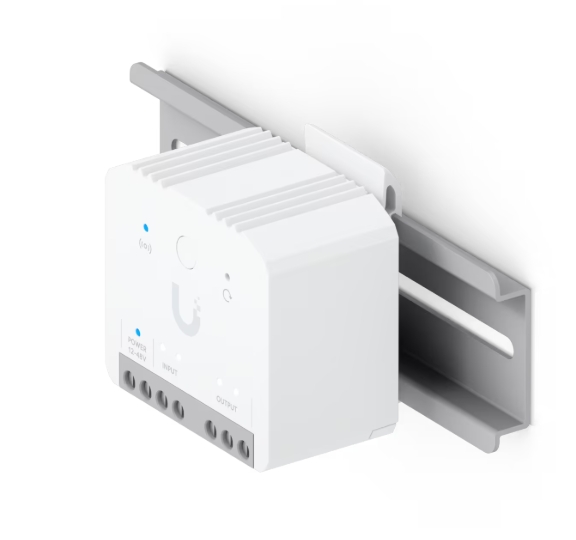

Mounting
Adhesive, wall and DIN rail mount
UniFi Application Suite
Protect

Connectivity
SuperLink (Proprietary)
Operating Frequency
US
915.6–927.6 MHz
EU
865.1–869.5 MHz
Antenna Gain
SuperLink
1 dBi
Max. TX Power
SuperLink
14 dBm
Max. Range
SuperLink
2 km (1.2 mi)

Power Method
12V DC / 24V DC / 48V DC
Weight
100 g (3.5 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Buttons
(1) Factory reset (1) Test button

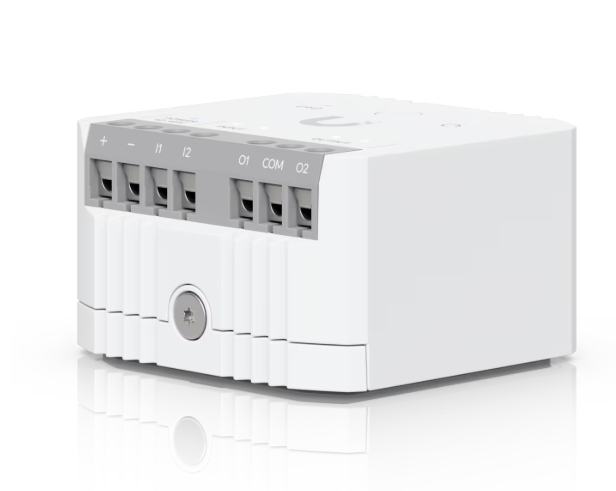

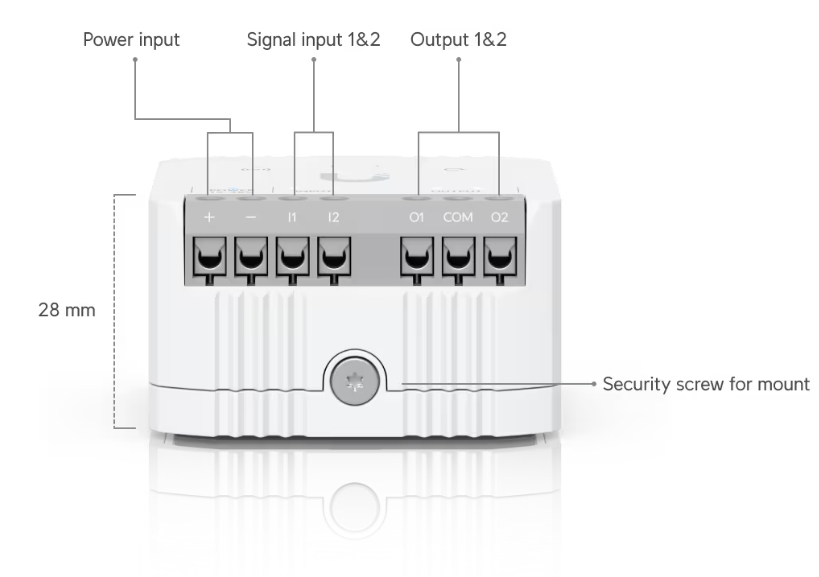

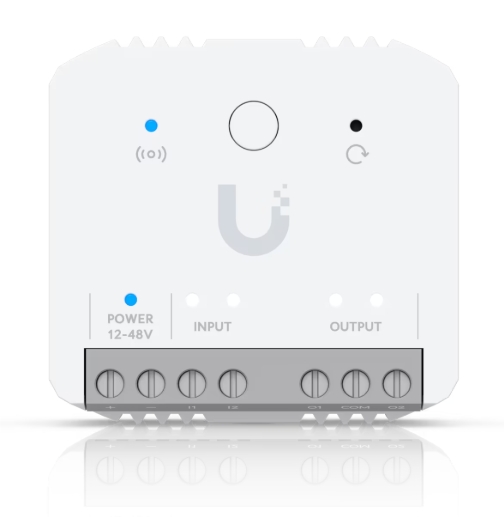

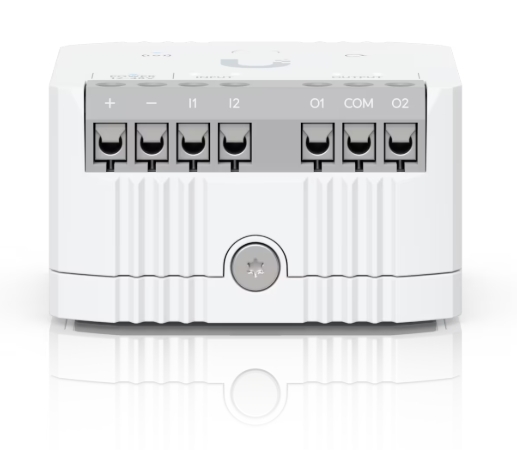

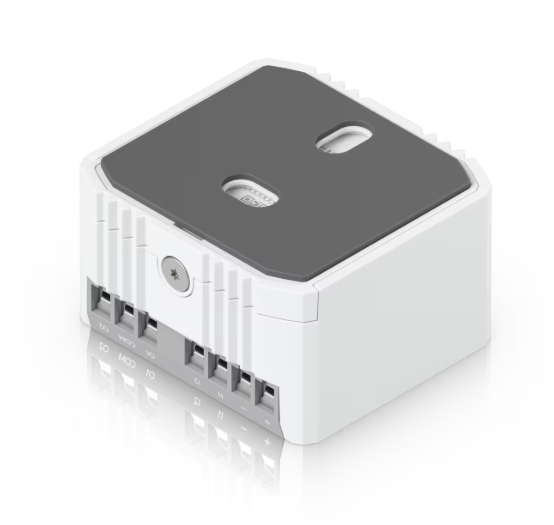

Terminal Blocks
Output
O1/COM/O2 Dry contact only (12-48V DC, 12-240V AC) 10A/port, UL total max: 12A IEC total max: 16A
Input
I1/I2 Dry contact only Open/Short (GND) Integrated 5V TVS protection
Power
VDD/GND 12–48V DC, max. 48V Integrated over-temperature protection (OTP) at 85°C (185°F)
LEDs
(1) LoRa, Status: RGBW (2) Signal input, Relay output: W
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
✓

Application Requirements
Web Application
UniFi Protect
Mobile App
UniFi Protect iOSâ„¢ and Androidâ„¢
