Ubiquiti UniFi Express 7 (UX7)
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.




Dimensions

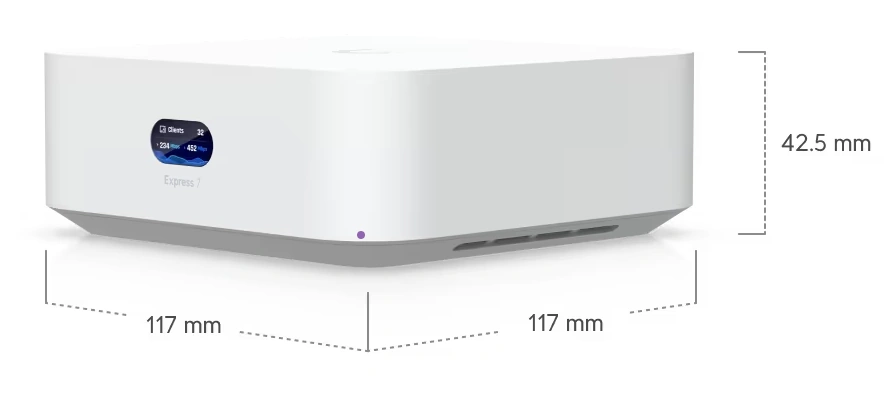

117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67”)

Simultaneous Users Connected
300

Default WAN Ports
(1) 10 GbE RJ45

LAN Ports
(1) 2.5 GbE RJ45

IDS/IPS Throughput
2.3 Gbps

Form Factor
Compact desktop

Application-Aware Layer 7 Firewall
Yes

DPI & Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes

Intrusion Prevention (IPS/IDS)
Yes

IDS/IPS Signatures
20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation
Yes

Identity Endpoint One-Click VPN
Yes

Teleport Zero-Configuration VPN
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

Policy-based WAN and VPN Routing
Yes

Customizable DHCP Server
Yes

WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs
4 per Radio (Gateway Mode) 4 per Radio (AP Mode)

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Max. Power Consumption
22W

Power Method
USB type C (5V DC/5A)

Power Supply
USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range
100-240V AC

Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz

Enclosure Material
Polycarbonate

LCM Display
0.96″ status display

Management
Ethernet Bluetooth

ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature
-10 to 40° C (14 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Guest Traffic Isolation
Yes

UniFi Network
Version 9.0.108 and later
