Ubiquiti UniFi G3 Gate Starter Kit (UA-G3-SK-Gate)

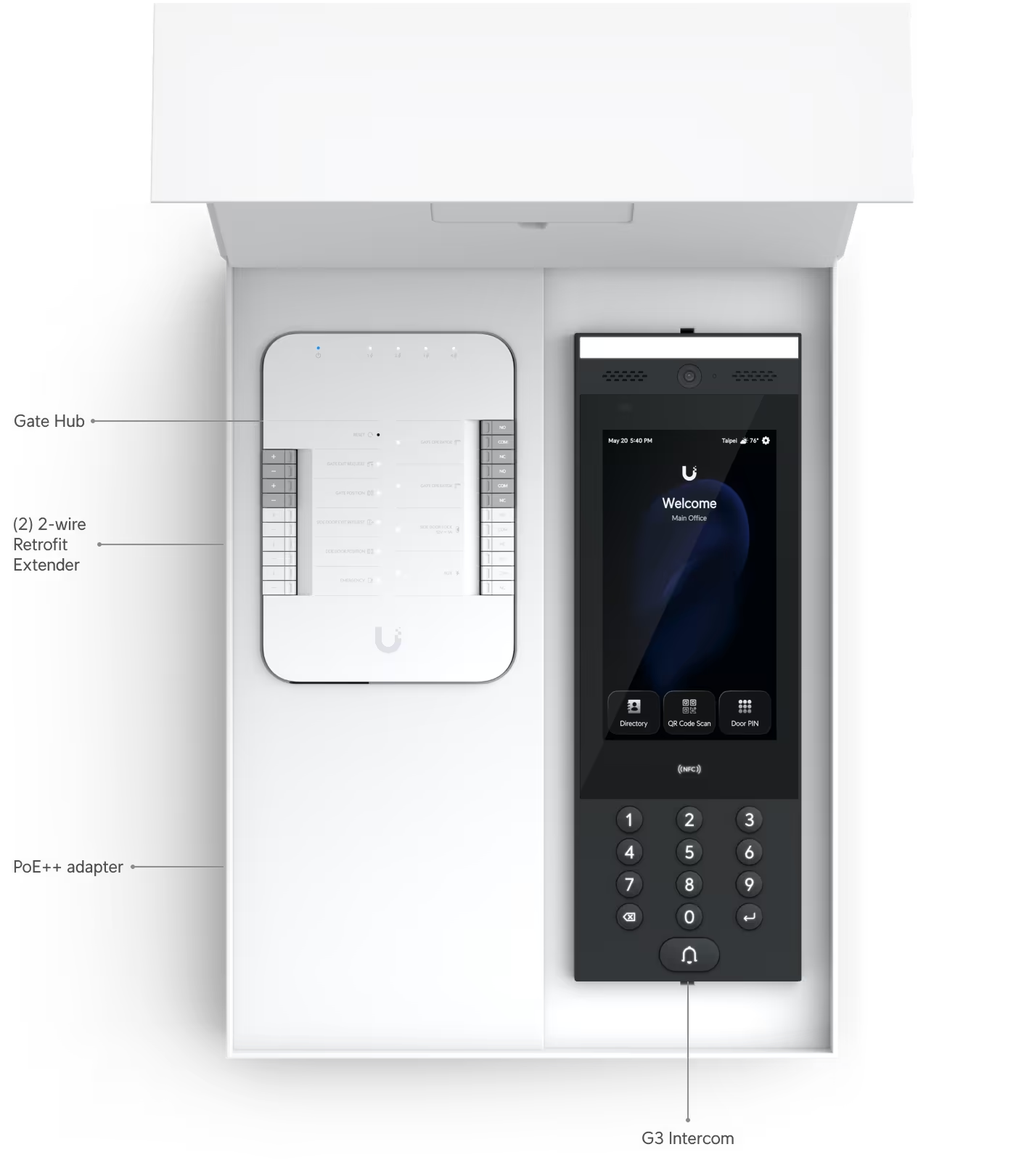

In the Box

(1) Gate Hub (1) G3 Intercom (1) PoE++ adapter (2) 2-wire Retrofit Extenders

Touch Pass

10 free 1-year Touch Passes included

Dimensions

175 x 126 x 26 mm (6.9 x 5 x 1″)

Supported Doors

1 gate, 1 side door

Input Terminals

(1) Gate exit request (1) Gate position (1) Side door exit (1) Side door position (1) Emergency

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Enclosure Material

Polycarbonate

Mounting

DIN-rail (Included)

Weight

460 g (1 lb)

Indoor and Outdoor Use

Indoor only: device itself Outdoor: with waterproof junction box

NDAA Compliant

Yes

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Ambient Operating Temperature

-30 to 60° C (-22 to 104° F)

Ambient Operating Humidity

5 to 90% noncondensing

Networking Interface

(5) 10/100/1000 Base-T

PoE Interface

(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, Max. 28W

Max. Power Consumption

22W (Without PoE output) 50W (With PoE output)

Digital Input

Gate exit request, gate position, side door exit request, side door position, emergency

Dry Output Relay

(2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A

Powered Output Relay

Side door lock: 12V DC, up to 1A

LEDs

W/B

Button

(1) Factory-reset

Recommend Max. Cable Length

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Hub-Gate, V01

Software Information

Dimensions

324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1″)

Integrated Camera

Yes

NFC Card & Keyfob Access

Yes

PIN Access

Yes

Apple/Google Wallet

Yes

Mobile Unlock

Yes

Two-Way Intercom & Doorbell Access

Yes

Weatherproofing

IP65

NDAA Compliant

Yes

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Weight

Device: 965 g (2.1 lb) Bracket: 445 g (1 lb)

Enclosure Material

Aluminum alloy, UV-stabilized polycarbonate, glass

Mount Material

Powder-coated stainless steel

Mounting

Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional)

Indoor and Outdoor Use

Yes

Ambient Operating Temperature

Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F)

Ambient Operating Humidity

5 to 90% noncondensing

Networking Interface

(1) GbE RJ45 port

Connectivity

BLE 4.2 NFC

Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Max. Power Consumption

13W

Supported Voltage Range

48V DC

Sensors

Proximity sensor ALS sensor

Display

177 mm (7″) diagonal

Touch Screen Technology

Capacitive multi-touch

Display Luminance

Max. 1000 nits (Typical)

Resolution

1024 x 600 px

Microphone

Yes

Speaker

(1) Yes, 2W

NFC Frequency

13.56 MHz

NFC Read Range

< 30 mm (1.18”)

NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0

LEDs

Amber

Buttons

(1) Factory-reset

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-G3-Intercom, V01

Software Information

Dimensions

PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1″) Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2″)

Weight

PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) Adapter: 140 g (4.9 oz)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

Coaxial Connector

BNC female

Networking Interface

(1) 10/100 MbE (1) Homeplug AV

Power Method

PoE++

PoE Interface

PoE in: (1) PoE++, 50V DC, 1.2A PoE out: (1) PoE+, 48V DC, 0.6A

Max. Power Consumption

3W (Without PoE output)

ESD/EMP Protection

Air: ±8kV, contact: ±4kV

LEDs

White

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 90% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC

Model

U-PoE++

Dimensions

106 x 63 x 34 mm (4.2 x 2.5 x 1.3″)

Weight

210 g (7.4 oz)

Output Voltage

48V DC @ 1.25A

Gigabit LAN Port

Yes

Rated Voltage

100—240V AC @ 50/60Hz

Input Current

1.3A @ 120V AC 0.75A @ 230V AC

Inrush Current

<100A peak @ 120V AC <200A peak @ 230V AC

Efficiency

85+%

Output Ripple

1% max.

Switching Frequency

65 kHz

Line Regulation

≤ 1%

Load Regulation

≤ 3%

4-pair Powering

Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

AC Connector

IEC-320 C6

Data In / PoE

RJ45 shielded socket

Surge Protection

Difference and common mode

Clamping Protection

11V data, 60V power

Max. Surge Discharge

1500A (8/20 μs) power

Peak Pulse Current

36A (10/1000 μs) data

Shunt Capacitance

<5 pF data

Response Time

<1 ns

Power Method

Universal AC input, 100—240V AC, 50/60 Hz

Power Supply

AC/DC

Supported Voltage Range

100—240V AC

Max. PoE+ Wattage per Port by PSE

60W

Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS

NDAA Compliant

Yes
