Ubiquiti UniFi UPS 2U (UPS-2U)

Compara
Pretul afisat contine TVA (21%).

1.799,29 lei

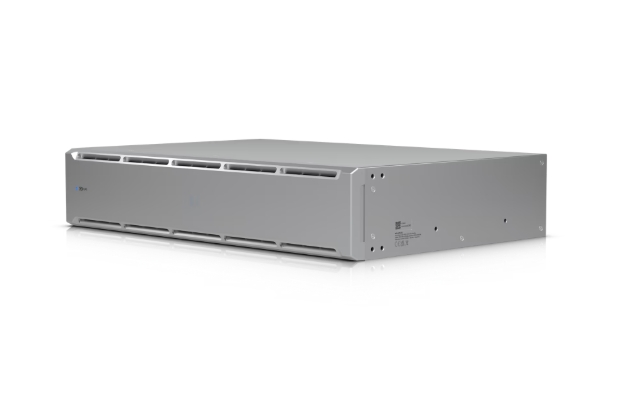

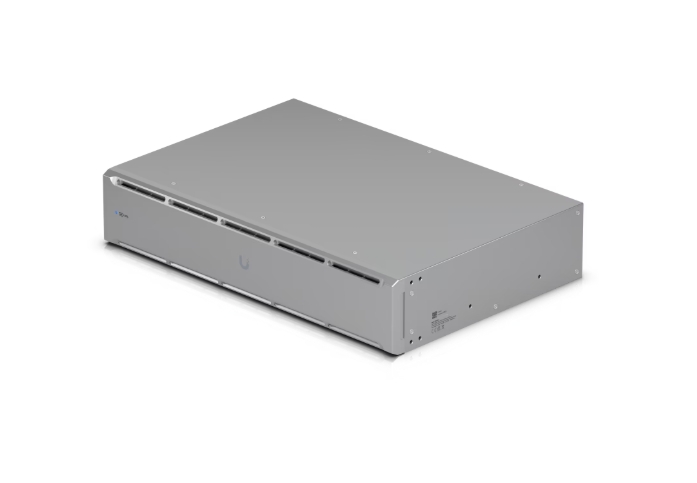

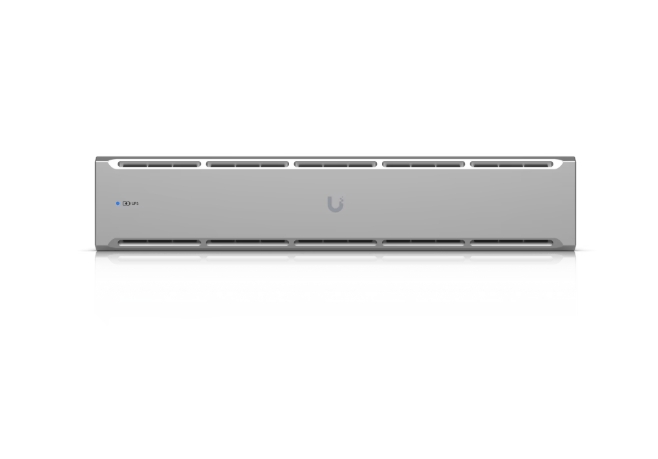

Ubiquiti UniFi UPS 2U (UPS-2U)



UniFi managed 1.5kVA rackmount uninterruptible power supply with 8 outlets and field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes, UniFi Alarm Manager ready and NUT support for 3rd party devices.

Compatibility
UCG-Fiber
UDM-Pro
UDM-Pro-Max
UDM-SE
UDR
UDR7
UX
UX7
USW-16-POE
USW-24
USW-24-POE
USW-48
USW-48-POE
USW-Aggregation
USW-Enterprise-8-PoE
USW-Enterprise-24-PoE
USW-EnterpriseXG-24
USW-Flex
USW-Flex-2.5G-5
USW-Flex-2.5G-8
USW-Flex-2.5G-8-PoE
USW-Flex-Mini
USW-Flex-Utility
USW-Flex-XG
USW-Lite-8-PoE
USW-Lite-16-PoE
USW-Pro-8-PoE
USW-Pro-24
USW-Pro-24-POE
USW-Pro-48
USW-Pro-48-POE
USW-Pro-Aggregation
USW-Pro-HD-24
USW-Pro-HD-24-PoE
USW-Pro-Max-16
USW-Pro-Max-16-PoE
USW-Pro-Max-24-PoE
USW-Pro-Max-48
USW-Pro-Max-48-PoE
USW-Pro-XG-10-PoE
USW-Pro-XG-24
USW-Pro-XG-24-PoE
USW-Pro-XG-48
USW-Pro-XG-48-PoE
USW-Ultra
USW-Ultra-60W
USW-Ultra-210W
USW-WAN
USW-WAN-RJ45
UNAS-2
UNAS-Pro
UNVR
UNVR-Pro
UXG-Pro
SKU: UPS-2U Categorii: , , , ,

Dimensions

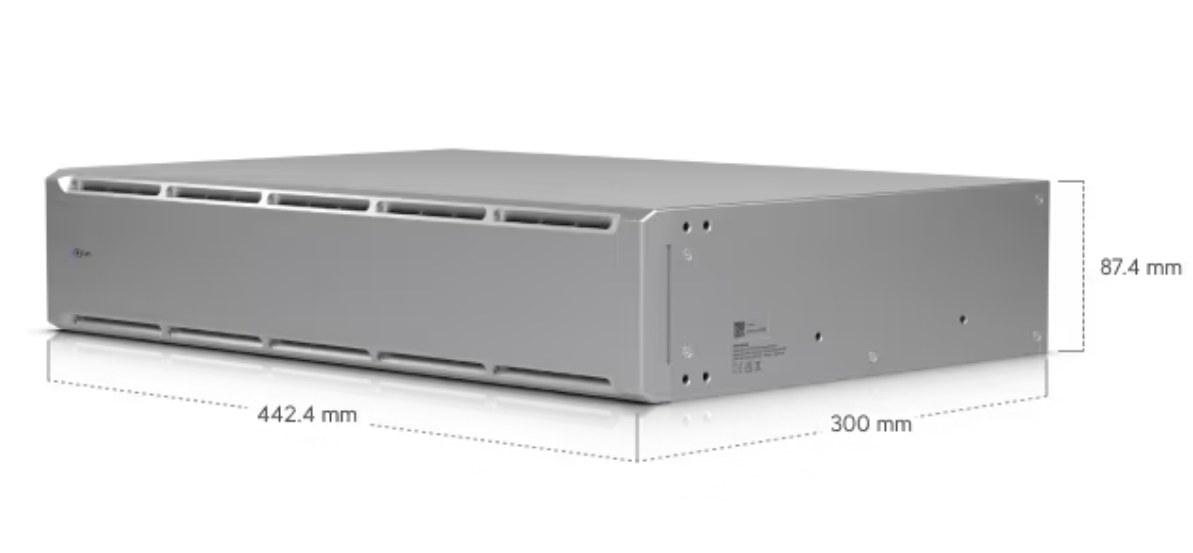

442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4″)
Weight
13.7 kg (30.2 lb)
Enclosure Material
Galvanized steel
Form Factor
Rack mount (2U)
Weatherproofing
IP20

Management
Ethernet
Networking Interface
(1) 100/10 MbE port for network connection (2) GbE ports for surge in/out
Power

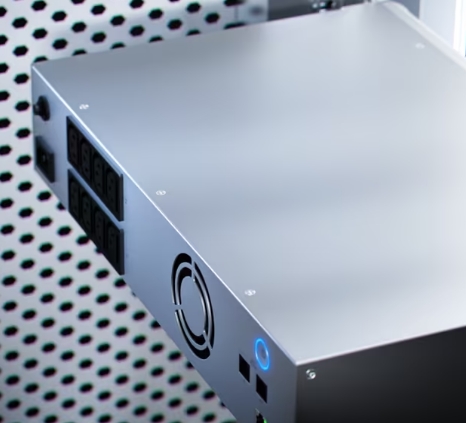

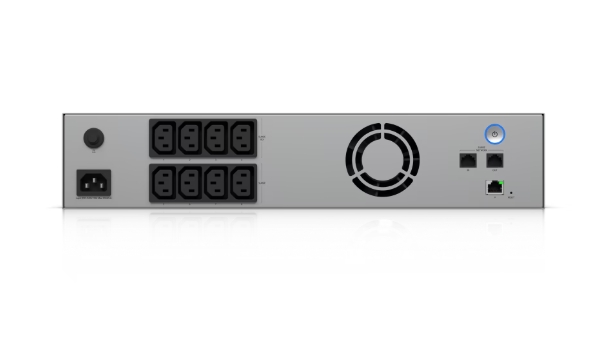

(1) OVC II AC in: C14 socket (4) Battery backup/surge protection: C13 (4) Surge protection: C13
Capacity
1,500VA/1,000W
Type
Line interactive
Input Voltage Range
170—280V AC
Power Method
(1) TN system, 220—240V AC, 10A Max., 50/60 Hz
Nominal Input Voltage
230V AC
Output Voltage
220—240V AC
Nominal Output Voltage
230V AC
Frequency Range
AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz
AC Voltage Regulation
±10% (Battery mode)
Transfer Time
6 ms typical; 10 ms max. (Battery mode)
Wave Form
Simulated sine wave (Battery mode)
Battery Type
(2) Lead Acid 12V, 9Ah
Runtime
Full load: 2.3 min Half load: 8 min
Battery Charging Time
6-8 hours recovery to 90% capacity
Overload at On-Line Mode
110% 5 min go to fault 120% go to fault immediately
Overload at Battery Mode
110% shutdown in 5 sec 120% shutdown immediately
Short Circuit Protection at On-Line Mode
Breaker, 250V AC, 10A
Output Short-Circuit Current
Ipeak 444.0A Irms 223.1A
Buttons
(1) Power (1) Factory reset
LEDs
Status
Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery
Operating Altitude
3,000 m (1.9 mi)
Operating Environment
Pollution Degree 2
Ambient Storage Temperature
-20 to 50° C (-4 to 122° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
0 to 95% noncondensing
Certifications
CE, IEC 62040-1
