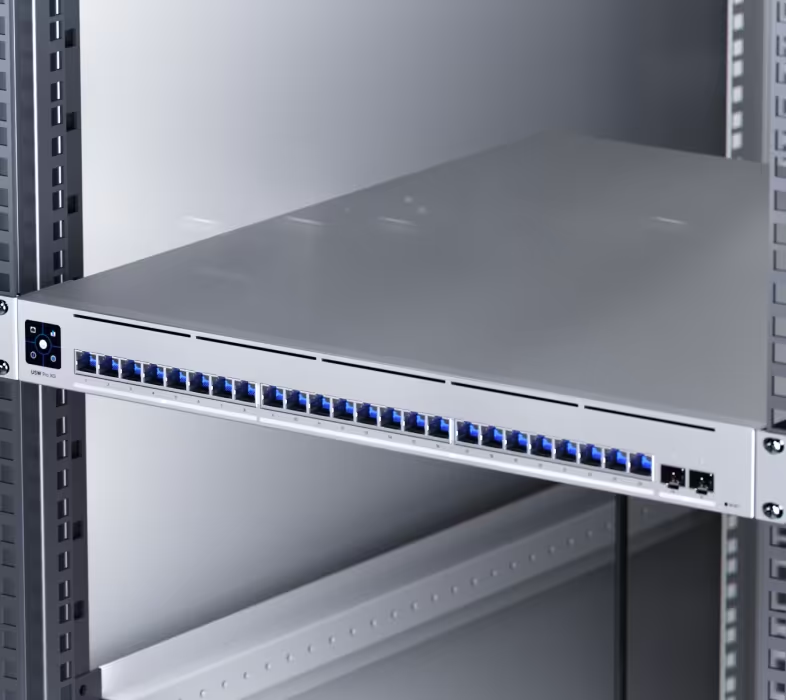

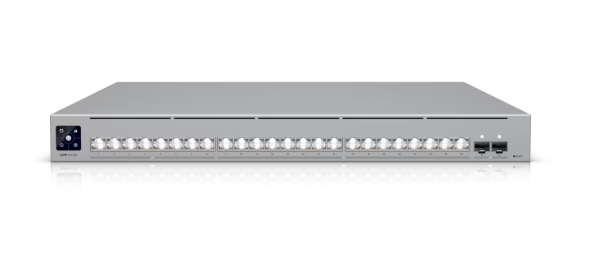

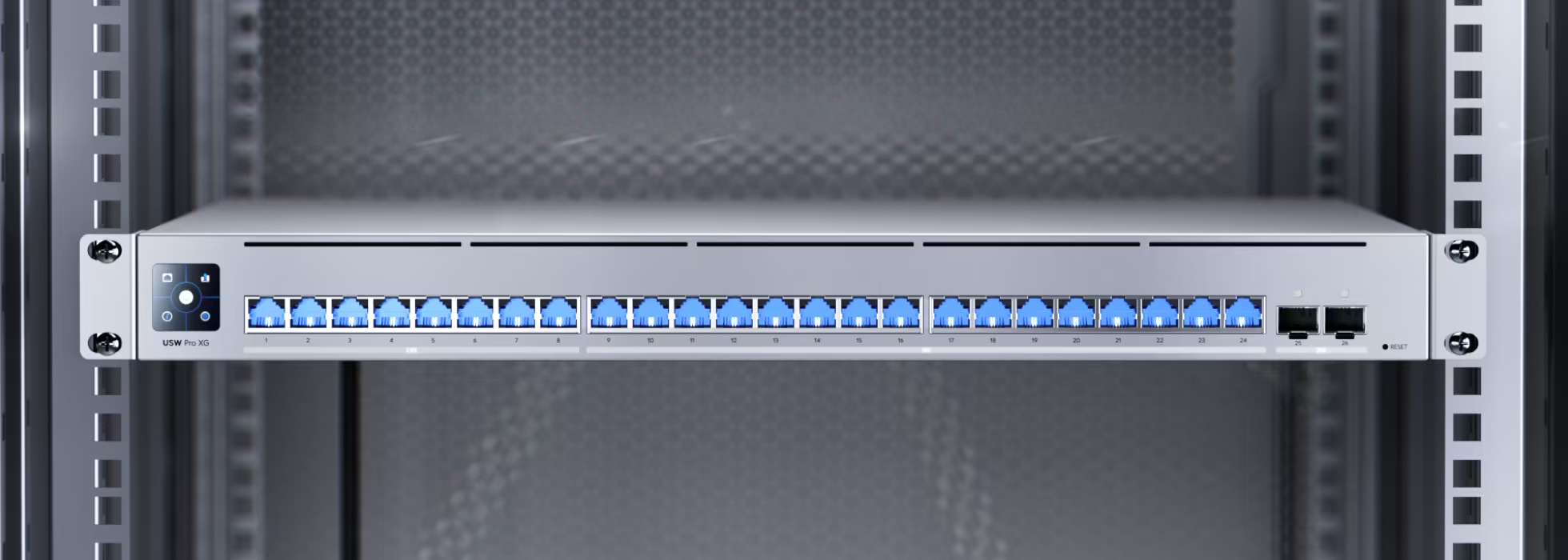

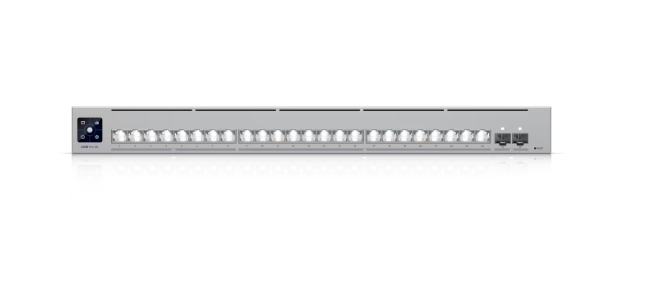

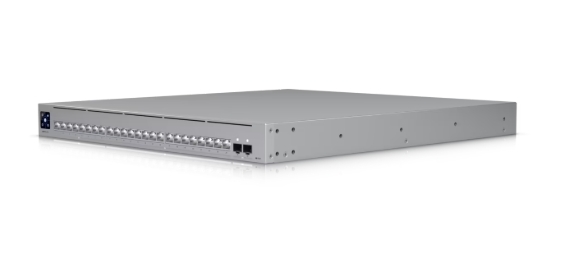

Ubiquiti UniFi Switch Pro XG 24 (USW-Pro-XG-24)


Pretul afisat contine TVA (19%).

6.682,97 lei

Ubiquiti UniFi Switch Pro XG 24 (USW-Pro-XG-24)



Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

SKU: USW-Pro-XG-24 Categorii: , , , ,

Dimensions
442 x 480 x 44 mm (17.4 x 18.9 x 1.7″)
Port Layout
2.5 GbE RJ45
8 (2.5G/1G/100M/10M)
10 GbE RJ45
16 (10G/5G/2.5G/1G/100M/10M)
25G SFP28
2 (25G/10G/1G)
Redundancy
DC Power Backup
Layer 3
Form Factor
Rack mount (1U)
Etherlighting™

Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
Yes
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256

DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)

LACP Port Aggregation
STP & RSTP
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection

Max. Power Consumption
150W
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 200W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 7.2 kg (15.9 lb) With mounting brackets: 7.3 kg (16.1 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel

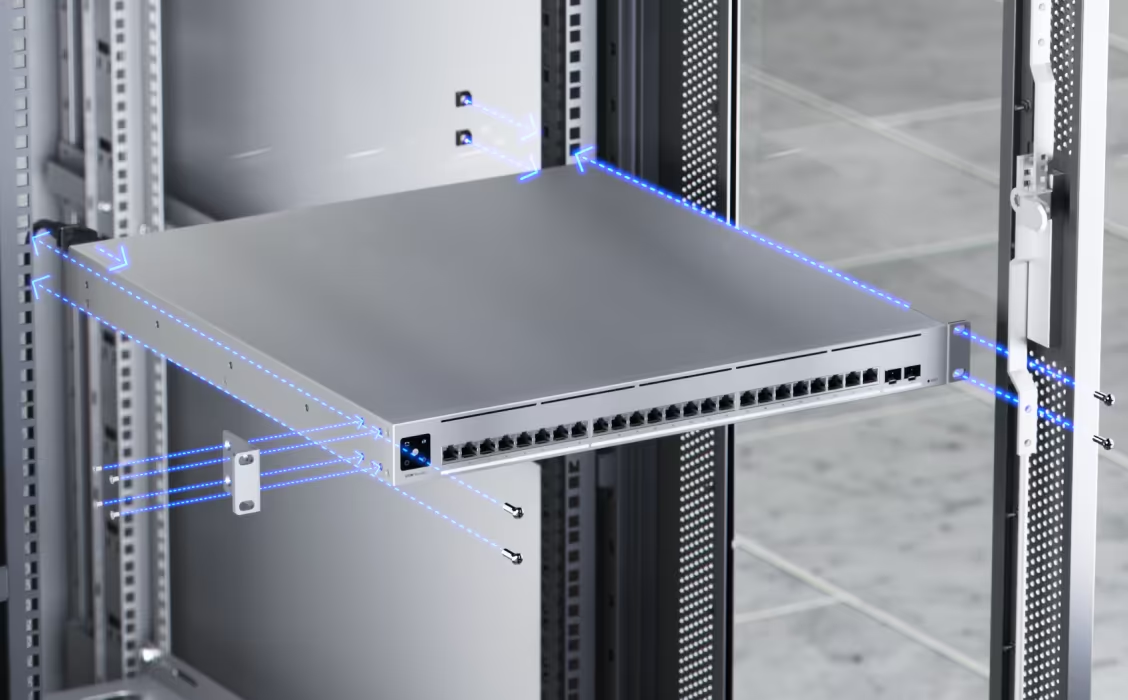

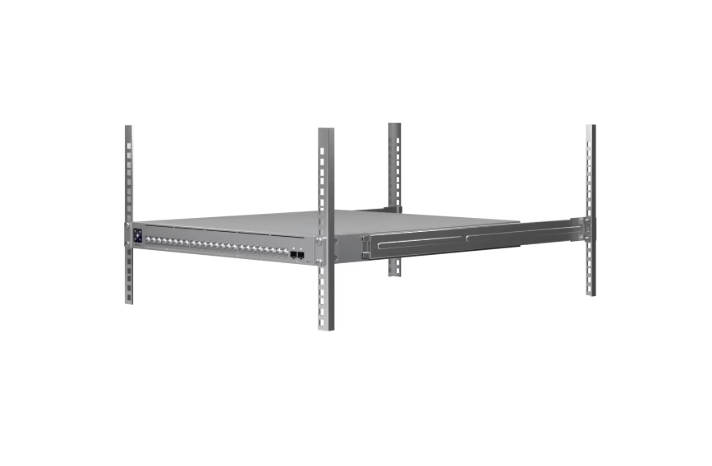

Supported Rack Depth
482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display
1.3″ touchscreen
ESD/EMP Protection
Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
SFP28
LEDs
RPS
NDAA Compliant
Certifications
CE, FCC, IC

Application Requirements
UniFi Network
Version 9.0.114 and later
