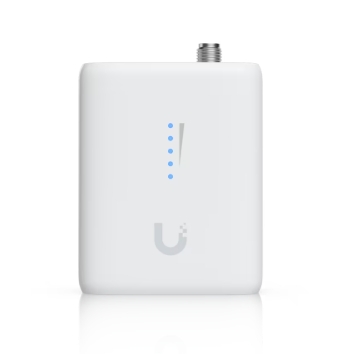

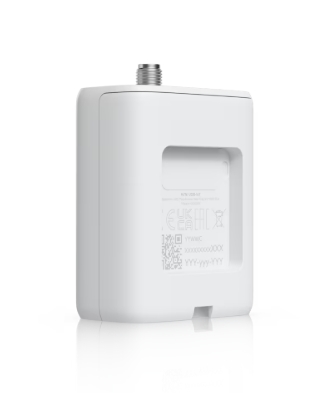

Ubiquiti UniFi Device Bridge IoT (UDB-IoT)


Wi-Fi 6 Access Point with dual-band 2×2 MIMO in a compact design for low-profile mounting.

Pretul afisat contine TVA (21%).

302,85 lei

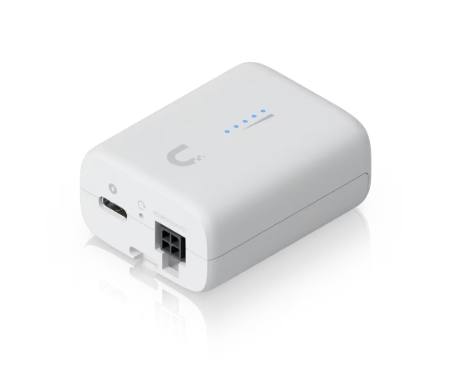

Ubiquiti UniFi Device Bridge IoT (UDB-IoT)

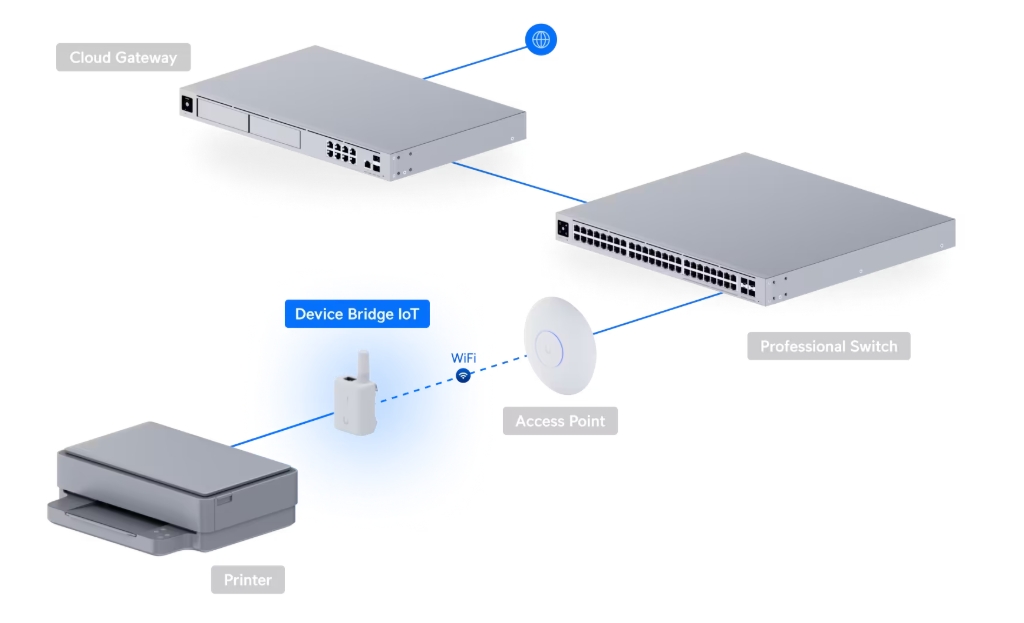

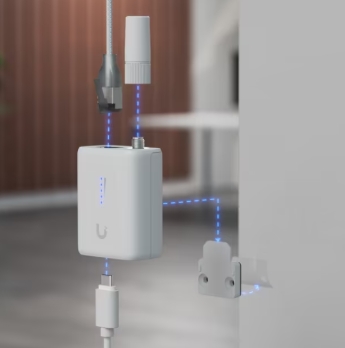

Ultra-compact wireless bridge for IoT devices with integrated UniFi WiFi Auto-Link, versatile mounting options, and powered by USB Type-C or 4-pin DC socket.



SKU: UDB-IoT Categorii: , , , , ,

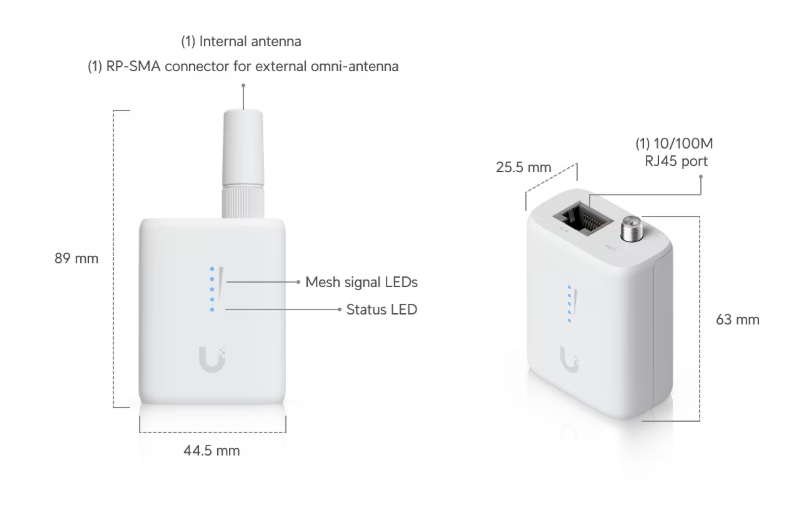

Dimensions
Device: 63 x 44.5 x 25.5 mm (2.5 x 1.8 x 1″) With external antenna: 89 x 44.5 x 25.5 mm (3.5 x 1.8 x 1″)
WiFi Standard
WiFi 4
Spatial Streams
2

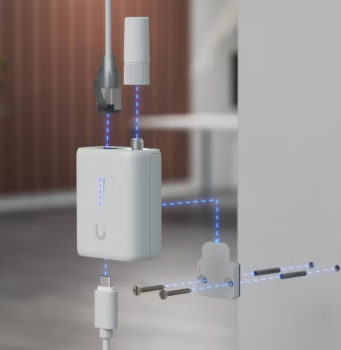

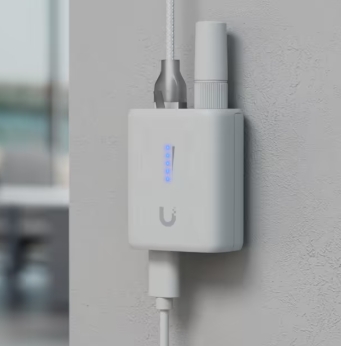

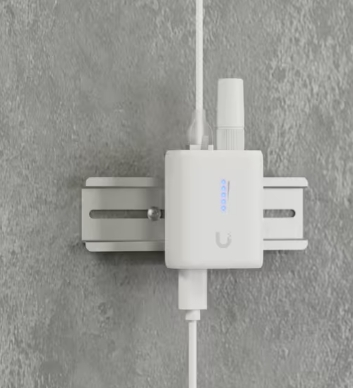

Mounting Locations

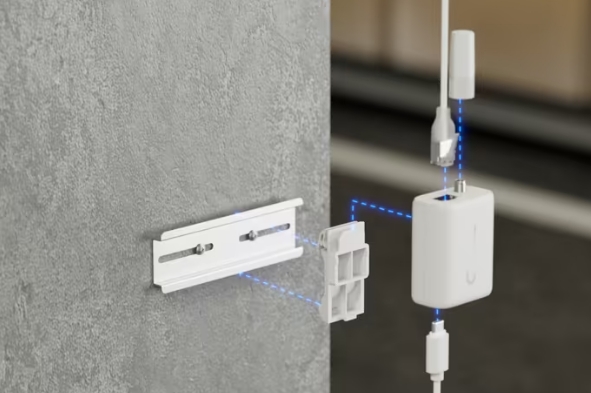

Wall, DIN rail
Mounting
Included mount

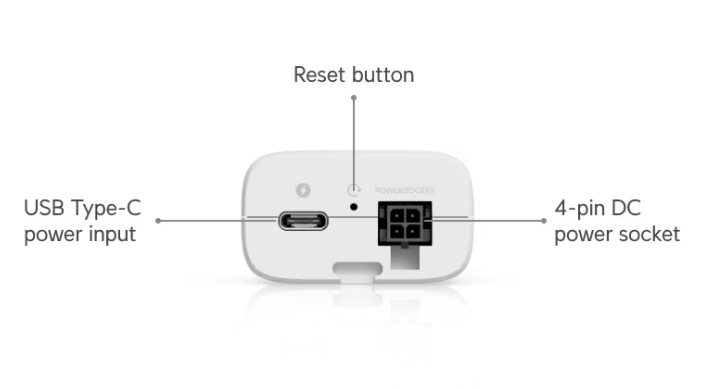

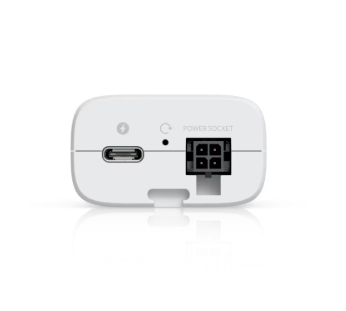

Power Method
USB Type-C (5V DC, 1A) 4-pin DC (9–30V DC)

MIMO
2.4 GHz
2 x 2
Max. Data Rate
2.4 GHz
300 Mbps (BW40)
Antenna Gain
2.4 GHz
Internal: 4dBi External omni: 3dBi
Max. TX Power
2.4 GHz
20 dBm
Max. Conducted TX Power
20 dBm (Combined)
Supported Data Rates
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Wireless Security
WPA2 AES (Always On)

Max. Power Consumption
2.3W
Supported Voltage Range
USB-C: 5V DC Socket: 9–30V DC

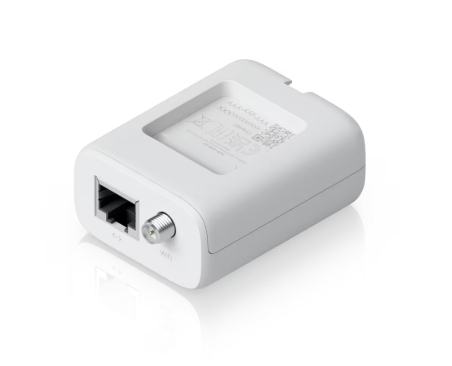

Networking Interface
(1) 10/100M RJ45 port

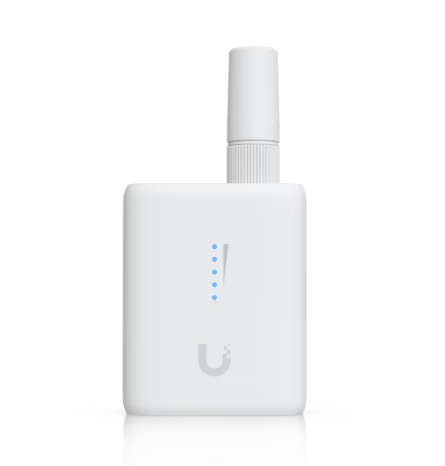

Antennas
(1) Internal antenna (1) RP-SMA connector for external omni-antenna
Management
WiFi
Channel Bandwidth
20/40 MHz
Weight
Device: 45 g (1.6 oz) With external antenna: 53 g (1.9 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Button
(1) Factory reset
LEDs
System
(4) Blue: signal (1) White/blue: indicator
NDAA Compliant
✓

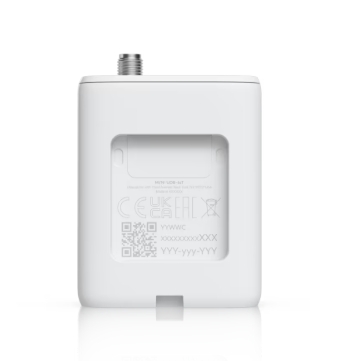

Certifications
CE, FCC, IC
Ambient Operating Temperature
-10 to 50° C (14 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
