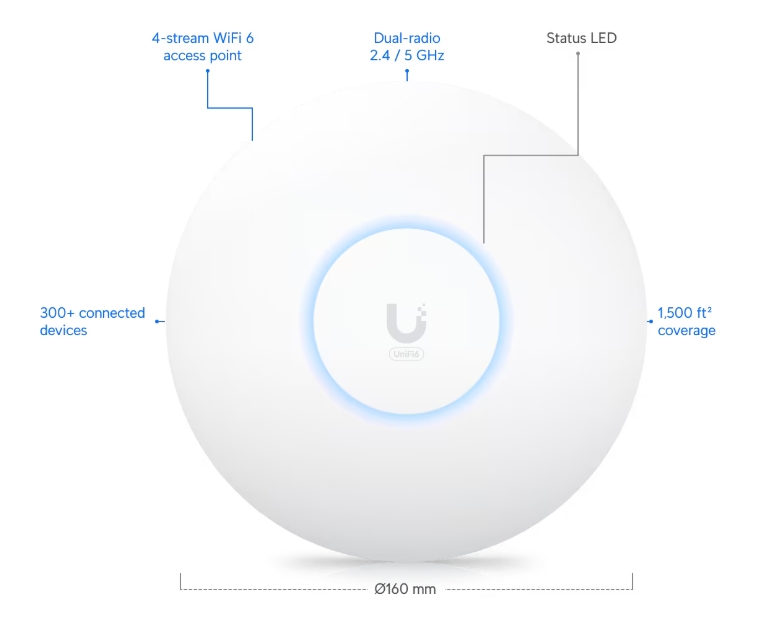

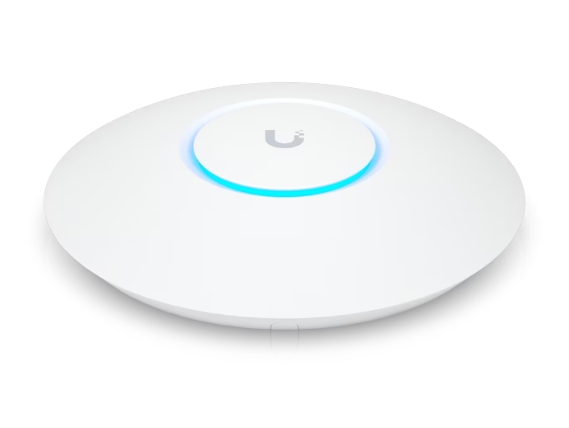

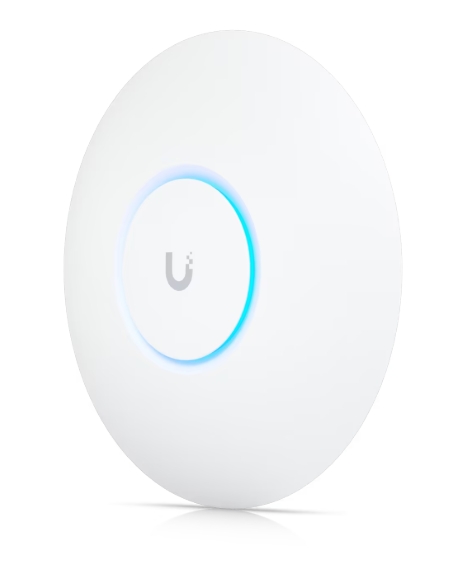

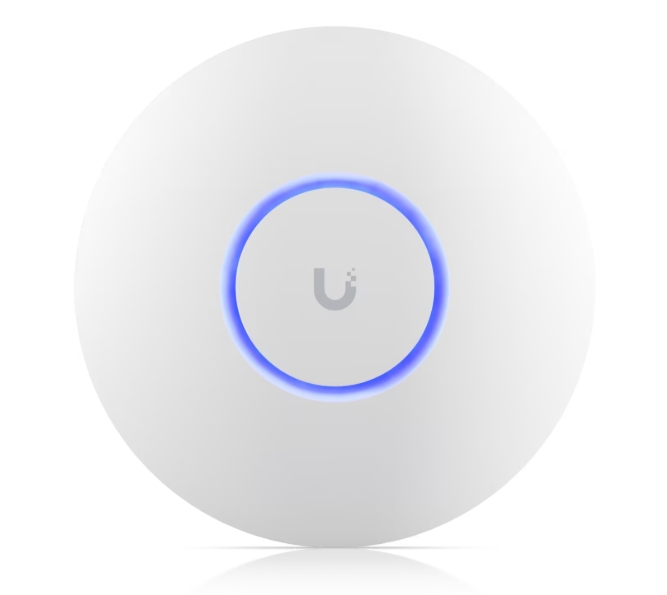

Ubiquiti UniFi Access Point U6 Plus (U6+)
Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams that improves upon the U6 Lite with higher performance and dual-band WiFi 6 support. Ideal for small and medium-sized businesses.

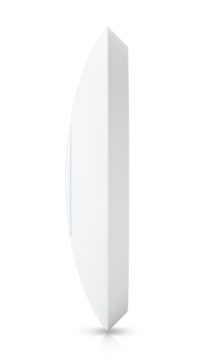

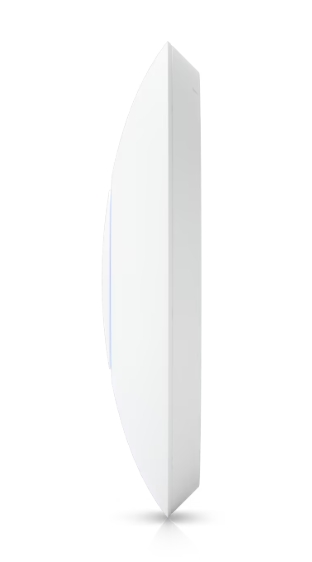

Dimensions

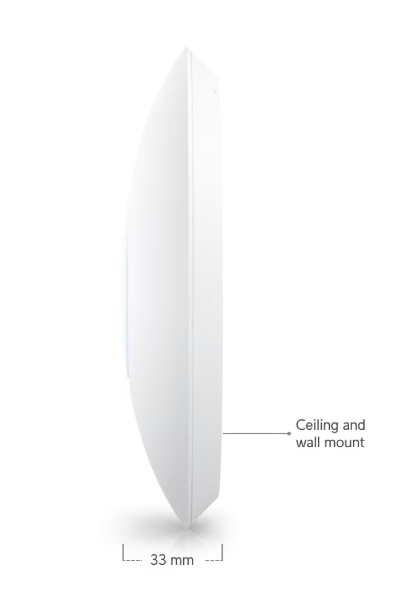

Ø160 x 33 mm (Ø6.3 x 1.3″)
WiFi Standard
WiFi 6
Spatial Streams
4
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
300+
Uplink
GbE

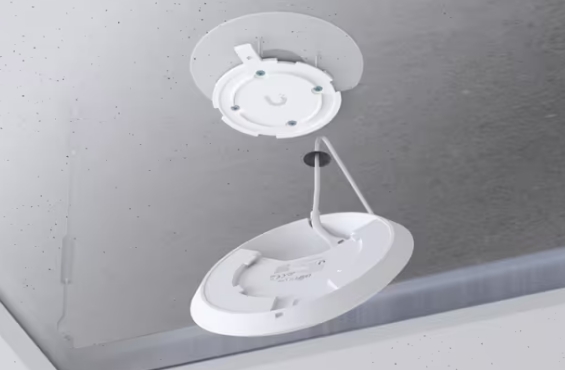

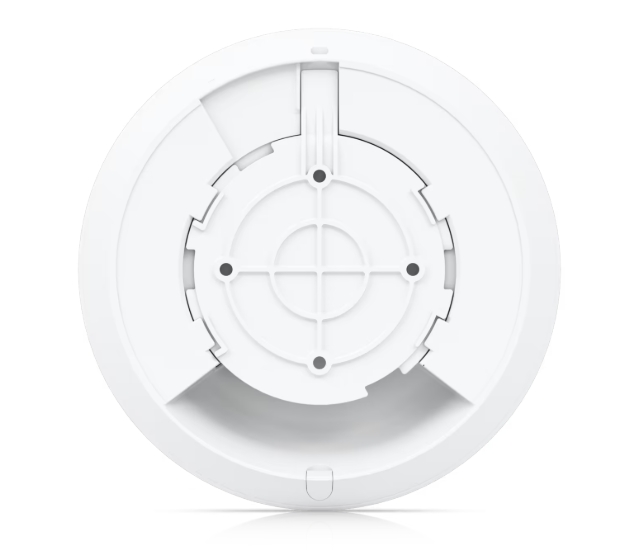

Mounting

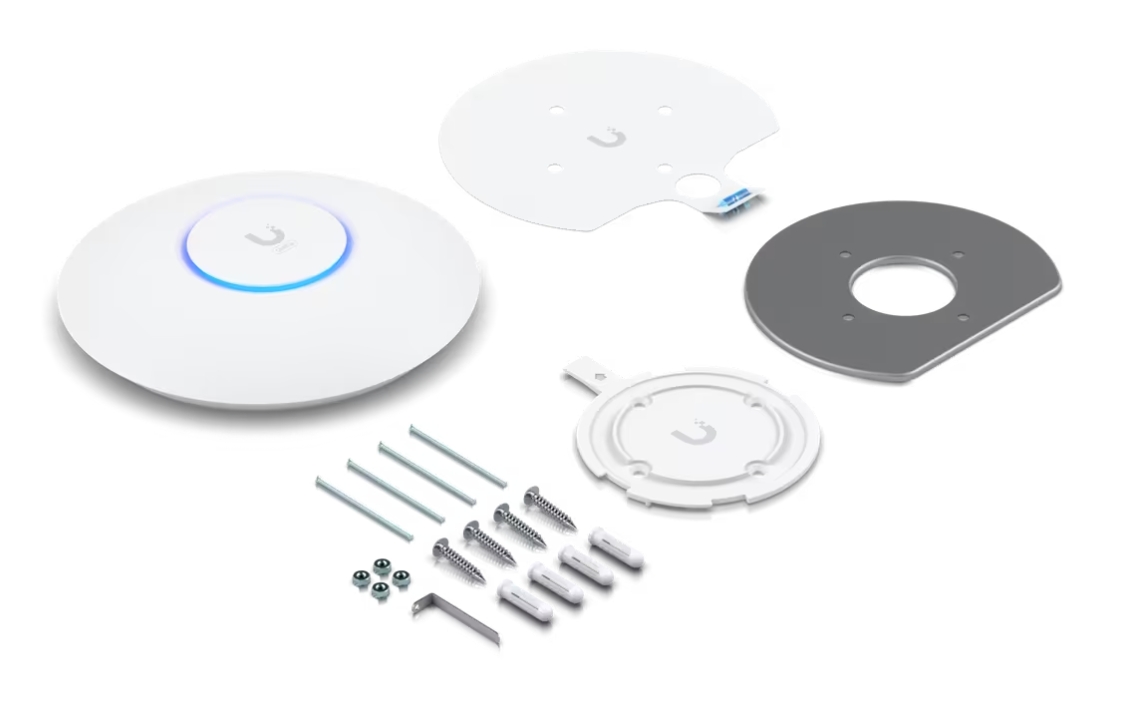

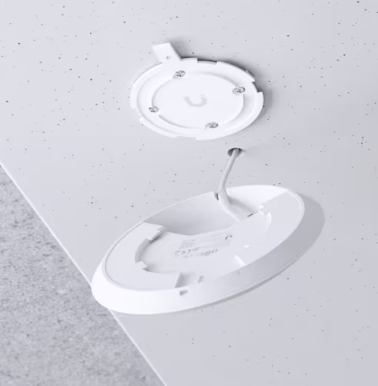

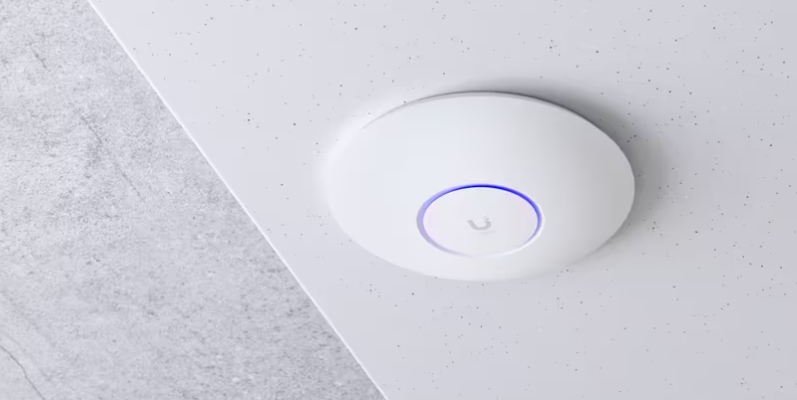

Ceiling, Wall (Mounts Included)

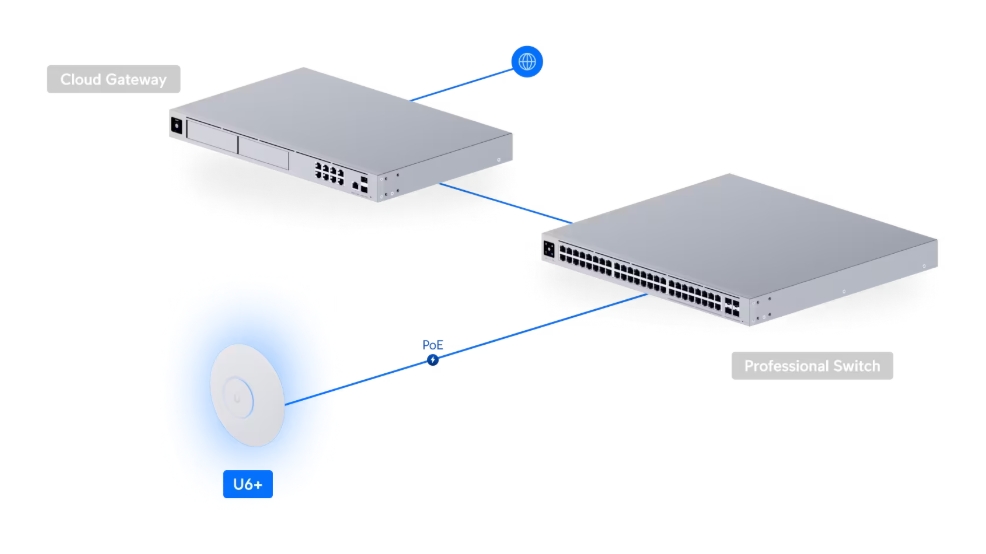

Power Method
PoE
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
2.4 Gbps (BW160)
2.4 GHz
573.5 Mbps (BW40)
Antenna Gain
5 GHz
5.4 dBi
2.4 GHz
3 dBi
Max. TX Power
5 GHz
23 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Max. Power Consumption
9W
Supported Voltage Range
44—57V DC
Networking Interface

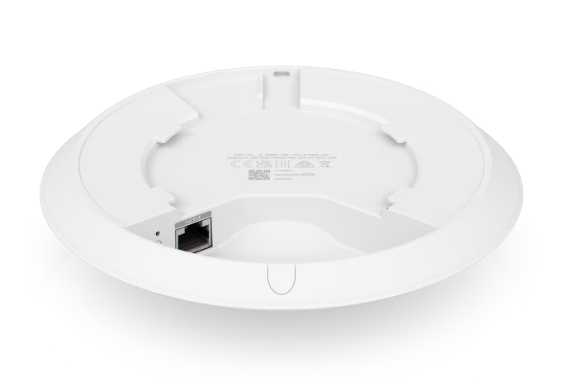

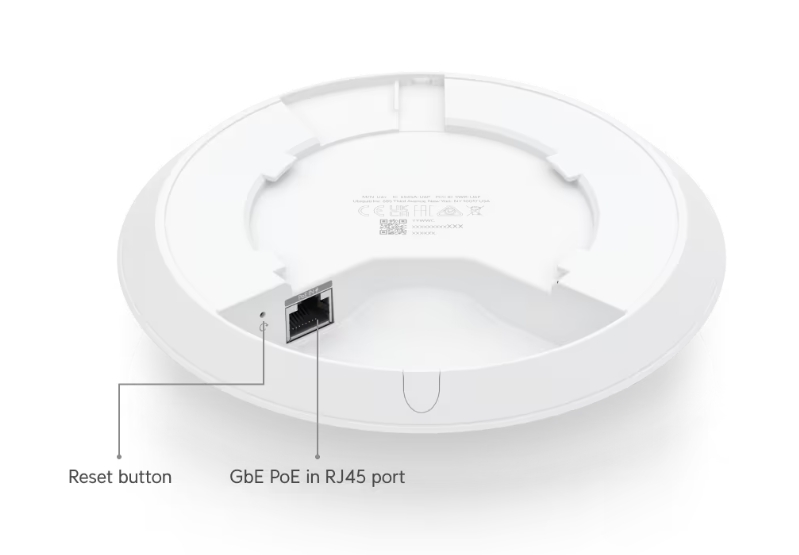

(1) GbE RJ45 port
Weight
Device: 338 g (11.9 oz) With mount: 413 g (14.6 oz)
Management
Ethernet
Enclosure Material
Polycarbonate, aluminum
Mount Material
ABS, SGCC steel
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel, SRRC
Operating Frequency
US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 7.3.76 and later
