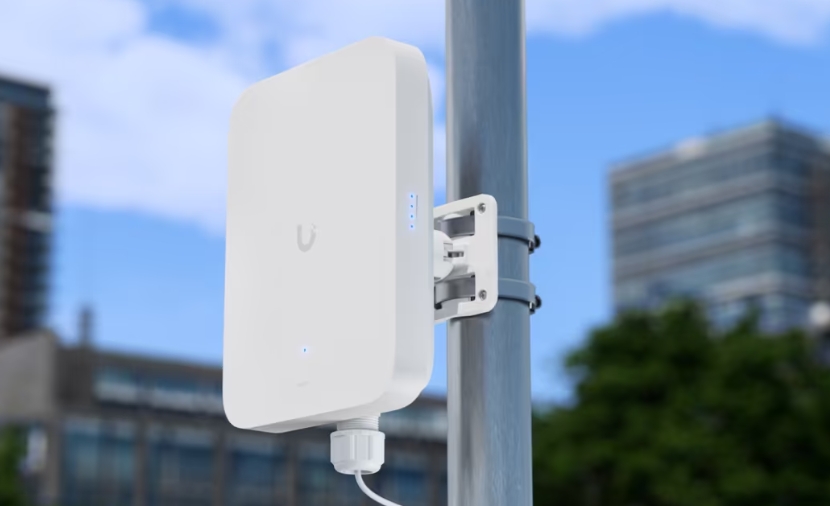

Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor)
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 2
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 3
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 4
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 5
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 6
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 7
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 8
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 9
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 10
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 11

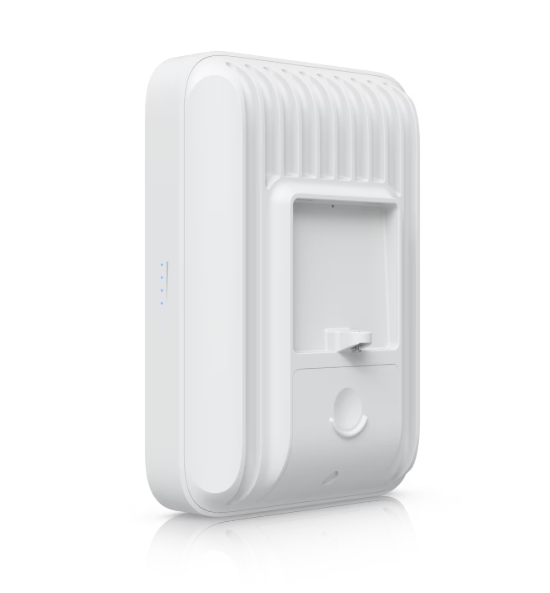

Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 12
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 13
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 14
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 15
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 16
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 17
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 18
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 19
Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor) - imagine 20
, , , , ,

Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor)

Compara

Wi-Fi 6 Access Point with dual-band 2×2 MIMO in a compact design for low-profile mounting.

Pretul afisat contine TVA (21%).

2.471,05 lei

Ubiquiti UniFi 5G Max Outdoor (U5G-Max-Outdoor)

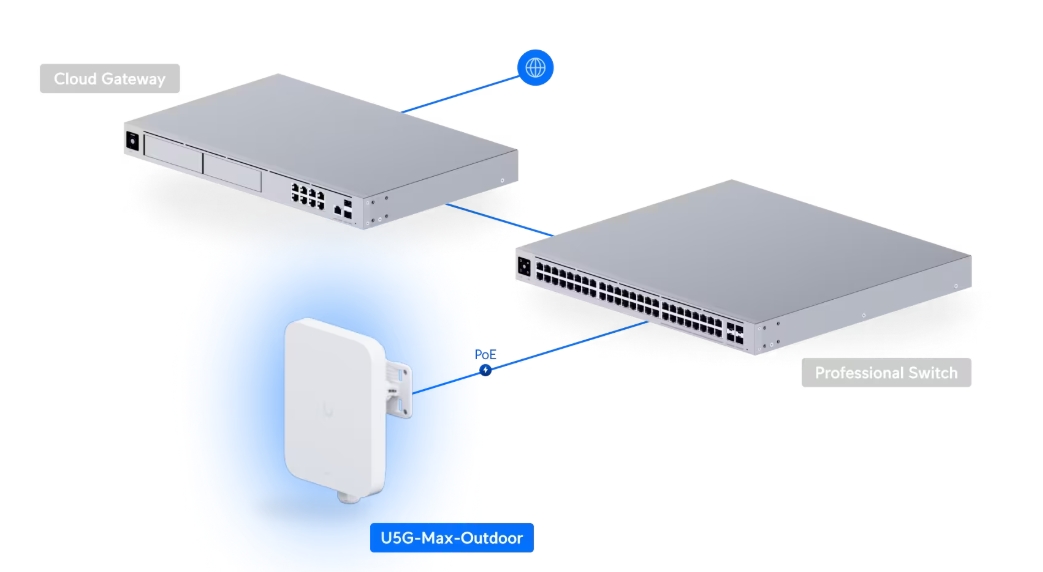

A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, designed for outdoor use with directional antennas, remote SIM*, and dual SIM for seamless failover.

*Remote SIM coming in a future update.





















SKU: U5G-Max-Outdoor Categorii: , , , , ,

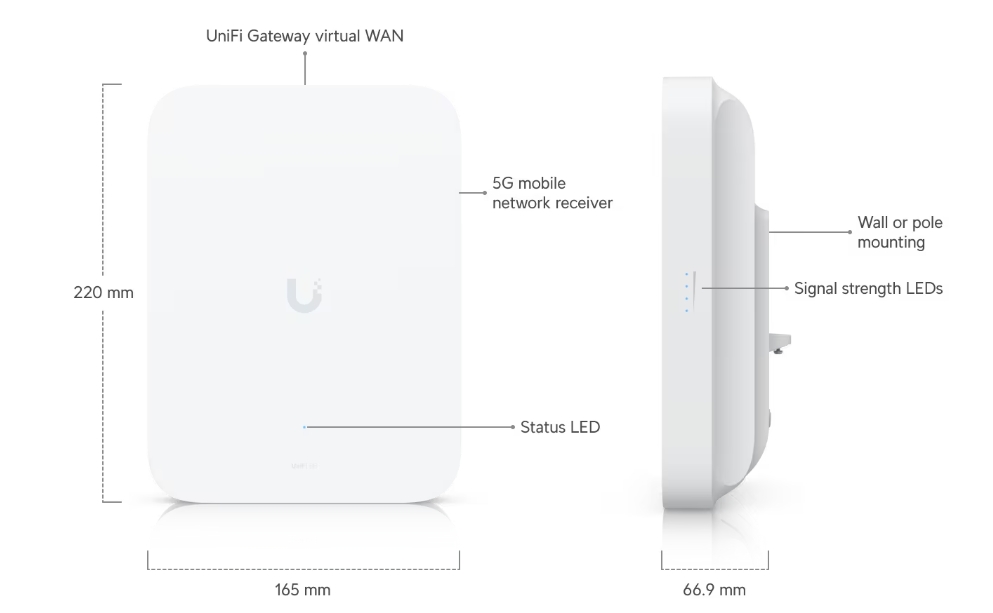

Dimensions
Device: 220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6″) With mount: 220 x 165 x 122 mm (8.7 x 6.5 x 4.8″)

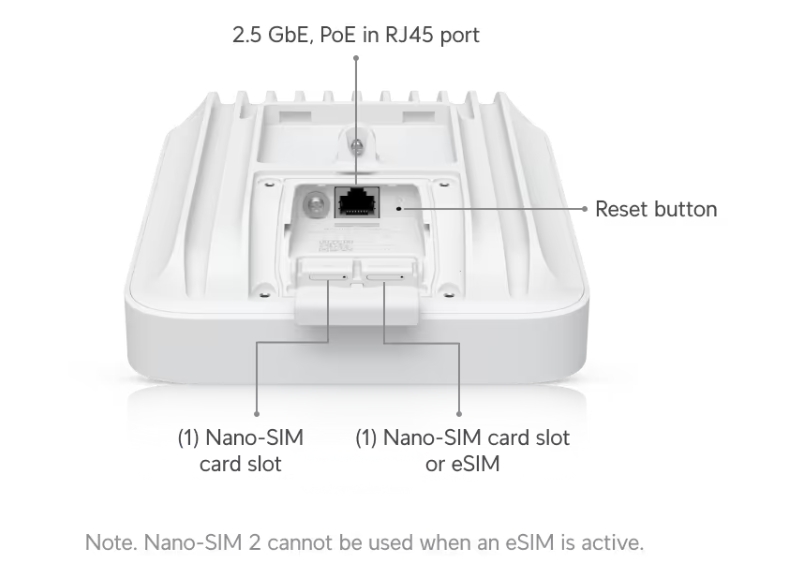

Networking Interface

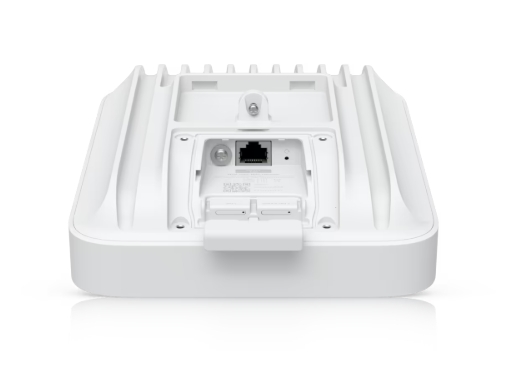

(1) 2.5 GbE RJ45 port 5G NR and LTE radio
SIM
(1) Nano SIM (1) Nano-SIM or eSIM
PoE Interface
(1) PoE input

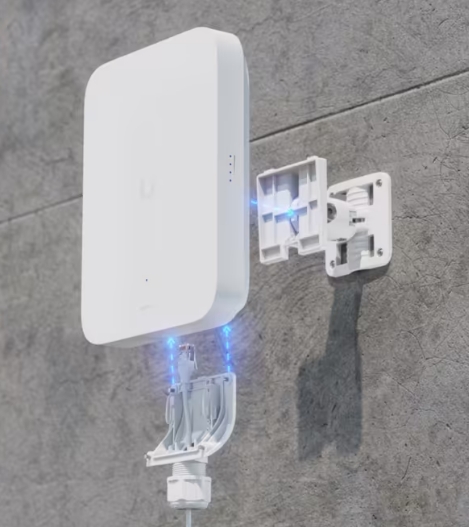

Mounting

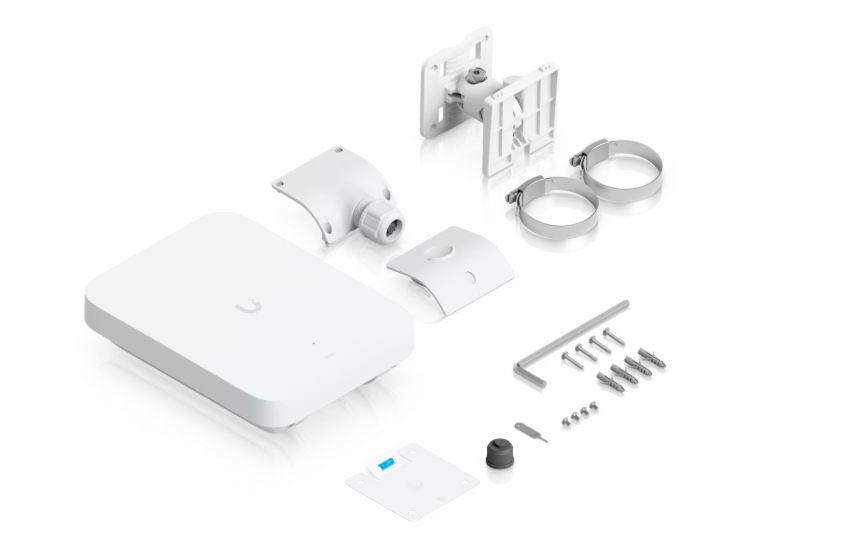

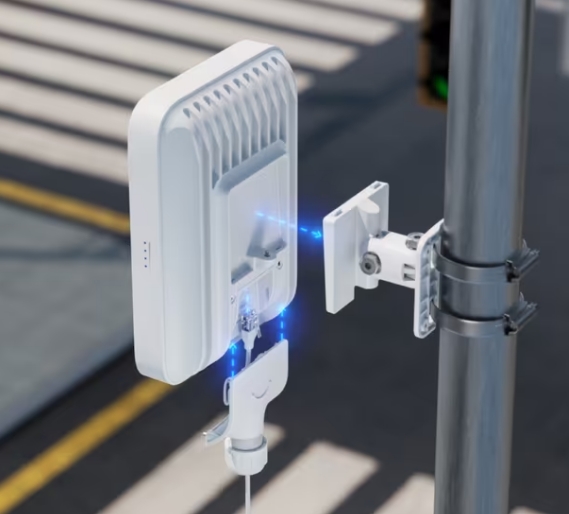

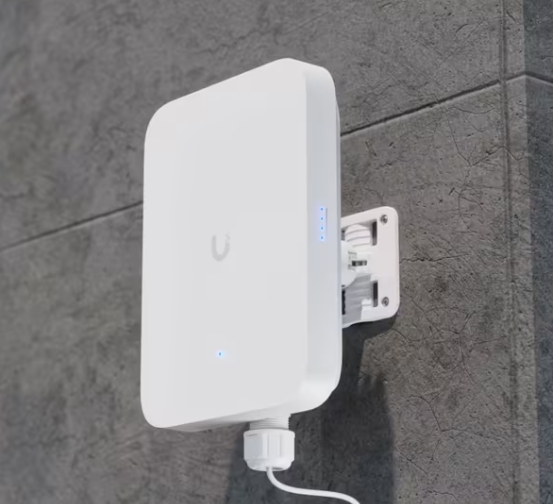

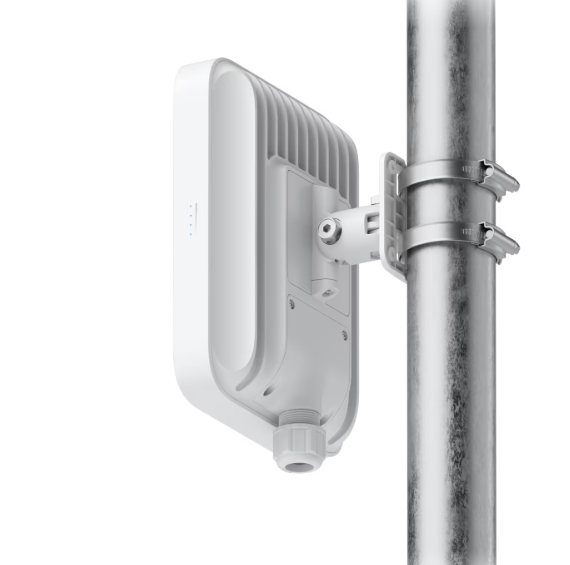

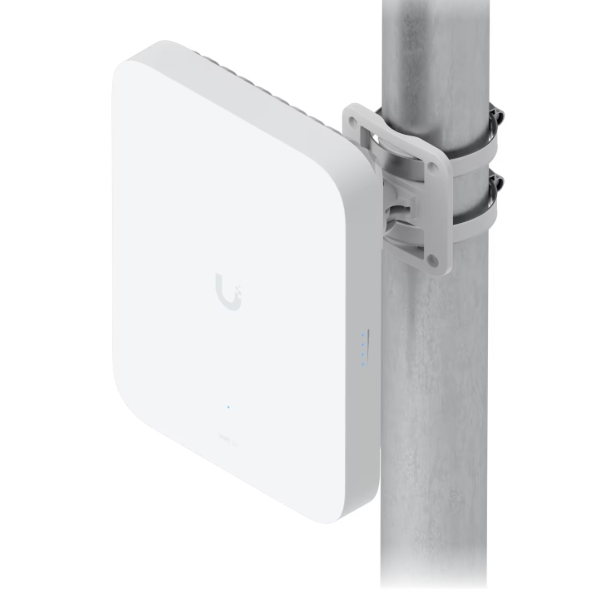

Pole mount, wall mount (Included)
Weatherproofing

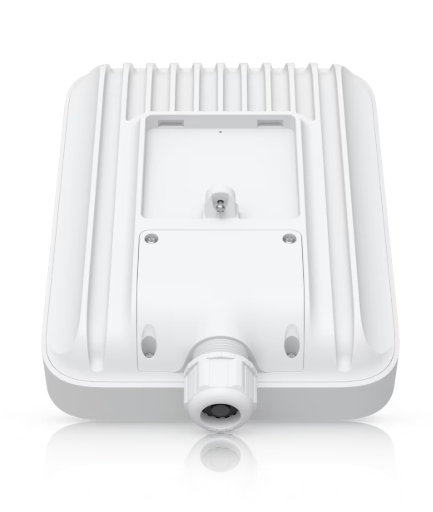

IPX6 IP67 (With cable-gland door kit)

Weight
Device: 1.2 kg (2.6 lb) Mount: 130 g (4.6 oz)
Enclosure Material
Aluminum-alloy, UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate
Pole Mount Diameter
1–2.5″ (25–63.5 mm) on pipe outer diameter
Wind Loading
91N at 200 km/h (20.45 lbf at 125 mph)

Management
Ethernet
5G NR
Category
5G NR
Frequency Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Max. TX Power
HPUE power class 2: 26 dBm
4G LTE
Frequency Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power
HPUE power class 2: 25 dBm
3G UMTS
Frequency Bands
B1, B2, B4, B5, B8, B19
Peak Data Speed
5G NSA
Downlink 3.4 Gbps Uplink 560 Mbps
5G SA
Downlink 1.8 Gbps Uplink 650 Mbps
4G LTE
Downlink 1.6 Gbps Uplink 210 Mbps
Antennas
Type
(6) Embedded cellular antennas, including (2) high-gain for downlink: peak 9 dBi, 85°x85°
Max. Power Consumption
14.5W
Power Method
PoE
Buttons
(1) Factory-reset
LEDs
✓
Ambient Operating Temperature
-40 to 65 °C (-40 to 149 °F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, PTCRB, GCF
