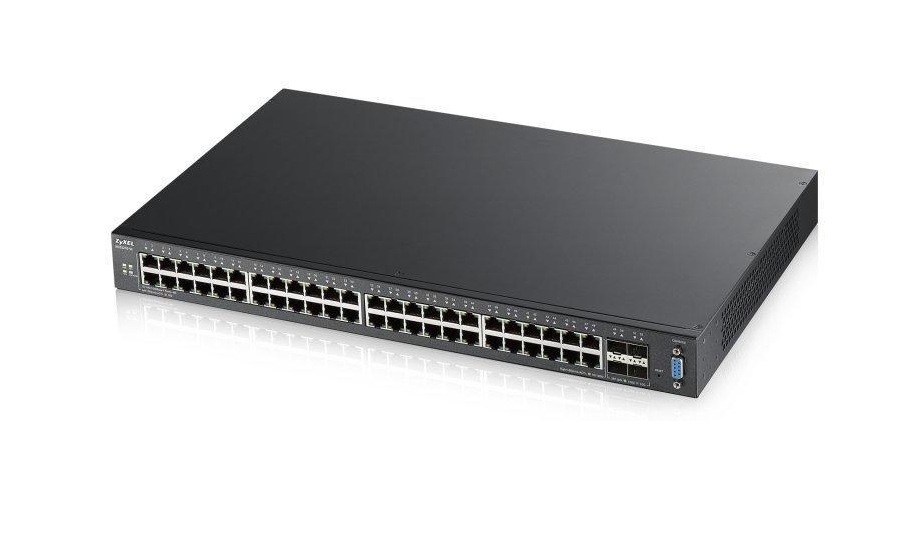

ZYXEL Switch XGS2210-52 (XGS2210-52-EU0101F)
Specificatii
Certificates
Certification
RoHS
Design
Electromagnetic compatibility
FCC 15 (A), CE (A), BSMI
Safety
LVD, BSMI
Form factor
1U
Certification
RoHS
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Multicast features
Multicast support
Yes
Operational conditions
Heat dissipation
153.3 BTU/h
Storage relative humidity (H-H)
10 – 90%
Operating temperature (T-T)
0 – 50 °C
Storage temperature (T-T)
-40 – 70 °C
Operating relative humidity (H-H)
10 – 95%
Packaging data
Package width
622 mm
Package height
108 mm
Package depth
358 mm
Package weight
4.92 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports quantity
48
SFP+ module slots quantity
4
Power over Ethernet (PoE)
No
Ungrouped
SFP+ module slots quantity
4
SFP module slots quantity
4
Installed SFP+ modules quantity
0
Extra info
LAN port type
Gigabit
Data transmission
Jumbo frames support
Yes
Number of queues
8
Jumbo frames
9000
MAC address table
16000 entries
Packet buffer memory
1.5 MB
Switching capacity
176 Gbit/s
Throughput
130.9 Mpps
Features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Certification
RoHS
Product colour
Black
Flow control support
Yes
Rate limiting
Yes
Mean time between failures (MTBF)
970594 h
Management features
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
Switch type
Managed
Traffic shaping
Yes
Switch layer
L2
ARP inspection
Yes
Network
Multicast support
Yes
IP routing
Yes
Flow control support
Yes
Rate limiting
Yes
Power over Ethernet (PoE)
No
Broadcast storm control
Yes
Spanning tree protocol
Yes
10G support
Yes
Port mirroring
Yes
VLAN support
Yes
Link aggregation
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Port-based VLAN
MAC address auto-learning supported
Yes
Packaging content
Cables included
AC
Rack mount kit
Yes
Performance
Mean time between failures (MTBF)
970594 h
Noise level
44.15 dB
Plug and Play
Yes
Power
Power over Ethernet (PoE)
No
Power consumption (max)
45 W
AC input frequency
50 – 60 Hz
AC input voltage
100 – 240 V
Security
MAC address filtering
Yes
Access Control List (ACL)
Yes
IGMP snooping
Yes
BPDU filtering/protection
Yes
SSH/SSL support
Yes
MAC address table
16000 entries
Security algorithms
802.1x RADIUS, SNMP, SSH, SSH-2
DHCP features
DHCP client
Authentication
MAC-based authentication
Weight & dimensions
Width
441 mm
Depth
270 mm
Height
45 mm
Weight
3.86 kg
