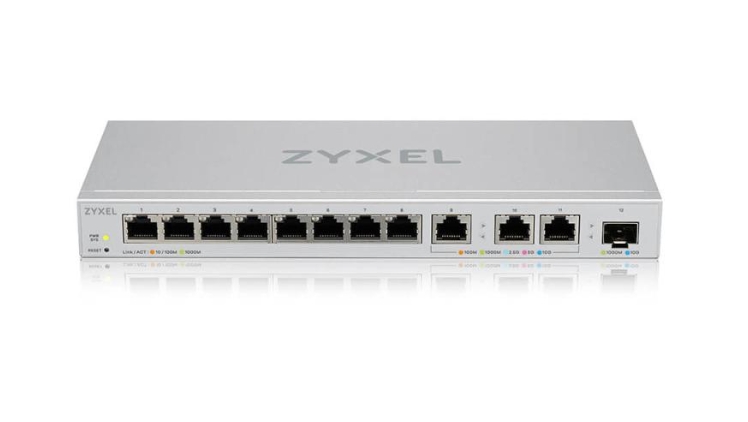

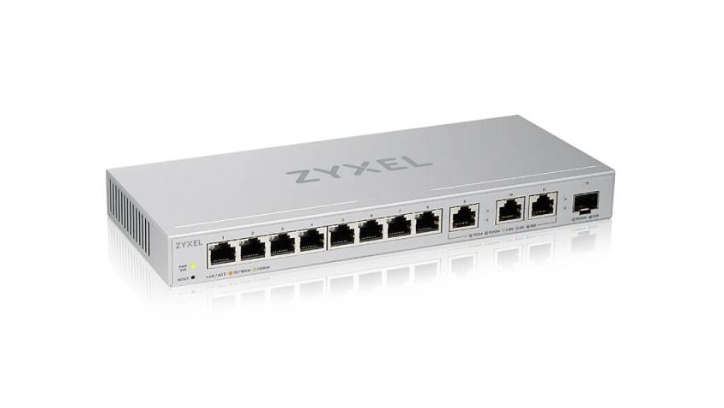

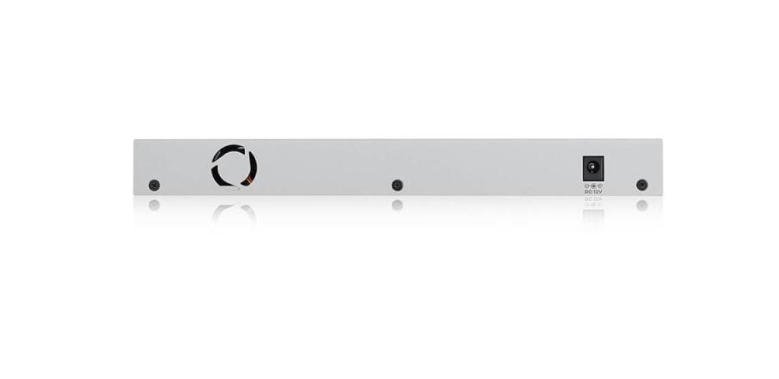

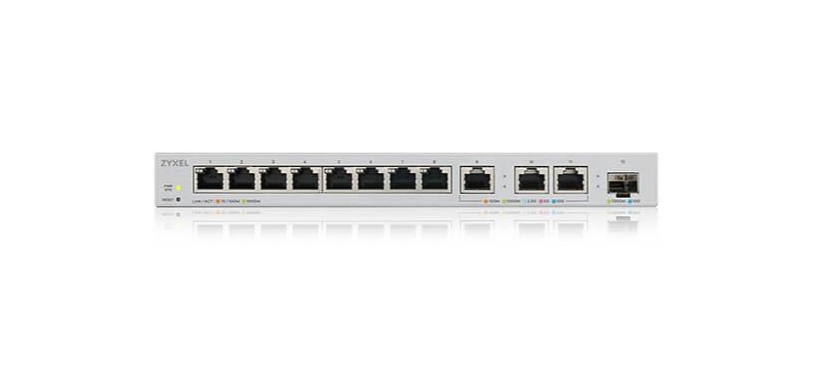

ZYXEL XGS1210-12 (XGS1250-12-ZZ0101F)
Specificatii
Data transmission
Jumbo frames support
Yes
MAC address table
16000 entries
Jumbo frames
12000
Switching capacity
96 Gbit/s
Forwarding rate
71.42 Mpps
Ethernet LAN features
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Logistics data
Harmonized System (HS) code
85176990
Multicast features
Multicast support
Yes
Operational conditions
Storage relative humidity (H-H)
10 – 90%
Operating temperature (T-T)
0 – 40 °C
Storage temperature (T-T)
-40 – 70 °C
Operating relative humidity (H-H)
10 – 90%
Power
Power over Ethernet (PoE)
No
AC input voltage
100 – 240 V
Power supply included
Yes
AC input frequency
50 – 60 Hz
Security
IGMP snooping
Yes
DHCP features
DHCP client
MAC address table
16000 entries
Weight & dimensions
Width
250 mm
Depth
104 mm
Height
27 mm
Weight
783 g
Design
LED indicators
Yes
Reset button
Yes
Features
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
LED indicators
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Flow control support
Yes
Management features
Reset button
Yes
Quality of Service (QoS) support
Yes
Web-based management
Yes
Switch type
Managed
MIB support
Y
Network
Broadcast storm control
Yes
Multicast support
Yes
Full duplex
Yes
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
Yes
Port mirroring
Yes
Auto MDI/MDI-X
Yes
Flow control support
Yes
Power over Ethernet (PoE)
No
VLAN support
Yes
Link aggregation
Yes
Ports & interfaces
SFP module slots quantity
1
Power connector
DC-in jack
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity
11
SFP+ module slots quantity
1
Power over Ethernet (PoE)
No
Ungrouped
SFP+ module slots quantity
1
SFP module slots quantity
1
Extra info
LAN-Port-Type
Gigabit
