SYN 0.88mm Narrow Bezel LCD Video Wall


digital signage equipment

Pretul afisat contine TVA (19%).

Compara

SYN 0.88mm Narrow Bezel LCD Video Wall



Certification: CE FCC ROSH CCC Panel Brand: BOE
Nannow Bezel: 3.5mm 1.7mm 0.88mm On Option Brightness: 500nits
Color: Black Material: Metal+tempered Glass
Installation: Floor Stand Bracket Or Wall Mount Or Floor Standing Cabinet Or Output: AV*1,RS-232*2
Input: HDMI*1,VGA*1,DVI*1,AV*2,RS-232*1 Warranty: 1year
Screen Size: 46 Inch
High Light: 0.88mm Narrow Bezel LCD Video Wall,

3.5mm Narrow Bezel LCD Video Wall,

Narrow Bezel LCD Splicing Screen



Product Description

46 Inch LCD Video Wall With 3.5mm 1.7mm 0.88mm Narrow bezel



Quick details:



1. BOE LG Samsung original panel on option  LCD video wall in resolution 2k 4k on option

2. Super narrow bezel of 3.5mm 1.7mm 0.88mm on option and brightness of 500nits

3. Free combination the No. of the screen according the dispaly area like  2*2, 3*3, 4*4,4*5, 6*6 etc.

4. Multi installation :wall mount  or stand on the floor, can be with floor standing cabinet or floor stand bracket with your own decoration

5. Front-maintenance bracket also on option

6. Full screen dispalying and each screen displaying different content support, also random screen combination display full screen also support

7. 1.5M length HDMI cable, 1.5M length Lan cable, 1.8M length power cable and software to be provided for free.

8. Player box Processor and matrix on option.

9. It is widely used in advertising, brand publishing, display advertising and other fields.

10. Touch screen on sales, IR touch frame size can be Customized as per request

11. Panel Size: 46″49″50″55″58″65″

12. Four installation methods : Cabinet / Floor standing / Front maintenance / Wall mount
13. Three external connections: splitter/matrix/processor



Description:

LCD splicing screen uses LED back light, so its whole light-emitting mode is more uniform, brightness and contrast are more balanced. The most important thing is that it can achieve 1920 * 1080 resolution display of single screen, and can also achieve 4K and point-to-point display at most. So we can see that the LCD splicing screen will be clearer, and the screen will not be dazzling. LCD splicing screen not only has certain advantages in the display, but also has excellent stability, rarely after-sales situation. At the same time, its panel is processed by industrial level, so it can stand continuous power on all day, which is the main reason why it entered the field of security monitoring and display at the beginning.

According to the different stitching of LCD splicing screen, its application fields mainly include security monitoring, conference, display, big data, media, advertising and other occasions. Although the resolution of full-color LED display is low, if it is viewed from a distance, the impact will be much smaller, and because it has no gap after splicing, it is widely used in advertising, brand publishing, display advertising and other fields.

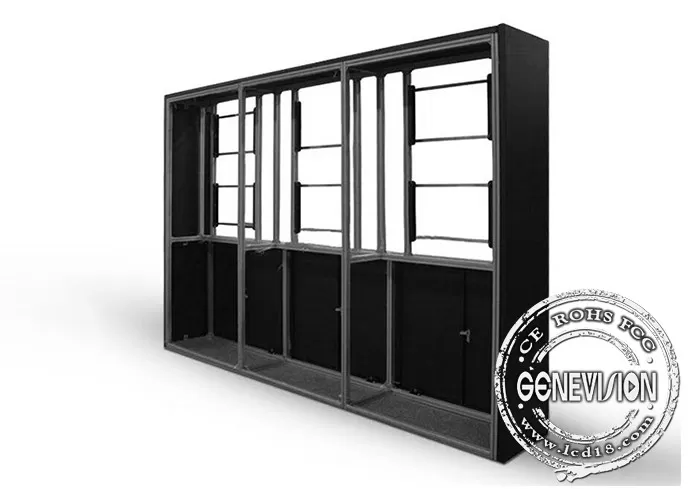

For curved video wall, the screen can also match this requirements, we will produce floorstanding cabinet bracket in curved degree. It also can be with touch frame to become interactive screen, we’re the one-stop supplier, provide the full solution, you just need to tell us what you need and when you open our package, just install them and then use it, all cables and brackets can be customized and included.

Specificaiton:

Specification MG-460 Panel Size 46″
Panel brand Original Samsung A level
Aspect Ratio 16:9
Visual Angle Horizontal 178/Vertical178
Brightness 500cd/sqm
Bezel 0.88 mm
Back light LED backlight
Contract Ratio 1200:1
Resolution Ratio 1920*1080
Color Components 16.7M
Response Time 8ms
Power Consumption 120W/150W
Standby power consumption 10W
Power Supply Input:AC110-220V-50/60Hz
Life of Panel 60000Hours
Panel Display Area 1209.6*680.4mm
Outline Dimension 1210.48 × 681.28×118.1mm
Port Input: HDMI*1,VGA*1,DVI*1,AV*2,RS-232*1,Output: AV*1,RS-232*2
IR touch frame On option
VGA/DVI Resolution Ratio 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080
HDMI Resolution Ratio 480I,480P,576I,720P,1080I,1080P
Split Screen/PIP Mode Two signals image or PIP
Splice Function Multiscreen Splice Function(image processing Function)
Carton Packing 2pc/carton, carton size: 135*34*81cm, G.W.:58kg
Wooden box packing 7pc/wooden box, wooden box size:140*128*98cm, G.W.:281kg
Bracket carton packing(for 7pc system) 146*34*25cm, G.W.:33kg





Application:



In addition to the public security and traffic police and other industries that often use monitoring and execution, some schools, hospitals, enterprises and even families and other units will use monitoring equipment. If the number of monitoring is large, the display splicing screen can be used to meet the display requirements and Exhibition shows, shopping malls, stores, etc

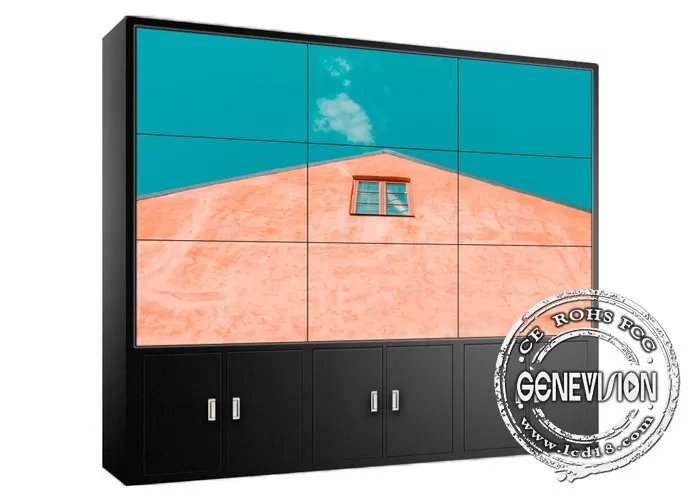

0.88mm Narrow Bezel LCD Video Wall 0

0.88mm Narrow Bezel LCD Video Wall 1

0.88mm Narrow Bezel LCD Video Wall 2
