SYN Mini PC Box Core I3 Advertising 4k Media Player Box Wifi Network White Color


digital signage equipment

Pretul afisat contine TVA (19%).

Compara

SYN Mini PC Box Core I3 Advertising 4k Media Player Box Wifi Network White Color



Network: Wifi Split Screen Display: Support
Output: VGA/HDI/AV Hot Design Power: 15W
The Core Number: Dual Core Color: Can Customized
High Light: android media player box,

wifi media player



Product Description





Mini PC Box Core I3 Advertising 4k Media Player Box Wifi Network White Color



Specification:

CPU main frequency 1.7GHz Turbo Boost 2.6Ghz
CPU slot FCBGA1168
CPU outer frequency 100MHz
CPU Frequency doubling 17 times
Micro architecture Haswell
The core code Haswell
The core number Dual core
The number of threads Four threads
Manufacturing process 22 NANO
Level 1 cache 2×32KB
Level 2 cache 2×256KB
Level 3 cache 3MB
Total line type DMI
Total line frequency 5.0GT/s
Hot design power 15W



Function parameter:



Hyper-threading technology,Virtualization technology ,64 bit technology

Multimedia instruction set:MMX,SSE,SSE2,SSE3,SSE4.1,SSE4.2,AVX

Display core model:Intel HD Graphics 4000

Fundamental frequency: 350MHz

The maximum dynamic frequency: 1050MHz



CPU interface: BGA encapsulation,Plate is stuck CPU
CPU:  i3-4010u onboard  dual core 1.7GHz CPU  smart frequency 2.6GHZ

CPU total cable( FSB ): 100MHz
Chipset: Intel HM86 Express chipset



Level 3 cache(L3 Cache): 3MB, , CPU integrated
BIOS: AMI BIOS, ACPI supported,Support power electricity boot function
System  memory     one SO-DDR3L lower power memory SDRAM memory slot, maximum to 8GB DDR SDRAM



Built-in graphics card Built-in: Intel HD Graphics4400 display core



Support CRT port: Support VGA output port  support output And can be synchronous display output



Network card: RTL 8111DL onboard  10/100/1000 BaseT LAN  can be choose super signal 150M or 300M dual wireless WIFI



Sound card: Adopt ALC662 chips ,supply sixtrack sound
SATA: one MSATA3.0 port, support 6Gb/s    one SATA3 support 6Gb/s
MINI PCIE: Two MINI PCIE port ,HD support MSATA Solid state drives half HD support MINI PCIE wireless network card
WIFI: can choose 150M WIFI or 300M WIFI The built-in module, external antenna to strengthen the signal

USB:  6*USB: 4*USB3.0; 2* USB2.0

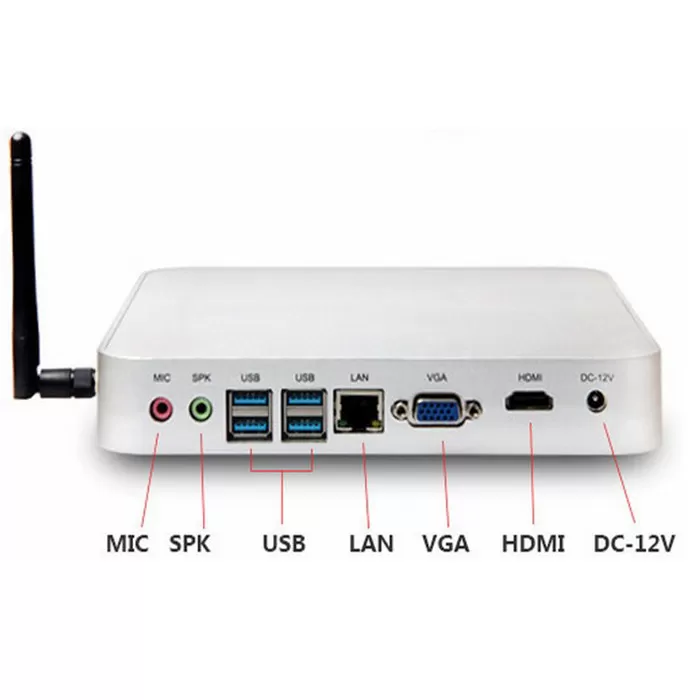

The rear panel: VGA       1*RJ-45  4 *USB ports  1*DC(in)

12V   AUDIO-OUT AUDIO-MIC
Power Supply: DC IN 12V
Dimension: 190mmx 190mmx29mm

Weight:1500g to 1650g



The advertising media player box are widely used in Bank and government agency due to low cost

and good effects at present.it is very popular in the market
