SYN Customized 55 Inch Infrared Touch Screen Frame Curved 4*8 With USB Plug And Play
Product Description
Super Big Size 397inch Curved 4*8 55inch Infrared Touch Screen Frame with USB Plug and Play, Customized Size Available
More and more video wall need to be with touch screen, so our big size touch frame is needed for such projects, we give you design how to put our touch frame around the video wall. And you need to buy some simple glass to apply in the front of video wall, also we’re willing to supply if you want to buy the glass from us together.

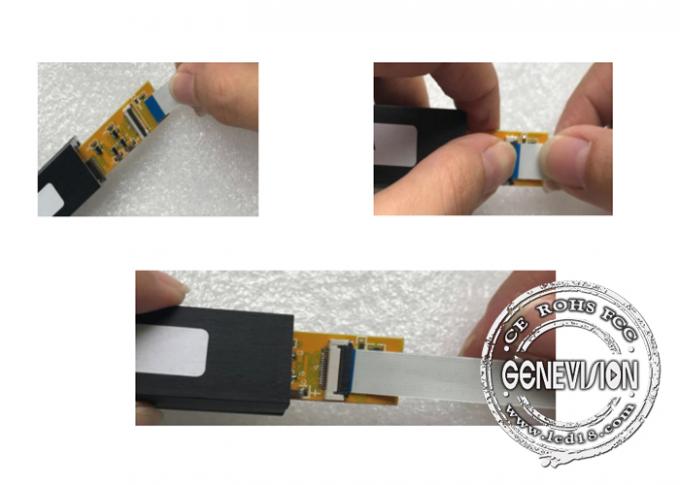

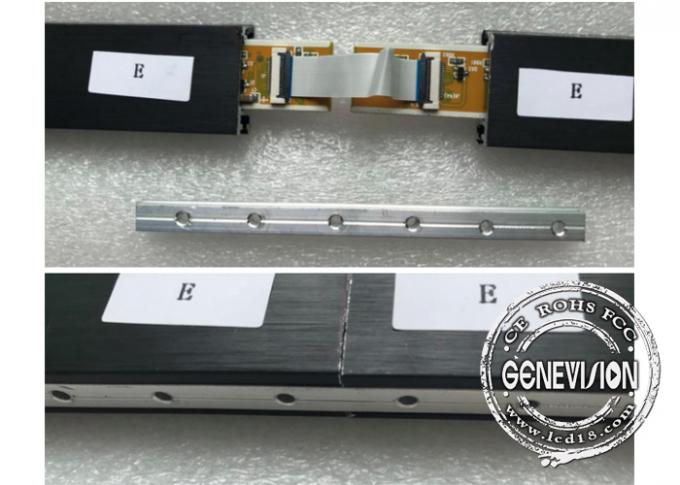

This touch frame is for curved video wall, and our touch frame should be in curved shape also. For installation, you just need to put several touch frame piece together and connect each one by pin cable inside, then it will work.
For Touch Frame/Touch Screen, customized size is welcome. Our multi-touch High performance Infrared touch frame/touch screens will be your best selection.
| Touch technology | Infrared touch |
| Touch points | 6, 10, 20, 40 touch points available |
| Touch input method | Finger, pointer, styplus pen or any other opaque objects |
| Touch interpolation | 3267*3267 |
| Respond time | 10ms |
| Touch accuracy | +-2mm over 90% area |
| Touch Durability | Unlimited |
| Available size for touch | 5mm |
| Supply Voltage | DC +5V +- 10% |
| Operating current | less 200mA for some sizes of some series, less 500mA for some sizes of some series |
| Support system | Windows, Mac, Linux, Ubuntu |
