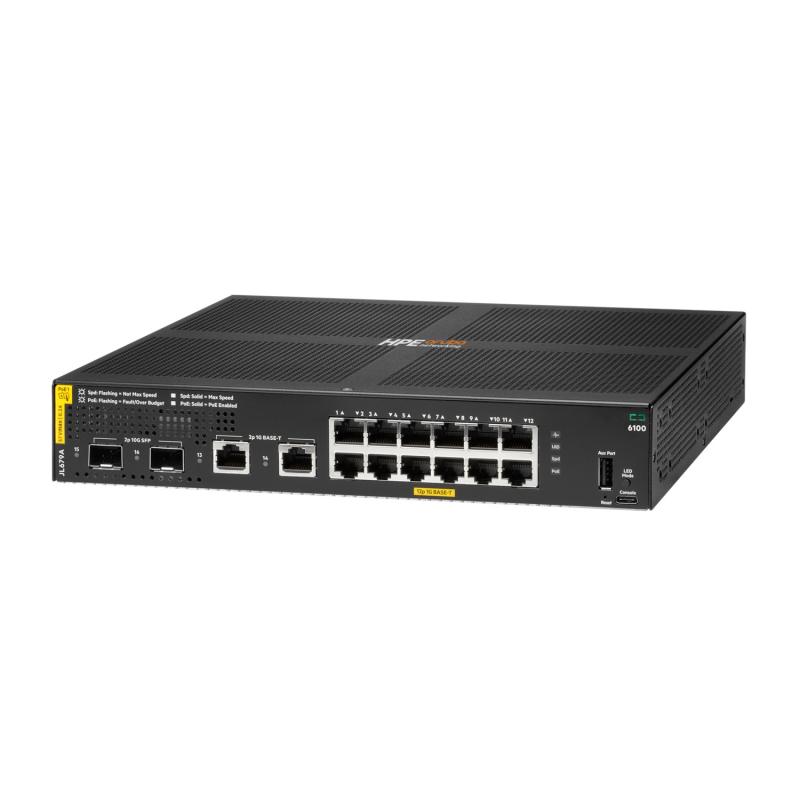

ARUBA NETWORKS HPE Aruba Networking CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)


Aruba 6100 12G CL4 2SFP+ 139W Swch

Pretul afisat contine TVA (21%).

5.880,71 lei

Lifecycle

  • Obsolete Date 31-12-2099
  • End of support date 31-12-2104

Specifications

  • Input voltage 100-127 VAC / 200-240 VAC
  • Memory and processor Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
  • Latency 1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec
  • Ports 12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports
  • Weight 2.8 kg
  • Product dimensions (metric) 4.4 x 25.4 x 25.5 cm
  • Product dimensions (imperial) 1.73 x 10.0 x 10.4 in
  • Weight 6.13 lbs
  • Switching capacity 68 Gbps
  • Throughput 45.1 Mpps
  • Warranty Limited lifetime warranty. See the warranty duration.
  • Power consumption Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
  • PoE capability 139W Class 4 PoE/PoE+

Quickspecs

Overview

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.

What’s new

  • Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
  • Silent deployment with compact and fanless 12-port PoE model.
  • Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
  • Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
  • Ready for software defined networking with REST APIs.

Features

Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.

Performance and Power
Entry Level Layer 2 Access Switches
Simplified Configuration and Management

Deploy wireless access points and IoT devices using HPE Aruba Networking CX 6100 switch models for up to 740W IEEE 802.3at Class 4 Power over Ethernet with up to 30W per port.

The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use web GUI, or industry standard CLI.

The HPE Aruba Networking CX 6100 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption.

Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).

HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.

Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.

Four built-in wire speed 1/10 GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.

Delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.

Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6.

The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.

Simplifies ownership with no switch software licensing or subscriptions required.

Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
