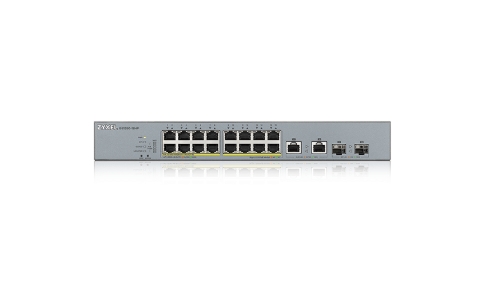

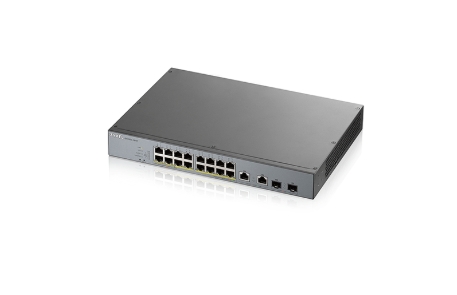

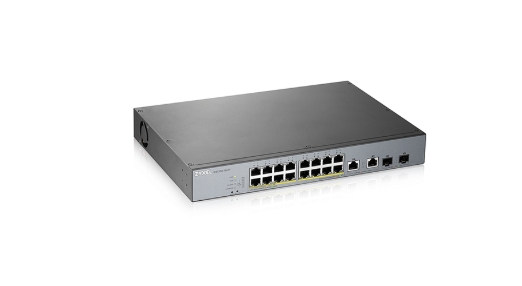

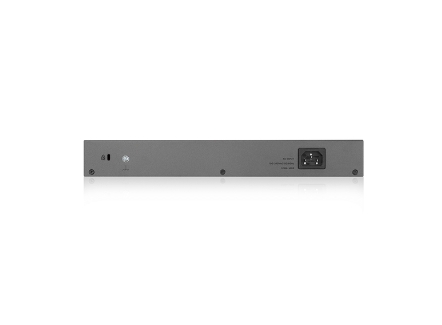

ZYXEL GS1350-18HP 16-PORT GBE POE SWITCH (GS1350-18HP-EU0101F)
Specificatii
Data transmission
MAC address table
8000 entries
Switching capacity
36 Gbit/s
Packet buffer memory
0.525 MB
Forwarding rate
26.7 Mpps
Features
Flow control support
Yes
Rate limiting
Yes
LED indicators
Yes
VLAN support
Yes
Mean time between failures (MTBF)
1699692.18 h
Management features
Firmware upgradeable
Yes
Switch layer
L2
Web-based management
Yes
System event log
Yes
Switch type
Managed
Configuring Location Settings (CLI)
Yes
Network
Multicast support
Yes
10G support
No
Broadcast storm control
Yes
Spanning tree protocol
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN
Number of VLANs
256
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Flow control support
Yes
VLAN support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Rate limiting
Yes
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Performance
Firmware upgradeable
Yes
Noise level
39 dB
Mean time between failures (MTBF)
1699692.18 h
Power
AC input voltage
100 – 240 V
Power over Ethernet (PoE)
Yes
AC input frequency
50 – 60 Hz
Power consumption (max)
300.9 W
Security
MAC address filtering
Yes
IGMP proxy
Yes
IGMP snooping
Yes
Security algorithms
SNMP, SNMPv3, SSH, SSL/TLS
Queue scheduling algorithms
SPQ, WFQ, Weighted Round Robin (WRR)
DHCP features
DHCP client, DHCP relay, DHCP snooping
Loop protection
Yes
MAC address table
8000 entries
Weight & dimensions
Depth
230 mm
Weight
2.42 kg
Width
330 mm
Height
44 mm
Design
Electromagnetic compatibility
CE, FCC, C-Tick, A; BSMI CNS13438
LED indicators
Yes
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Multicast features
Multicast support
Yes
Operational conditions
Operating temperature (T-T)
-20 – 50 °C
Storage temperature (T-T)
-40 – 70 °C
Operating relative humidity (H-H)
5 – 95%
Storage relative humidity (H-H)
5 – 95%
Heat dissipation
1026.07 BTU/h
Packaging content
Rack mount kit
Yes
Cables included
AC
Ports & interfaces
Power over Ethernet (PoE) ports quantity
16
Basic switching RJ-45 Ethernet ports quantity
16
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity
16
Total Power over Ethernet (PoE) budget
250 W
Power over Ethernet (PoE)
Yes
Ungrouped
Installed SFP+ modules quantity
0
Extra info
LAN-Port-Type
Gigabit
